FORM 160.76-RP1
ISSUE DATE: 10/9/2015
JOHNSON CONTROLS
7
Q3 - Q7 COMPRESSORS
UNIT PIPING

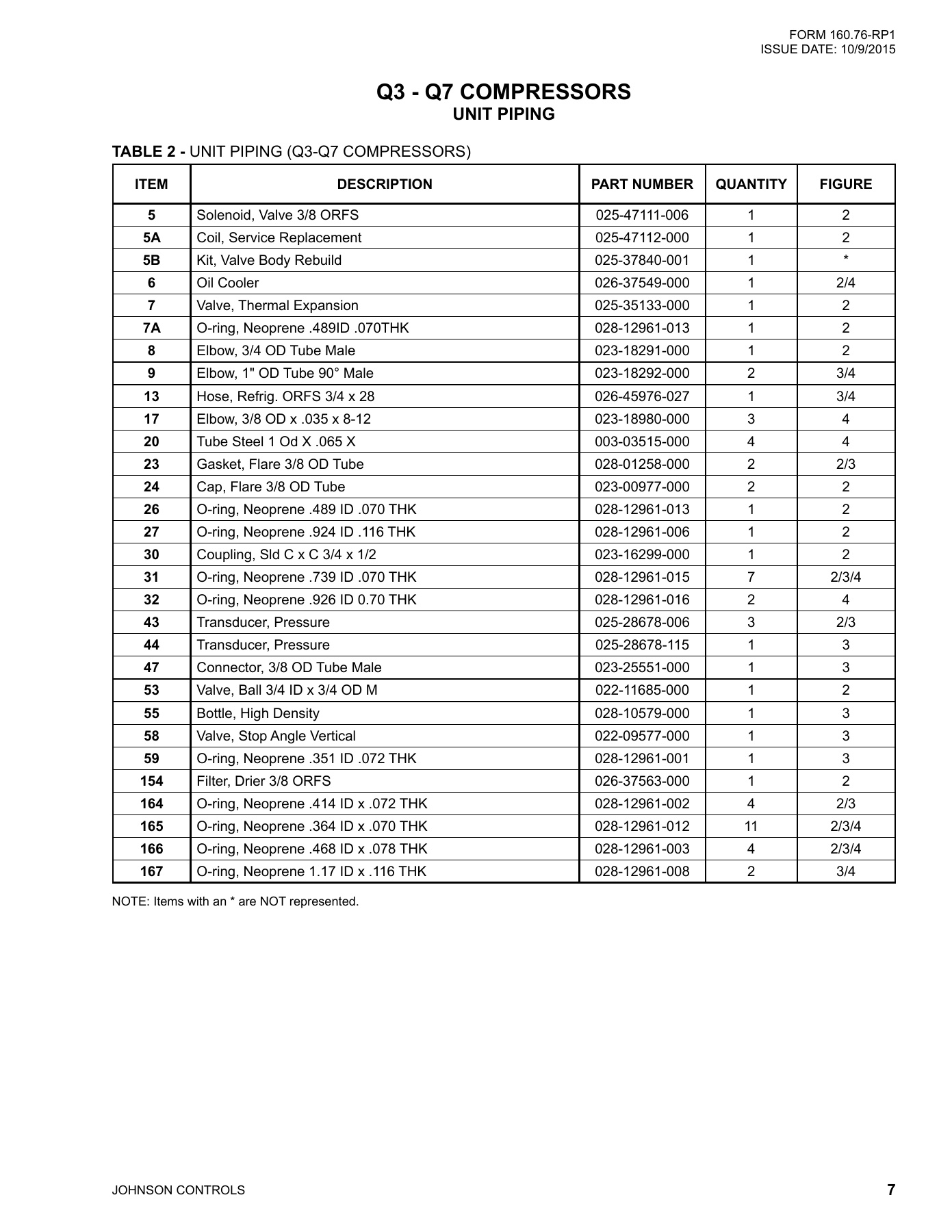

TABLE 2 -
UNIT PIPING (Q3-Q7 COMPRESSORS)
ITEM
DESCRIPTION
PART NUMBER
QUANTITY
FIGURE
5
Solenoid, Valve 3/8 ORFS
025-47111-006
1
2
5A
Coil, Service Replacement
025-47112-000
1
2
5B
Kit, Valve Body Rebuild
025-37840-001
1
*
6
Oil Cooler
026-37549-000
1
2/4
7
Valve, Thermal Expansion
025-35133-000
1
2
7A
O-ring, Neoprene .489ID .070THK
028-12961-013
1
2
8
Elbow, 3/4 OD Tube Male
023-18291-000
1
2
9
Elbow, 1" OD Tube 90° Male
023-18292-000
2
3/4
13
Hose, Refrig. ORFS 3/4 x 28
026-45976-027
1
3/4
17
Elbow, 3/8 OD x .035 x 8-12
023-18980-000
3
4
20
Tube Steel 1 Od X .065 X
003-03515-000
4
4
23
Gasket, Flare 3/8 OD Tube
028-01258-000
2
2/3
24
Cap, Flare 3/8 OD Tube
023-00977-000
2
2
26
O-ring, Neoprene .489 ID .070 THK
028-12961-013
1
2
27
O-ring, Neoprene .924 ID .116 THK
028-12961-006
1
2
30
Coupling, Sld C x C 3/4 x 1/2
023-16299-000
1
2
31
O-ring, Neoprene .739 ID .070 THK
028-12961-015
7
2/3/4
32
O-ring, Neoprene .926 ID 0.70 THK
028-12961-016
2
4
43
Transducer, Pressure
025-28678-006
3
2/3
44
Transducer, Pressure
025-28678-115
1
3
47
Connector, 3/8 OD Tube Male
023-25551-000
1
3
53
Valve, Ball 3/4 ID x 3/4 OD M
022-11685-000
1
2
55
Bottle, High Density
028-10579-000
1
3
58
Valve, Stop Angle Vertical
022-09577-000
1
3
59
O-ring, Neoprene .351 ID .072 THK
028-12961-001
1
3
154
Filter, Drier 3/8 ORFS
026-37563-000
1
2
164
O-ring, Neoprene .414 ID x .072 THK
028-12961-002
4
2/3
165
O-ring, Neoprene .364 ID x .070 THK
028-12961-012
11
2/3/4
166
O-ring, Neoprene .468 ID x .078 THK
028-12961-003
4
2/3/4
167
O-ring, Neoprene 1.17 ID x .116 THK
028-12961-008
2
3/4
NOTE: Items with an * are NOT represented.
