JOHNSON CONTROLS
7
FORM 160.75-RP2
ISSUE DATE: 4/20/2018
K1 COMPRESSOR
K1

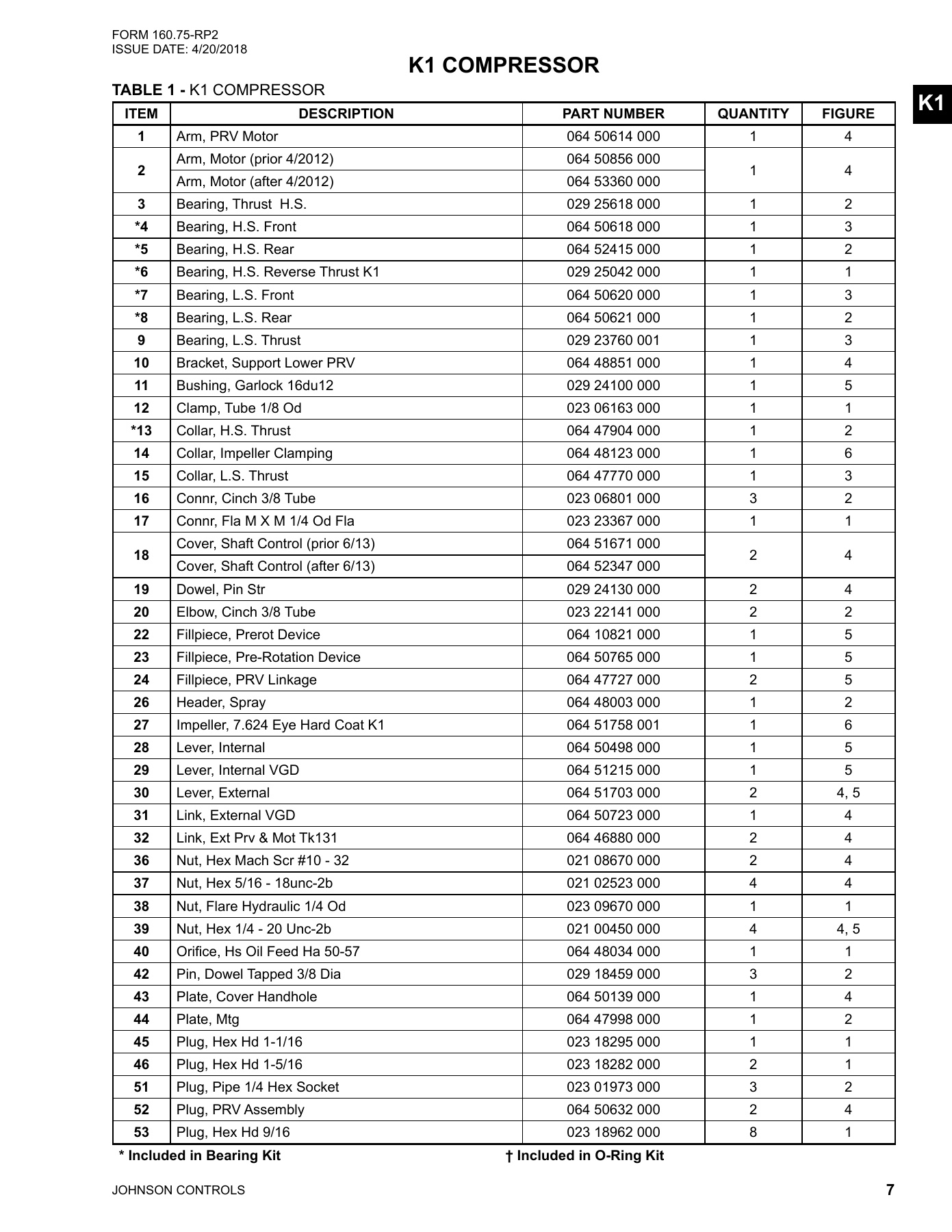

TABLE 1 -
K1 COMPRESSOR
ITEM
DESCRIPTION
PART NUMBER
QUANTITY
FIGURE
1
Arm, PRV Motor
064 50614 000
1
4
2
Arm, Motor (prior 4/2012)
064 50856 000
1
4
Arm, Motor (after 4/2012)
064 53360 000
3
Bearing, Thrust H.S.
029 25618 000
1
2
*4
Bearing, H.S. Front
064 50618 000
1
3
*5
Bearing, H.S. Rear
064 52415 000
1
2
*6
Bearing, H.S. Reverse Thrust K1
029 25042 000
1
1
*7
Bearing, L.S. Front
064 50620 000
1
3
*8
Bearing, L.S. Rear
064 50621 000
1
2
9
Bearing, L.S. Thrust
029 23760 001
1
3
10
Bracket, Support Lower PRV
064 48851 000
1
4
11
Bushing, Garlock 16du12
029 24100 000
1
5
12
Clamp, Tube 1/8 Od
023 06163 000
1
1
*13
Collar, H.S. Thrust
064 47904 000
1
2
14
Collar, Impeller Clamping
064 48123 000
1
6
15
Collar, L.S. Thrust
064 47770 000
1
3
16
Connr, Cinch 3/8 Tube
023 06801 000
3
2
17
Connr, Fla M X M 1/4 Od Fla
023 23367 000
1
1
18
Cover, Shaft Control (prior 6/13)
064 51671 000
2
4
Cover, Shaft Control (after 6/13)
064 52347 000
19
Dowel, Pin Str
029 24130 000
2
4
20
Elbow, Cinch 3/8 Tube
023 22141 000
2
2
22
Fillpiece, Prerot Device
064 10821 000
1
5
23
Fillpiece, Pre-Rotation Device
064 50765 000
1
5
24
Fillpiece, PRV Linkage
064 47727 000
2
5
26
Header, Spray
064 48003 000
1
2
27
Impeller, 7.624 Eye Hard Coat K1
064 51758 001
1
6
28
Lever, Internal
064 50498 000
1
5
29
Lever, Internal VGD
064 51215 000
1
5
30
Lever, External
064 51703 000
2
4, 5
31
Link, External VGD
064 50723 000
1
4
32
Link, Ext Prv & Mot Tk131
064 46880 000
2
4
36
Nut, Hex Mach Scr #10 - 32
021 08670 000
2
4
37
Nut, Hex 5/16 - 18unc-2b
021 02523 000
4
4
38
Nut, Flare Hydraulic 1/4 Od
023 09670 000
1
1
39
Nut, Hex 1/4 - 20 Unc-2b
021 00450 000
4
4, 5
40
Orifice, Hs Oil Feed Ha 50-57
064 48034 000
1
1
42
Pin, Dowel Tapped 3/8 Dia
029 18459 000
3
2
43
Plate, Cover Handhole
064 50139 000
1
4
44
Plate, Mtg
064 47998 000
1
2
45
Plug, Hex Hd 1-1/16
023 18295 000
1
1
46
Plug, Hex Hd 1-5/16
023 18282 000
2
1
51
Plug, Pipe 1/4 Hex Socket
023 01973 000
3
2
52
Plug, PRV Assembly
064 50632 000
2
4
53
Plug, Hex Hd 9/16
023 18962 000
8
1
* Included in Bearing Kit
† Included in O-Ring Kit
