YORK INTERNATIONAL
6

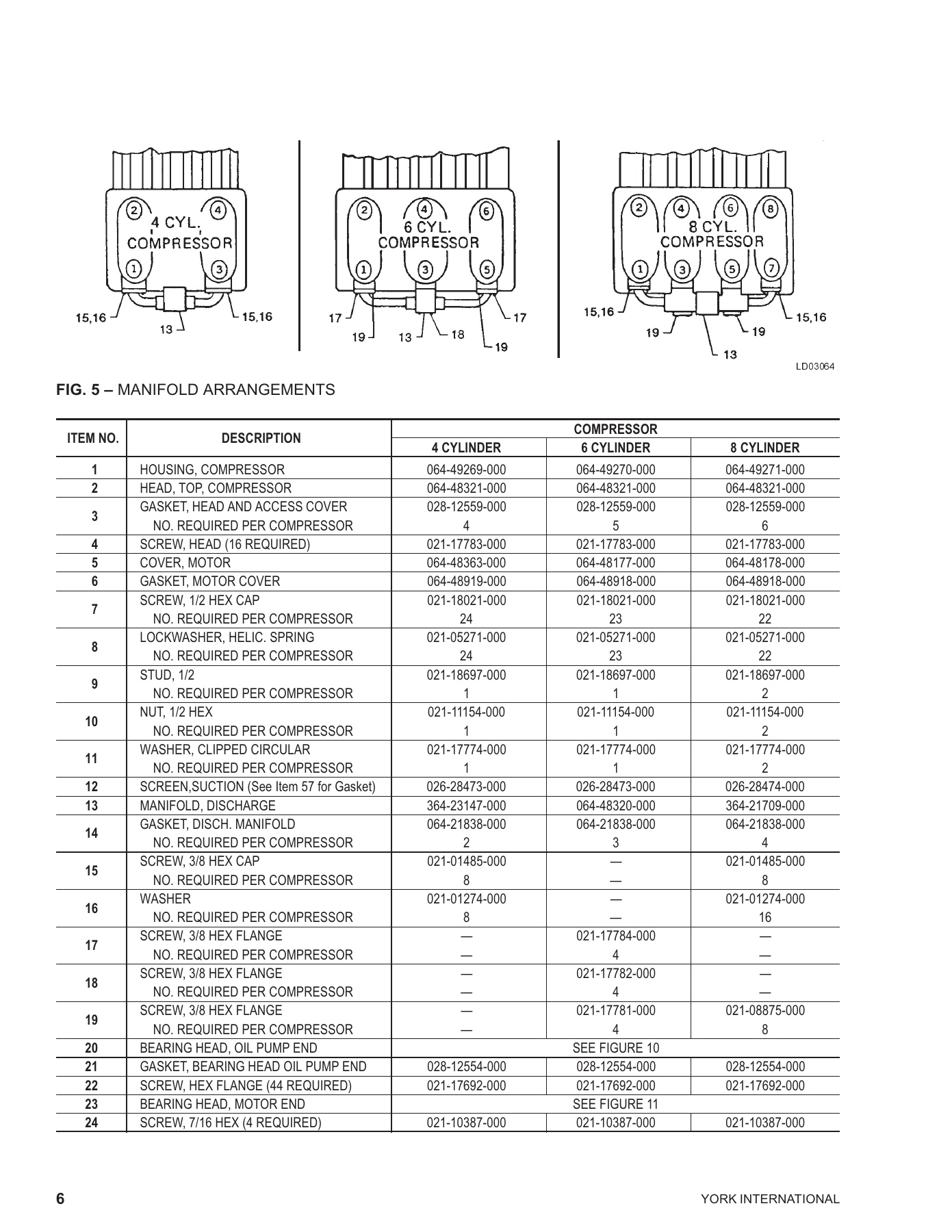

FIG. 5
MANIFOLD ARRANGEMENTS
COMPRESSOR
ITEM NO.
DESCRIPTION
4 CYLINDER
6 CYLINDER
8 CYLINDER
1
HOUSING, COMPRESSOR
064-49269-000
064-49270-000
064-49271-000
2
HEAD, TOP, COMPRESSOR
064-48321-000
064-48321-000
064-48321-000
3
GASKET, HEAD AND ACCESS COVER
028-12559-000
028-12559-000
028-12559-000
NO. REQUIRED PER COMPRESSOR
4
5
6
4
SCREW, HEAD (16 REQUIRED)
021-17783-000
021-17783-000
021-17783-000
5
COVER, MOTOR
064-48363-000
064-48177-000
064-48178-000
6
GASKET, MOTOR COVER
064-48919-000
064-48918-000
064-48918-000
7
SCREW, 1/2 HEX CAP
021-18021-000
021-18021-000
021-18021-000
NO. REQUIRED PER COMPRESSOR
24
23
22
8
LOCKWASHER, HELIC. SPRING
021-05271-000
021-05271-000
021-05271-000
NO. REQUIRED PER COMPRESSOR
24
23
22
9
STUD, 1/2
021-18697-000
021-18697-000
021-18697-000
NO. REQUIRED PER COMPRESSOR
1
1
2
10
NUT, 1/2 HEX
021-11154-000
021-11154-000
021-11154-000
NO. REQUIRED PER COMPRESSOR
1
1
2
11
WASHER, CLIPPED CIRCULAR
021-17774-000
021-17774-000
021-17774-000
NO. REQUIRED PER COMPRESSOR
1
1
2
12
SCREEN,SUCTION (See Item 57 for Gasket)
026-28473-000
026-28473-000
026-28474-000
13
MANIFOLD, DISCHARGE
364-23147-000
064-48320-000
364-21709-000
14
GASKET, DISCH. MANIFOLD
064-21838-000
064-21838-000
064-21838-000
NO. REQUIRED PER COMPRESSOR
2
3
4
15
SCREW, 3/8 HEX CAP
021-01485-000
021-01485-000
NO. REQUIRED PER COMPRESSOR
8
8
16
WASHER
021-01274-000
021-01274-000
NO. REQUIRED PER COMPRESSOR
8
16
17
SCREW, 3/8 HEX FLANGE
021-17784-000
NO. REQUIRED PER COMPRESSOR
4
18
SCREW, 3/8 HEX FLANGE
021-17782-000
NO. REQUIRED PER COMPRESSOR
4
19
SCREW, 3/8 HEX FLANGE
021-17781-000
021-08875-000
NO. REQUIRED PER COMPRESSOR
4
8
20
BEARING HEAD, OIL PUMP END
SEE FIGURE 10
21
GASKET, BEARING HEAD OIL PUMP END
028-12554-000
028-12554-000
028-12554-000
22
SCREW, HEX FLANGE (44 REQUIRED)
021-17692-000
021-17692-000
021-17692-000
23
BEARING HEAD, MOTOR END
SEE FIGURE 11
24
SCREW, 7/16 HEX (4 REQUIRED)
021-10387-000
021-10387-000
021-10387-000
LD03064
