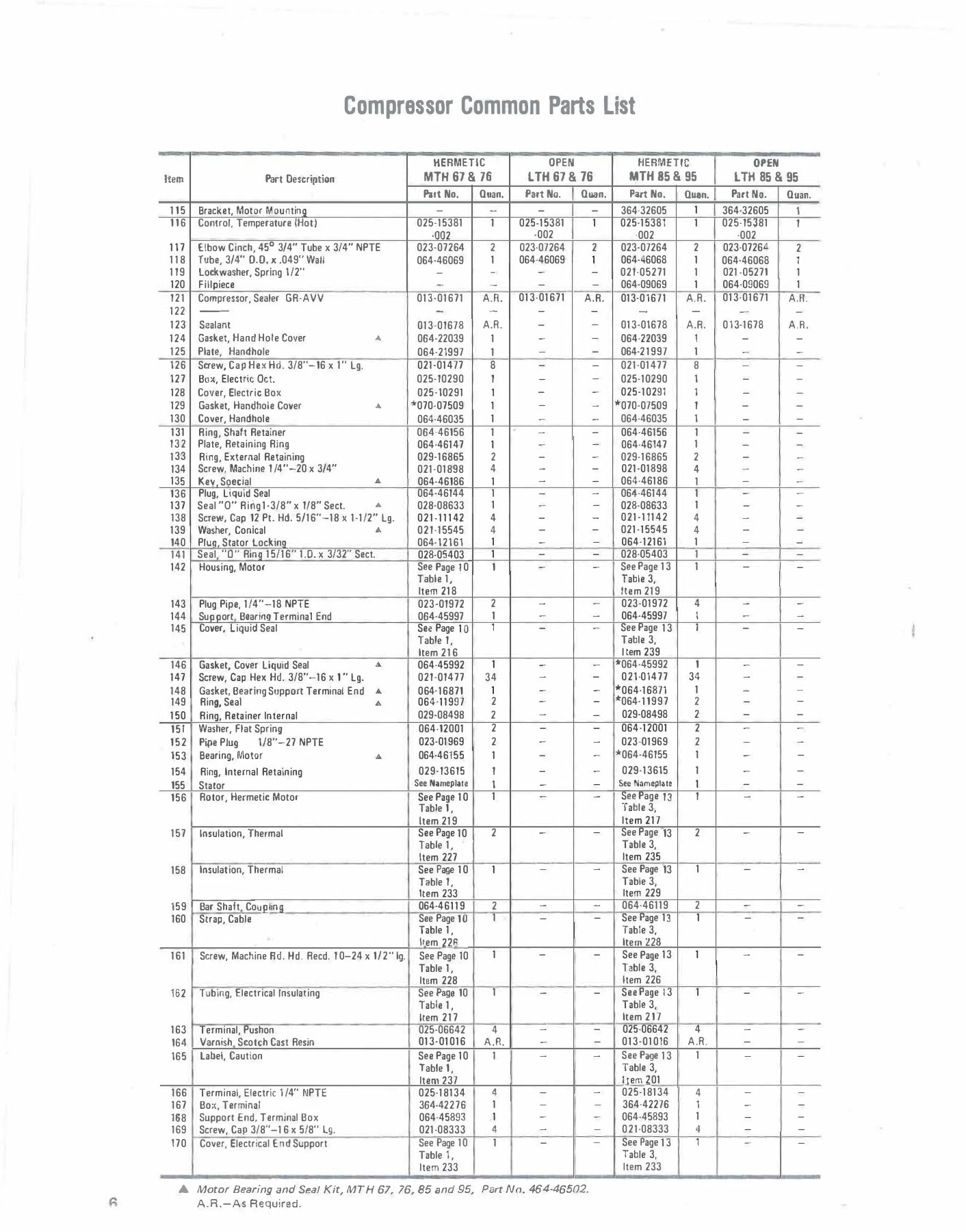

COMPRESSOR COMMON PARTS UST
C)
Item
Description
Quan.
Part No.
Item
Description
Quan.
Part No.
1 Eliminator, Oil
1
364-28144
43 Screw, Cap 12 Pt. Hd. 5/16-18 UNC-3A X 1 Lg.
6
021-12039
2 Screw, Cap 12 Pt. Hd. 5/8-11 UNC x 2
60
021-11971
44 Washer, 11/32 I.D. X 11/16 O.D. X .065 Th.
12
021-05166
3 Tube, 1/4 O.D. X .049 W X 27-1/16 Lg.
1
067-91500
45 Pin, Insert, 1/4 Dia. X 5/8 Lg.
6
029-03989
4 Elbow, 90
°
, 1/8 MPT X 1/4 Tube
2
023-09677
46 Ring, Retaining
1
029-10336
5 Screw Mach. Rd. Hd. Recd. #10-24 UNC X 1/2 Lg.
3
021-02459
47 Washer, Flat Spring
1
064-31191
6
48 Ring, Seal, Balance Piston
1
064-31189
7
49
Ring, Retaining
1
029-13854
8
*50 Bearing, Main (Pinion)
1
064-31190t
9 Nipple Pipe, 3/4 O.D. x Sch. 80 x 5" Lg.
1
070-08870
*51 Bearing, Thrust & Journal (Pinion)
1
064-21188+
10 Collar, Imp. Clamping
1
064-24116
*52 Cover, Thrust
1
064-46415
11 Screw Cap 12 Pt. Hd. 1/2-20 UNF-3A X 3 Lg.
3
021-11515
See Data
12 Seal "O" ring. 176 I.D. x .070 Sect.
1
028-10156
53 Gear & Pinion
1
Nameplate
13 Screw Cap 12 Pt. Hd. 5/8-11 UNC-3A X 1-7/8 Lg.
30
021-11146
54 Valve, Stop Angle 1/4 FLAX 1/4 NPTE
1
022-05260
14 Compound Sealer
A.R. 013-01671
55 Plug, Sight
2
026-16556
15 lockwasher, Spg. 3/8
2
021-05291
56 Screw, Cap 12 Pt. Hd. 5/16-18 UNC X 1-1/4 lg.
28
021-14440
16 Screw Cap 12 Pt. Hd. 3/8-16 UNC-3A X 1-1/4 Lg.
24
021-11141
57 Shaft, Drive
1
064-46428
17 Shaft Control PRV
1
029-13581
*58 "O" Ring, 2-3/8 O.D. X 2-1/8 I.D. X 1/8 Sect.
1
028-04478
18 Cover, Shaft Control
1
064-13909
*59 Bearing, Thrust & Journal (Gear)
1
064-23741
19 Gasket, 2-1/2 O.D. X 2 I.D. X 1/16 Thk.
1
028-00781
60
20 "O" Ring, 1-3/8 O.D. X 1-1/8 I.D. X 1/8 Sect.
2
028-04353
61 Collar, Thrust, Front (Gear)
1
064-23125
21 "O" Ring, 1-1/4 O.D. X 1" I.D. X 1/8 Sect.
1
028-04522
62 Collar, Thrust, Rear (Gear)
1
064-24126
22 Lever, PRV Device Int.
1
364-23745
*63 Bearing, Thrust (Gear)
1
064-23127
23 Seal "O" ring 5. 340 x .070 Sect.
1
028-10157
*64 Bearing, Rear (Gear)
1
064-24105
*24 Pin, Insert 1/8 Dia. X 9/16 lg.
2
029-03990
65 Ring, Retaining
1
029-08780
25 Washer, Spl. 1-3/4 Dia. X 1/2 lg.
1
064-08815
66 Collar, Shaft Seal
1
064-16649-011
26 Screw, Cap 12 Pt. Hd. 1/2-20 UNF-3A X 6 lg.
1
021-11998
67 Carbon, Shaft Seal
1
064-16651-011
27 Bearing, Rod End Spher.
2
029-08343
68 Ring, Shaft Seal
1
064-16650-011
28 Fillpiece, 3/4 Dia. X 1/4 Lg.
1
064-10821
69 Spring, Helical
1
029-09095
29 Fillpiece, 3/4 Dia. X 23/32 Lg.
1
064-09288
70 "O" Ring, 3" O.D. X 2-5/8 1.D. X 3/16 Sect.
2
028-05194
30 Nut, Hex Reg. 3/8-24 UNF-2B
3
021-00474
71
31 Screw Cap, 12 Pt. Hd. 3/8-24 UNF-3A X 1-1/2 lg.
1
021-11720
72 Cover, Shaft Seal
1
064-22975
32 Screw Cap Hex Hd. 1/2-13 UNC-2A X 1-1/4 Lg.
2
021-01567
73 Ell, Cinch 45
°
3/4 Tube X 3/4 NPTE
1
023-11584
33 Screw, 3/8-24 UNF X 2-1/2 lg.
1
064-09287
74 Guard, Coupling (Half)
1
064-95022-002
34 Rod, Adjustable
1
064-23117
See Fig. 11
35 Screw Cap 12 Pt. Hd. 3/8-16 UNC-3A X 1-1/2 lg.
2
021-11175
75 Coupling, 1-7/8
1
064-95022-001
36 Screw, Cap Hex. 1/4-20 UNC X 3/4
2
021-01379
See Fig. 10
37 Nut, Hex 1/4-20 UNC
2
021-00574
76 Tube 5/8 O.D. X .049 Wall X 16 lg.
1
064-31776
38
77 Screw Cap 12 Pt. Hd. 3/8-24 UNF-3A x 2-1/4 Lg.
12
021-11956
*39 Gasket, PRV Hsg. to Scroll
1
064-24118
78 Plug, Pipe Hex Soc. Csk. 3/8
3
023-04298
40 "O" Ring, 30.969
I.D. X
.275
1
028-09489
*79 "O" Ring, 7/8 O.D. X 11/16 I.D. X 3/32 Sect.
1
028-05404
*41 Gasket, Rotor Supp. to Bearing Housing
1
064-24120
80 Pin, Dowel, Str. 1/2 Dia. X 2 Lg.
3
029-10646
*42 Plug, Pipe 1 /16- 27 NPT
1
023-05366-000
81 Nameplate, Rotation
1
029-00334
A.R. - As required
*Parts Included Field Kit-364-46724
