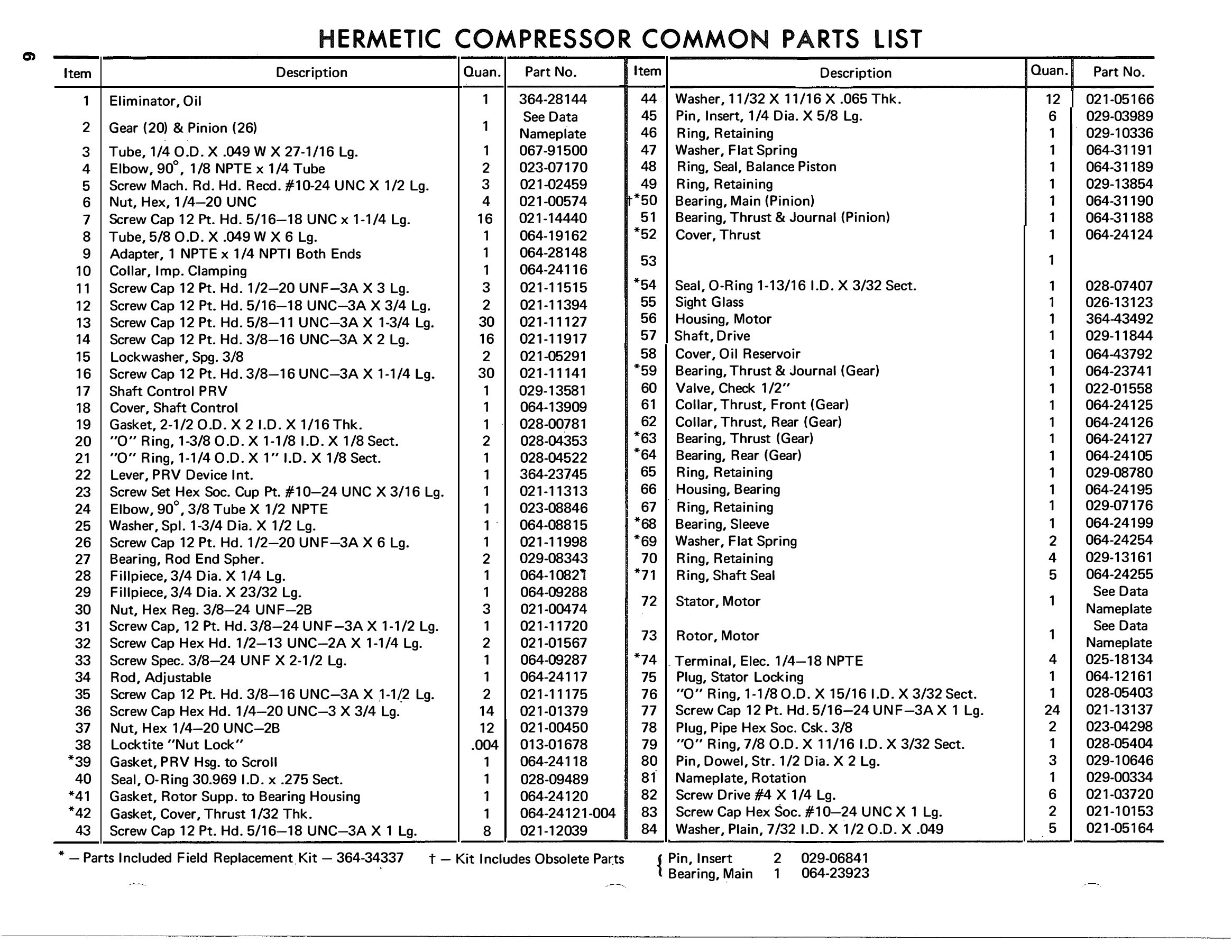

HERMETIC COMPRESSOR COMMON PARTS LIST
Item
Description
Quan.
Part No.
1 Eliminator, Oil
1
364-28144
2 Gear (20)
&
Pinion (26)
1
See Data
Nameplate
3 Tube, 1/4 O.D. X .049 W X 27-1/16 Lg.
1
067-91500
4 Elbow, 90
°
, 1 /8 NPTE x 1 /4 Tube
2
023-07170
5 Screw Mach. Rd. Hd. Recd. #10-24 UNC X 1/2 Lg.
3
021-02459
6 Nut, Hex, 1 /4-20 UNC
4
021-00574
7 Screw Cap 12
Pt.
Hd. 5/16-18 UNC x 1-1 /4 Lg.
16
021-14440
8 Tube, 5/8 O.D. X .049 W X 6 Lg.
1
064-19162
9 Adapter, 1 NPTE x 1 /4 NPTI Both Ends
1
064-28148
10 Collar, Imp. Clamping
1
064-24116
11 Screw Cap 12
Pt.
Hd. 1/2-20 UNF-3A X 3 Lg.
3
021-11515
12 Screw Cap 12 Pt. Hd. 5/16-18 UNC-3A X 3/4 Lg.
2
021-11394
13 Screw Cap 12 Pt. Hd. 5/8-11 UNC-3A X 1-3/4 Lg.
30
021-11127
14
Screw Cap 12 Pt. Hd. 3/8-16 UNC-3A X 2 Lg.
16
021-11917
15
Lockwasher, Spg. 3/8
2
021-05291
16 Screw Cap 12
Pt.
Hd. 3/8-16 UNC-3A X 1-1/4 Lg.
30
021-11141
17 Shaft Control PRV
1
029-13581
18
Cover, Shaft Control
1
064-13909
19 Gasket, 2-1/2 O.D. X 2 1.D. X 1/16 Thk.
1
028-00781
20 "O" Ring, 1-3/8 O.D. X 1-1/8 I.D. X 1/8 Sect.
2
028-04353
21 "O" Ring, 1-1/4 O.D. X 1" 1.D. X 1/8 Sect.
1
028-04522
22
Lever, PRV Device Int.
1
364-23745
23 Screw Set Hex Soc. Cup Pt. #10-24 UNC X 3/16 Lg.
1
021-11313
24 Elbow,90
°
,3/8 TubeX 1/2 NPTE
1
023-08846
25 Washer, Spl. 1-3/4 Dia. X 1/2 Lg.
1
064-08815
26 Screw Cap 12 Pt. Hd. 1/2-20 UNF-3A X 6 Lg.
1
021-11998
27 Bearing, Rod End Spher.
2
029-08343
28 Fillpiece, 3/4 Dia. X 1/4 Lg.
1
064-10821
29 Fillpiece, 3/4 Dia. X 23/32 Lg.
1
064-09288
30
Nut, Hex Reg. 3/8-24 UNF-2B
3
021-00474
31 Screw Cap, 12
Pt.
Hd. 3/8-24 UNF-3A X 1-1/2 Lg.
1
021-11720
32 Screw Cap Hex Hd. 1/2-13 UNC-2A X 1-1/4 Lg.
2
021-01567
33 Screw Spec. 3/8-24 UNF X 2-1/2 Lg.
1
064-09287
34 Rod, Adjustable
1
064-24117
35 Screw Cap 12 Pt. Hd. 3/8-16 UNC-3A X �-1f2 Lg.
2
021-11175
36 Screw Cap Hex Hd. 1/4-20 UNC-3 X 3/4 Lg.
14
021-01379
37 Nut, Hex 1/4-20 UNC-2B
12
021-00450
38
Locktite "Nut Lock"
.004
013-01678
*39 Gasket, PRV Hsg. to Scroll
1
064-24118
40
Seal, O-Ring 30.969 I.D. x .275 Sect.
1
028-09489
*41 Gasket, Rotor Supp. to Bearing Housing
1
064-24120
*42 Gasket, Cover, Thrust 1/32 Thk.
1
064-24121-004
43
Screw Cap 12 Pt. Hd. 5/16-18 UNC-3A X 1 Lg.
8
021-12039
* - Parts Included Field Replacement Kit - 364-34337
t - Kit Includes Obsolete Par:ts
Item
Description
44 Washer, 11/32 X 11/16 X .065 Thk.
45 Pin, Insert, 1/4 Dia. X 5/8 Lg.
46 Ring, Retaining
47 Washer, Flat Spring
48
Ring, Seal, Balance Piston
49 Ring, Retaining
*50 Bearing, Main (Pinion)
51 Bearing, Thrust
&
Journal (Pinion)
*52 Cover, Thrust
53
*54 Seal, O-Ring 1-13/16 I.D. X 3/32 Sect.
55 Sight Glass
56
Housing, Motor
57 Shaft, Drive
58 Cover, Oil Reservoir
*59 Bearing, Thrust
&
Journal (Gear)
60
Valve, Check 1 /2"
61 Collar, Thrust, Front (Gear)
62 Collar, Thrust, Rear (Gear)
*63
Bearing, Thrust (Gear)
*64 Bearing, Rear (Gear)
65 Ring, Retaining
66
Housing, Bearing
67 Ring, Retaining
*68 Bearing, Sleeve
*69 Washer, Flat Spring
70 Ring, Retaining
*71 Ring, Shaft Seal
72 Stator, Motor
73 Rotor, Motor
*74 . Terminal, Elec. 1/4-18 NPTE
75
Plug, Stator Locking
76 "O" Ring, 1-1/8 O.D. X 15/16 I.D. X 3/32 Sect.
77 Screw Cap 12 Pt. Hd. 5/16-24 UNF-3A X 1 Lg.
78 Plug, Pipe Hex Soc. Csk. 3/8
79 "O" Ring, 7/8 O.D. X 11/16 I.D. X 3/32 Sect.
80 Pin, Dowel, Str. 1/2 Dia. X 2 Lg.
81 Nameplate, Rotation
82 Screw Drive #4 X 1 /4 Lg.
83 Screw Cap Hex Soc. #10-24 UNC X 1 Lg.
84 Washer, Plain, 7/32 I.D. X 1/2 O.D. X .049
{ Pin, Insert
Bearing, Main
2 029-06841
1
064-23923
Quan.
Part No.
12
021-05166
6
029-03989
1
029-10336
1
064-31191
1
064-31189
1
029-13854
1
064-31190
1
064-31188
1
064-24124
1
1
028-07407
1
026-13123
1
364-43492
1
029-11844
1
064-43792
1
064-23741
1
022-01558
1
064-24125
1
064-24126
1
064-24127
1
064-24105
1
029-08780
1
064-24195
1
029-07176
1
064-24199
2
064-24254
4
029-13161
5
064-24255
See Data
1
Nameplate
1
See Data
Nameplate
4
025-18134
1
064-12161
1
028-05403
24
021-13137
2
023-04298
1
028-05404
3
029-10646
1
029-00334
6
021-03720
2
021-10153
5
021-05164
