FORM 180.23-RP5

5

YORK INTERNATIONAL

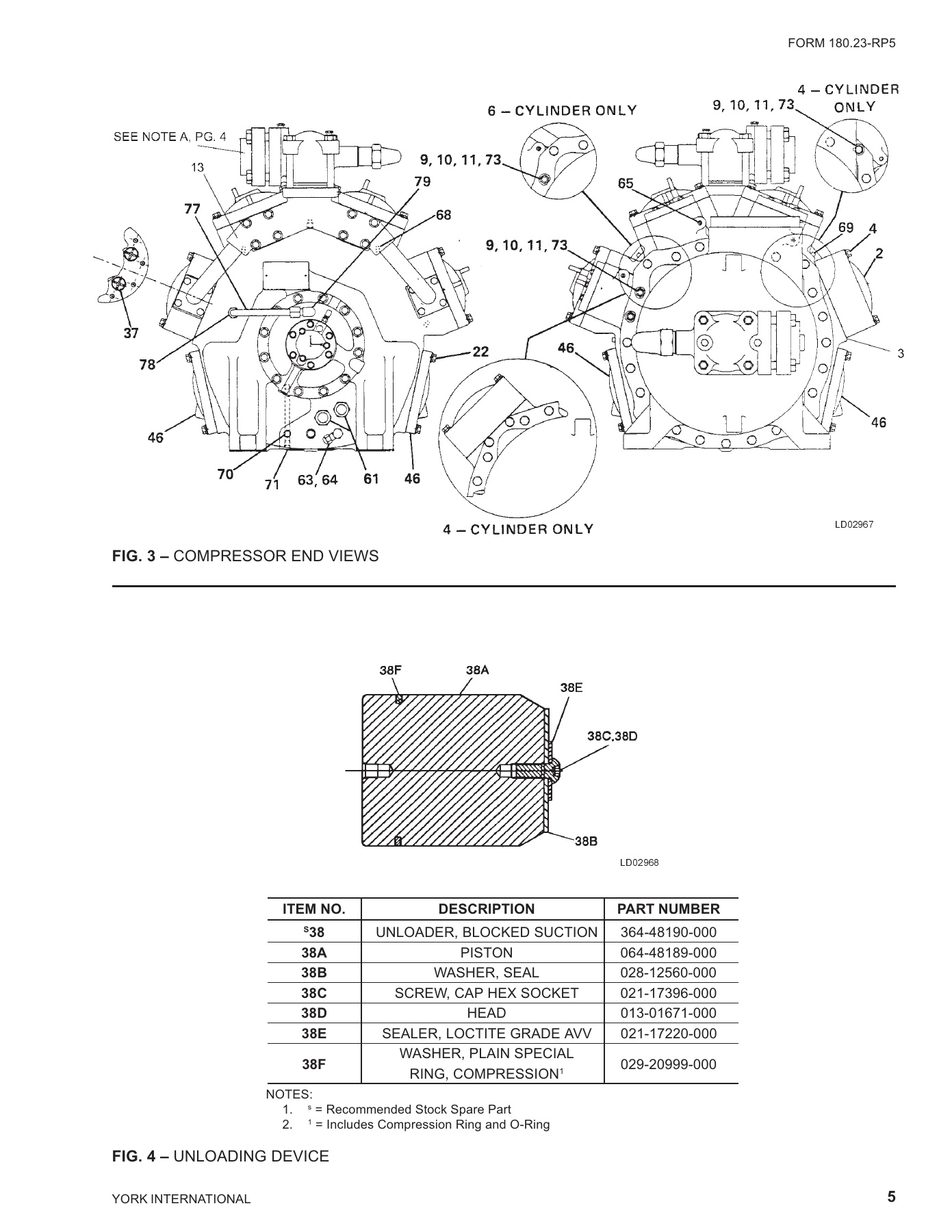

FIG. 3 –

COMPRESSOR END VIEWS

LD02967

LD02968

FIG. 4 –

UNLOADING DEVICE

ITEM NO.

DESCRIPTION

PART NUMBER

S

38

UNLOADER, BLOCKED SUCTION

364-48190-000

38A

PISTON

064-48189-000

38B

WASHER, SEAL

028-12560-000

38C

SCREW, CAP HEX SOCKET

021-17396-000

38D

HEAD

013-01671-000

38E

SEALER, LOCTITE GRADE AVV

021-17220-000

WASHER, PLAIN SPECIAL

38F

RING, COMPRESSION

1

029-20999-000

NOTES:

1.

s

 = Recommended Stock Spare Part

2.

1

 = Includes Compression Ring and O-Ring
