FORM 180.23-RP4

YORK INTERNATIONAL

5

ITEM

DESCRIPTION

COMPRESSOR

NO.

4 CYLINDER

6 CYLINDER

8 CYLINDER

23

Head, Bearing Assembly Motor End

See Figure 9

24

Screw, 7/16 Hex

021-10387-000

021-10387-000

021-10387-000

No. Required Per Compressor

4

4

4

25

Pump, Oil

665-25326-000

665-25326-000

665-25326-000

26

Gasket, Oil Pump

028-12556-000

028-12556-000

028-12556-000

27

Screw, Hex Flange

021-17689-000

021-17689-000

021-17689-000

No. Required Per Compressor

6

6

6

28

Crankshaft

Stroke 3

664-47209-000

664-47210-000

664-47211-000

Stroke 4

664-47215-000

664-47216-000

664-47217-000

29

Washer, Thrust*

029-11098-000

029-11098-000

029-11098-000

30

Motor

See Table 2

31

Key, Motor

064-26560-000

064-26560-000

064-26560-000

32

Washer, Shaft

064-21835-000

064-21835-000

064-21835-000

33

Screw, 5/8 Hex Cap

021-08363-000

021-08363-000

021-08363-000

34

Lockwasher, Shaft

021-05295-000

021-05295-000

021-05295-000

35

Screen, Oil Strainer

029-20032-000

029-20032-000

029-20032-000

36

Retaining Compound, Loctite

013-01752-000

013-01752-000

013-01752-000

(Use with Item 35)

37

Valve, Relief (Not Shown)

022-03871-000

022-03871-000

022-03871-000

No. Required Per Compressor

1

2

2

38

Device, Unloader

See Figure 4

No. Required Per Compressor

See Table 1

39

Valve, Solenoid

025-29999-000

025-29999-000

025-29999-000

No. Required Per Compressor

See Table 1

40

Coil, Solenoid Less Valve

120 Volt

025-30976-000

025-30976-000

025-30976-000

240 Volt

025-30977-000

025-30977-000

025-30977-000

No. Required Per Compressor

See Table 1

41

Gasket, Solenoid Valve

028-12558-000

028-12558-000

028-12558-000

No. Required Per Compressor

1

2

3

42

Screw, 3/8 Hex Cap

021-17690-000

021-17690-000

021-17690-000

No. Required Per Compressor

6

12

18

43

Cover, Access

064-48176-000

064-48176-000

064-48176-000

No. Required Per Compressor

1

2

3

44

Pin, Coiled Spring

029-21378-000

029-21378-000

029-21378-000

No. Required Per Compressor

1

2

3

45

Screw, 7/16 Hex Flange

021-17693-000

021-17693-000

021-17693-000

No. Required Per Compressor

16

32

48

46

Cover, Handhole

064-21645-000

064-21645-000

064-21645-000

No. Required Per Compressor

2

2

2

47

Valve Cage Assembly (Discharge)

See Figure 5

48

Screw, Discharge Valve Cage

021-16827-000

021-16827-000

021-16827-000

No. Required Per Compressor

16

24

32

49

Plate, Valve Suction

See Figure 6

50

Sleeve, Cylinder

064-48192-000

064-48192-000

064-48192-000

No. Required Per Compressor

4

6

8

51

Seal, O-Ring

028-12259-000

028-12259-000

028-12259-000

No. Required Per Compressor

2

4

6

Cylinders Used On

1 & 2

1, 2, 5 & 6

3, 4, 5, 6, 7 & 8

*

Not shown in Cut-away.  Located at motor end bearings only.

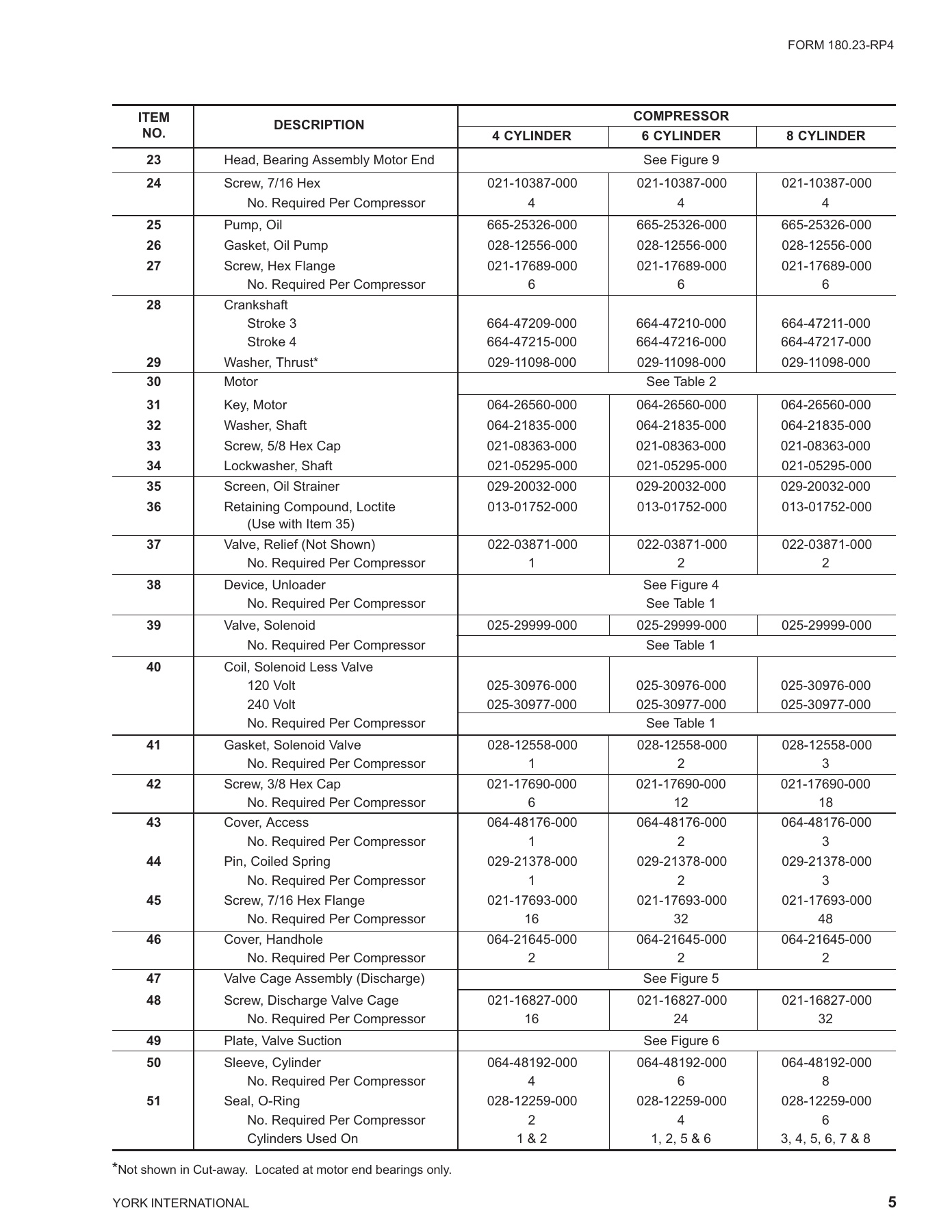

Catalog 180-23-RP4-1 - Page 0004
