FORM 160.76-RP1
ISSUE DATE: 10/9/2015
JOHNSON CONTROLS
5
Q3 - Q7 COMPRESSORS
UNIT COMPONENTS

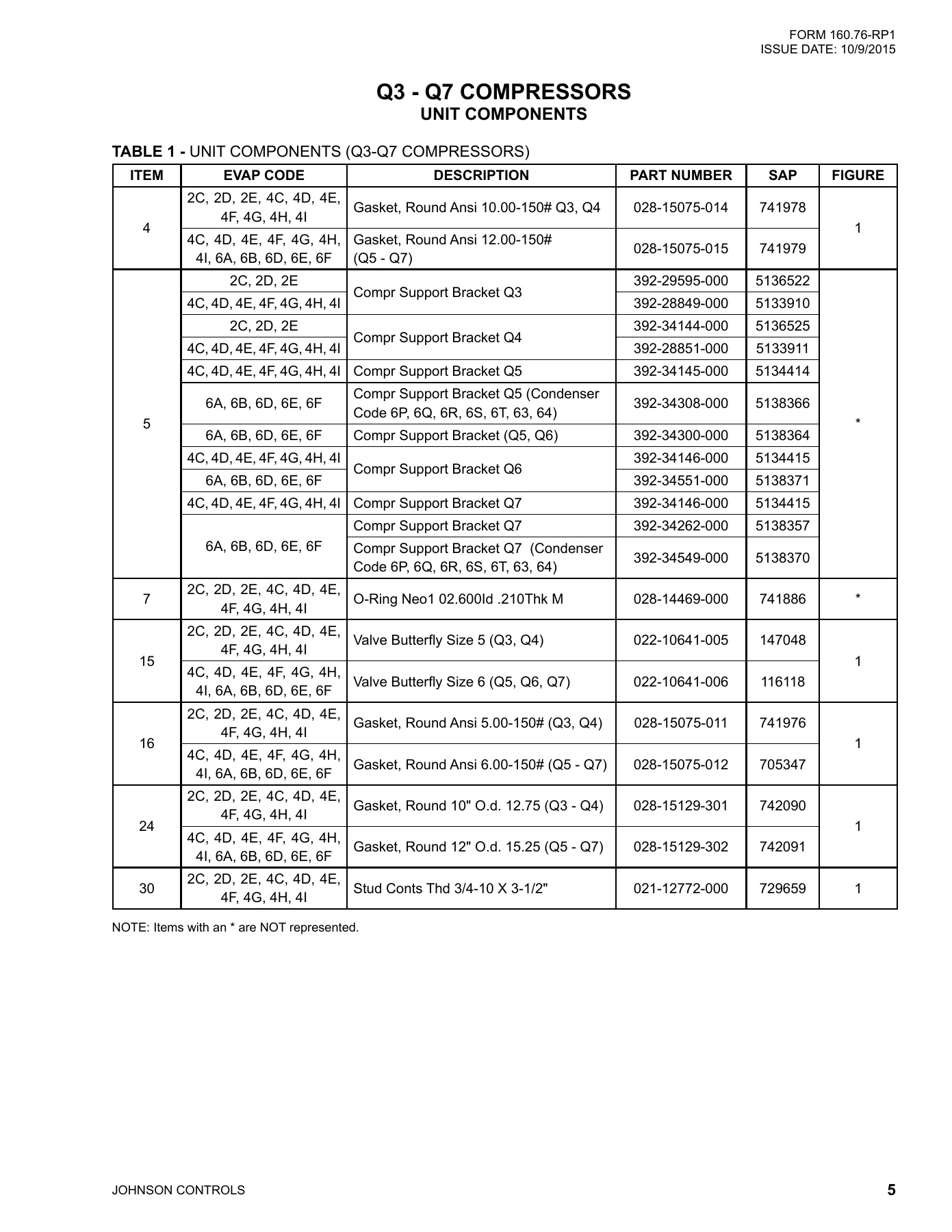

TABLE 1 -
UNIT COMPONENTS (Q3-Q7 COMPRESSORS)
ITEM
EVAP CODE
DESCRIPTION
PART NUMBER
SAP
FIGURE
4
2C, 2D, 2E, 4C, 4D, 4E,
4F, 4G, 4H, 4I
Gasket, Round Ansi 10.00-150# Q3, Q4
028-15075-014
741978
1
4C, 4D, 4E, 4F, 4G, 4H,
4I, 6A, 6B, 6D, 6E, 6F
Gasket, Round Ansi 12.00-150#
(Q5 - Q7)
028-15075-015
741979
5
2C, 2D, 2E
Compr Support Bracket Q3
392-29595-000
5136522
*
4C, 4D, 4E, 4F, 4G, 4H, 4I
392-28849-000
5133910
2C, 2D, 2E
Compr Support Bracket Q4
392-34144-000
5136525
4C, 4D, 4E, 4F, 4G, 4H, 4I
392-28851-000
5133911
4C, 4D, 4E, 4F, 4G, 4H, 4I Compr Support Bracket Q5
392-34145-000
5134414
6A, 6B, 6D, 6E, 6F
Compr Support Bracket Q5 (Condenser
Code 6P, 6Q, 6R, 6S, 6T, 63, 64)
392-34308-000
5138366
6A, 6B, 6D, 6E, 6F
Compr Support Bracket (Q5, Q6)
392-34300-000
5138364
4C, 4D, 4E, 4F, 4G, 4H, 4I
Compr Support Bracket Q6
392-34146-000
5134415
6A, 6B, 6D, 6E, 6F
392-34551-000
5138371
4C, 4D, 4E, 4F, 4G, 4H, 4I Compr Support Bracket Q7
392-34146-000
5134415
6A, 6B, 6D, 6E, 6F
Compr Support Bracket Q7
392-34262-000
5138357
Compr Support Bracket Q7 (Condenser
Code 6P, 6Q, 6R, 6S, 6T, 63, 64)
392-34549-000
5138370
7
2C, 2D, 2E, 4C, 4D, 4E,
4F, 4G, 4H, 4I
O-Ring Neo1 02.600Id .210Thk M
028-14469-000
741886
*
15
2C, 2D, 2E, 4C, 4D, 4E,
4F, 4G, 4H, 4I
Valve Butterfly Size 5 (Q3, Q4)
022-10641-005
147048
1
4C, 4D, 4E, 4F, 4G, 4H,
4I, 6A, 6B, 6D, 6E, 6F
Valve Butterfly Size 6 (Q5, Q6, Q7)
022-10641-006
116118
16
2C, 2D, 2E, 4C, 4D, 4E,
4F, 4G, 4H, 4I
Gasket, Round Ansi 5.00-150# (Q3, Q4)
028-15075-011
741976
1
4C, 4D, 4E, 4F, 4G, 4H,
4I, 6A, 6B, 6D, 6E, 6F
Gasket, Round Ansi 6.00-150# (Q5 - Q7)
028-15075-012
705347
24
2C, 2D, 2E, 4C, 4D, 4E,
4F, 4G, 4H, 4I
Gasket, Round 10" O.d. 12.75 (Q3 - Q4)
028-15129-301
742090
1
4C, 4D, 4E, 4F, 4G, 4H,
4I, 6A, 6B, 6D, 6E, 6F
Gasket, Round 12" O.d. 15.25 (Q5 - Q7)
028-15129-302
742091
30
2C, 2D, 2E, 4C, 4D, 4E,
4F, 4G, 4H, 4I
Stud Conts Thd 3/4-10 X 3-1/2"
021-12772-000
729659
1
NOTE: Items with an * are NOT represented.
