FORM  150.40-RP7

-$-

--

LL

.....

-

-+

-

-

-

-

�

,,

i,

-

--

II

f--

II

"-

-¼=>

#-



Item

Description

Part No.

No.

LCHA20

LCHA25

LCHA35

LCHA45

Cooler, Complete (Includes

366-83176

366-83177

366-83178

366-83179

Insulation, Heater &

Wrapper)

Cooler, Less Insulation,

366-83167

366-83168

;366-83175

366-83169

Heater & Wrapper

Tube

066-55360

066-55359

066-55359

066-55360

No. Reqd.

108

134

216

215

Head, Front (Inlet End)

366-85289

366-85290

366-85291

366-84440

Head, Rear  (Outlet End)

366-66425

366-66424

366-65545

366-65545

Gasket, Head and  Pass

066-8715A

066-87155

066-87031

066-87031

Baffle  (2 Reqd./Head)

Heater

025-17897

025-17897

025-17898

025-17898

Baffle,  Pass  (Front)

066-55343

066-55345

066-55347

066-55826

Baffle, Pass (Rear)

066-55344

066-55346

066-51902

066-55827

10*

Spring,  Turbulator

066-69902

066-69901

066-69901

066-69902

No. Reqd.

44

56

86

85

11*

Washers (Head Gasket)

021-15676

021-15676

021-15676

021-15676

No. Reqd.

32

32

32

32

*Not Shown

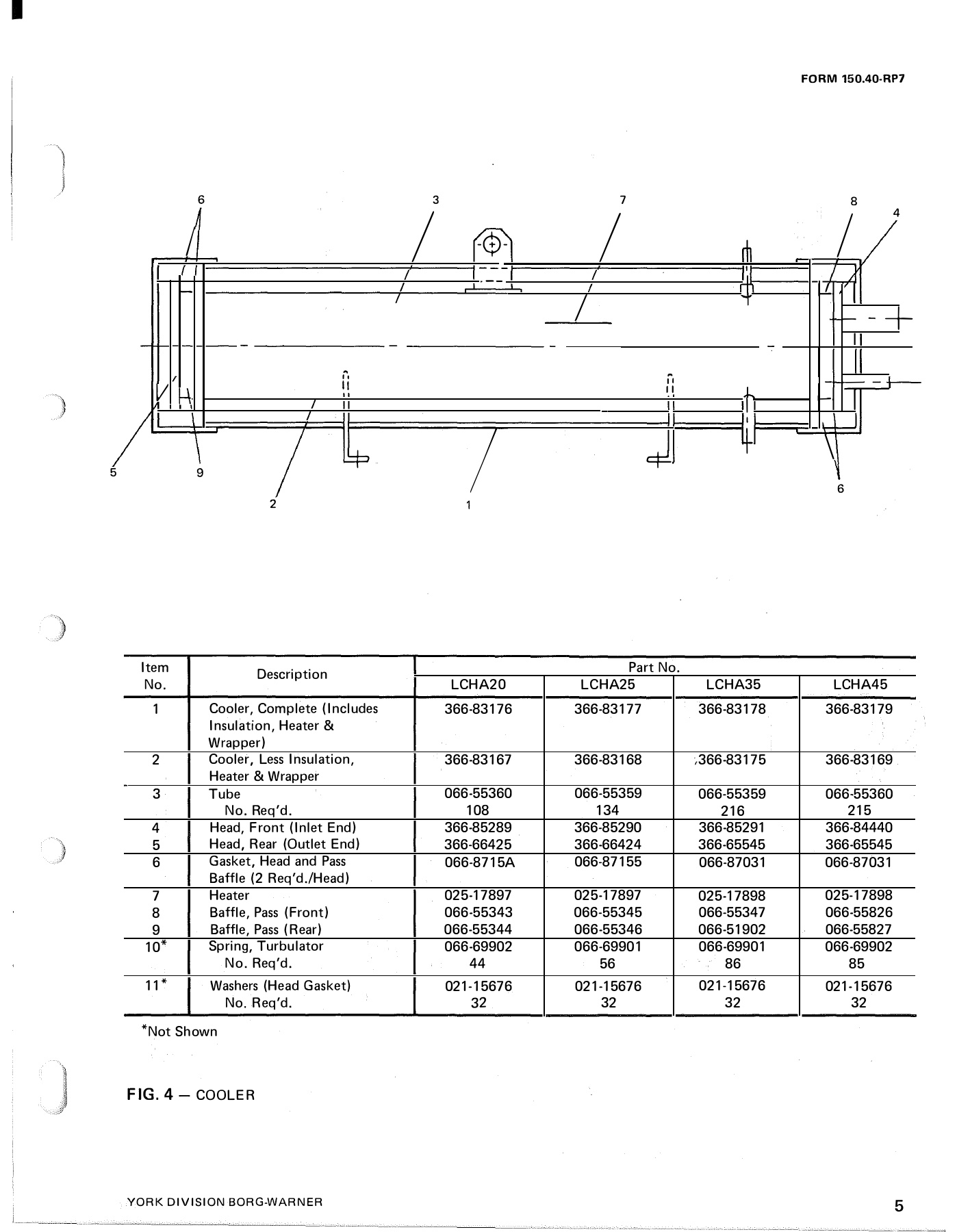

FIG. 4

- COOLER

YORK DIVISION  BORG-WARNER

Catalog 150-40-RP7 - Page 0004
