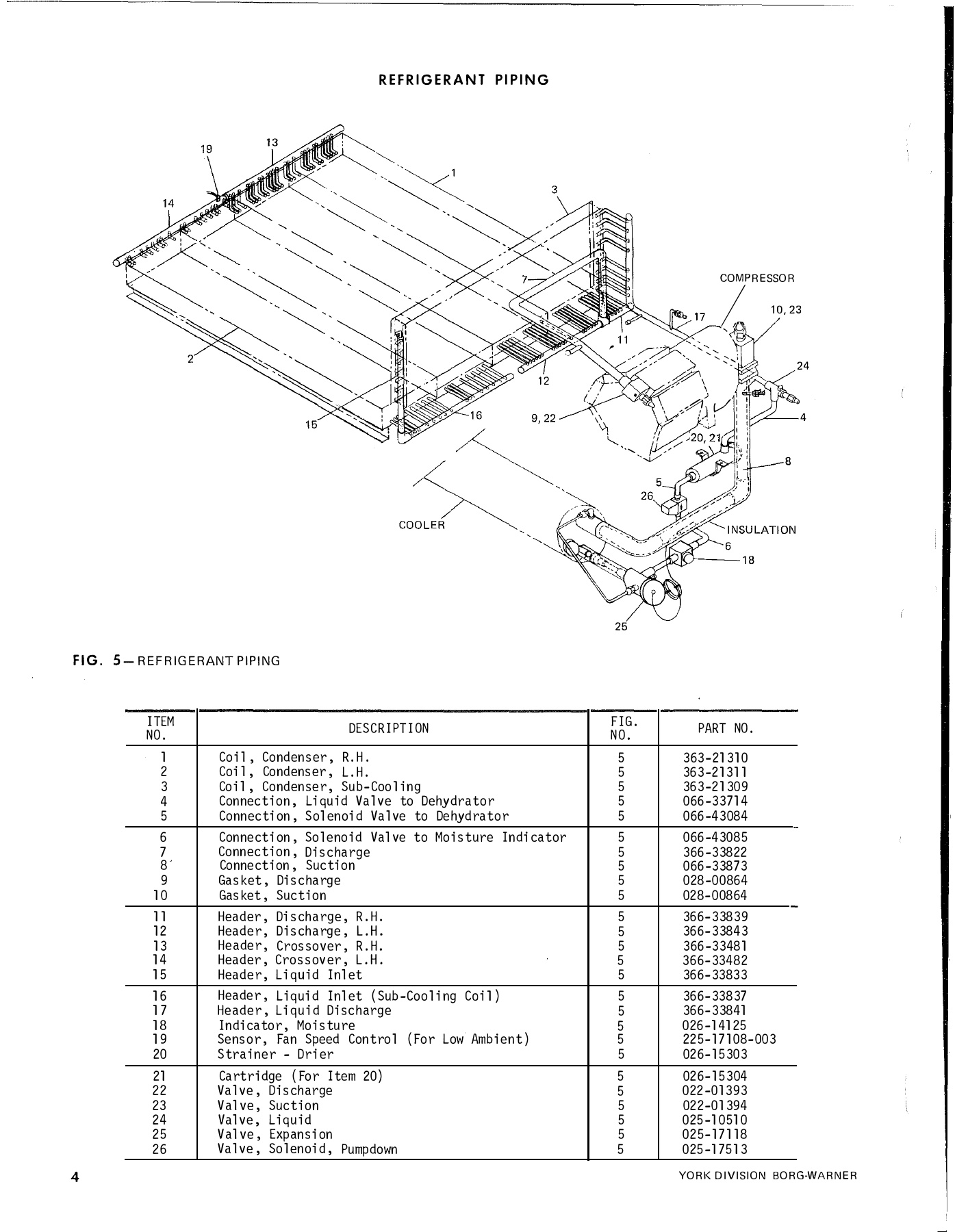

REFRIGERANT  PIPING

FIG.

5-REFRIGERANT PIPING

ITEM

DESCRIPTION

NO.

Coil,  Condenser,  R.H.

Coil,  Condenser,  L.H.

Coil ,  Condenser,  Sub-Coo 1 i ng

Connection,  Liquid  Valve  to  Dehydrator

Connection,  Solenoid  Valve  to  Dehydrator

Connection,  Solenoid  Valve  to  Moisture  Indicator

Connection,  Discharge

Connection,  Suction

Gasket,  Discharge

10

Gasket,  Suction

11

Header,  Discharge,  R.H.

12

Header,  Discharge,

L.H.

13

Header,  Crossover,  R.H.

14

Header,  Crossover,

L.H.

15

Header,  Liquid  Inlet

16

Header,  Liquid  Inlet  (Sub-Cooling  Cai 1)

17

Header,  Liquid  Discharge

18

Indicator,  Moisture

19

Sensor,  Fan Speed Control  (For  Low  Ambient)

20

Strainer  - Drier

21

Cartridge  (For  Item  20)

22

Valve,  Discharge

23

Valve,  Suction

24

Valve,  Liquid

25

Valve,  Expansion

26

Valve,  Solenoid,  Pumpdown

,,

COMPRESSOR

10,

23

  (.j



,:--

2

,--"1� �

25

,, ,,

.........

.,.,,/

-----v

FIG.

NO.

PART  NO.

363-21310

363-21311

363-21309

066-33714

066-43084

066-43085

366-33822

066-33873

028-00864

028-00864

366-33839

366-33843

366-33481

366-33482

366-33833

366-33837

366-33841

026-14125

225-17108-003

026-15303

026-15304

022-01393

022-01394

025-10510

025-17118

025-17513

YORK DIVISION  BORG-WARNER

Catalog 150-40-RP3 - Page 0004
