JOHNSON CONTROLS

4

FORM 160.73-RP5 (707)

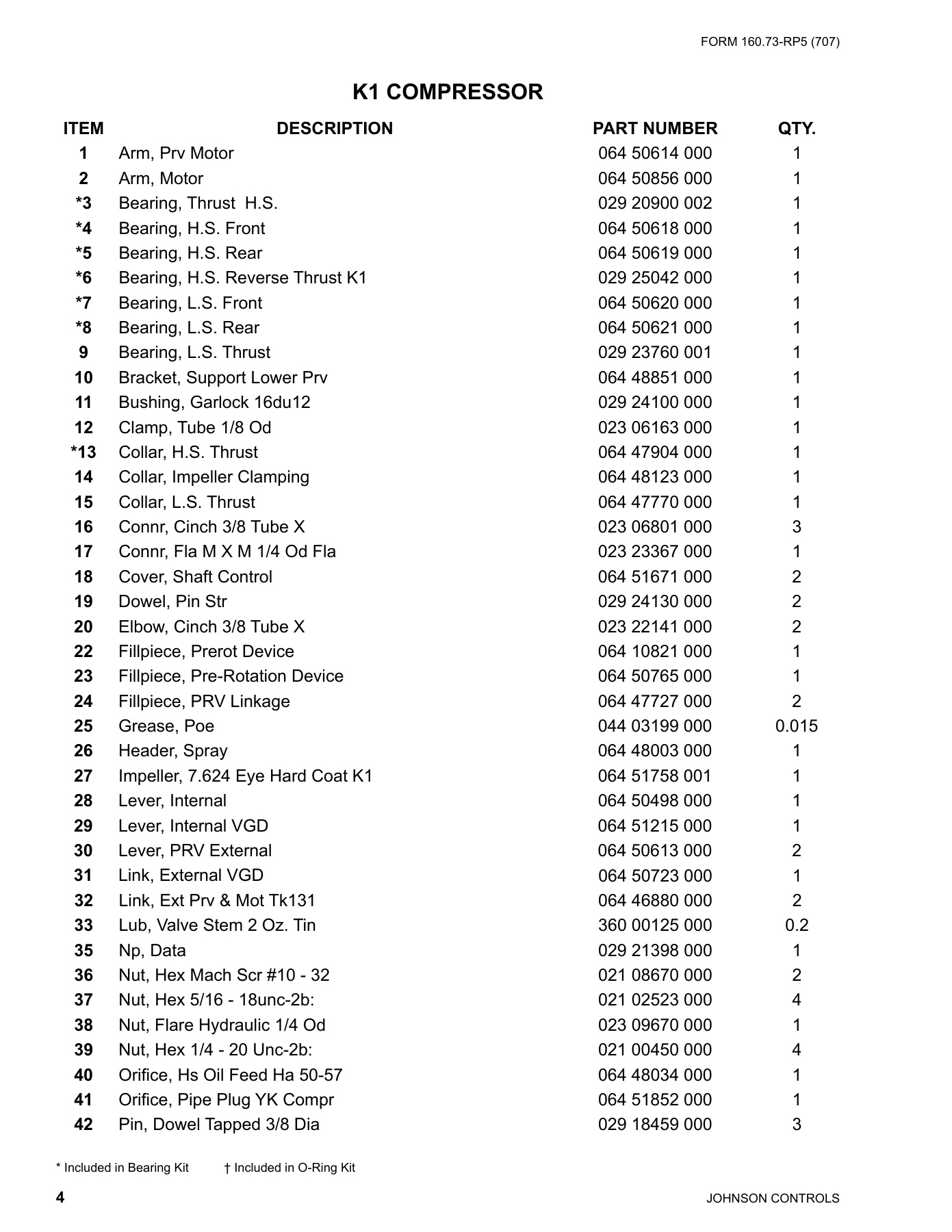

K1 COMPRESSOR

* Included in Bearing Kit

† Included in O-Ring Kit

ITEM

DESCRIPTION

PART NUMBER

QTY.

1

Arm, Prv Motor

064 50614 000

1

2

Arm, Motor

064 50856 000

1

*3

Bearing, Thrust  H.S.

029 20900 002

1

*4

Bearing, H.S. Front

064 50618 000

1

*5

Bearing, H.S. Rear

064 50619 000

1

*6

Bearing, H.S. Reverse Thrust K1

029 25042 000

1

*7

Bearing, L.S. Front

064 50620 000

1

*8

Bearing, L.S. Rear

064 50621 000

1

9

Bearing, L.S. Thrust

029 23760 001

1

10

Bracket, Support Lower Prv

064 48851 000

1

11

Bushing, Garlock 16du12

029 24100 000

1

12

Clamp, Tube 1/8 Od

023 06163 000

1

*13

Collar, H.S. Thrust

064 47904 000

1

14

Collar, Impeller Clamping

064 48123 000

1

15

Collar, L.S. Thrust

064 47770 000

1

16

Connr, Cinch 3/8 Tube X

023 06801 000

3

17

Connr, Fla M X M 1/4 Od Fla

023 23367 000

1

18

Cover, Shaft Control

064 51671 000

2

19

Dowel, Pin Str

029 24130 000

2

20

Elbow, Cinch 3/8 Tube X

023 22141 000

2

22

Fillpiece, Prerot Device

064 10821 000

1

23

Fillpiece, Pre-Rotation Device

064 50765 000

1

24

Fillpiece, PRV Linkage

064 47727 000

2

25

Grease, Poe

044 03199 000

0.015

26

Header, Spray

064 48003 000

1

27

Impeller, 7.624 Eye Hard Coat K1

064 51758 001

1

28

Lever, Internal

064 50498 000

1

29

Lever, Internal VGD

064 51215 000

1

30

Lever, PRV External

064 50613 000

2

31

Link, External VGD

064 50723 000

1

32

Link, Ext Prv & Mot Tk131

064 46880 000

2

33

Lub, Valve Stem 2 Oz. Tin

360 00125 000

0.2

35

Np, Data

029 21398 000

1

36

Nut, Hex Mach Scr #10 - 32

021 08670 000

2

37

Nut, Hex 5/16 - 18unc-2b:

021 02523 000

4

38

Nut, Flare Hydraulic 1/4 Od

023 09670 000

1

39

Nut, Hex 1/4 - 20 Unc-2b:

021 00450 000

4

40

Orifice, Hs Oil Feed Ha 50-57

064 48034 000

1

41

Orifice, Pipe Plug YK Compr

064 51852 000

1

42

Pin, Dowel Tapped 3/8 Dia

029 18459 000

3
