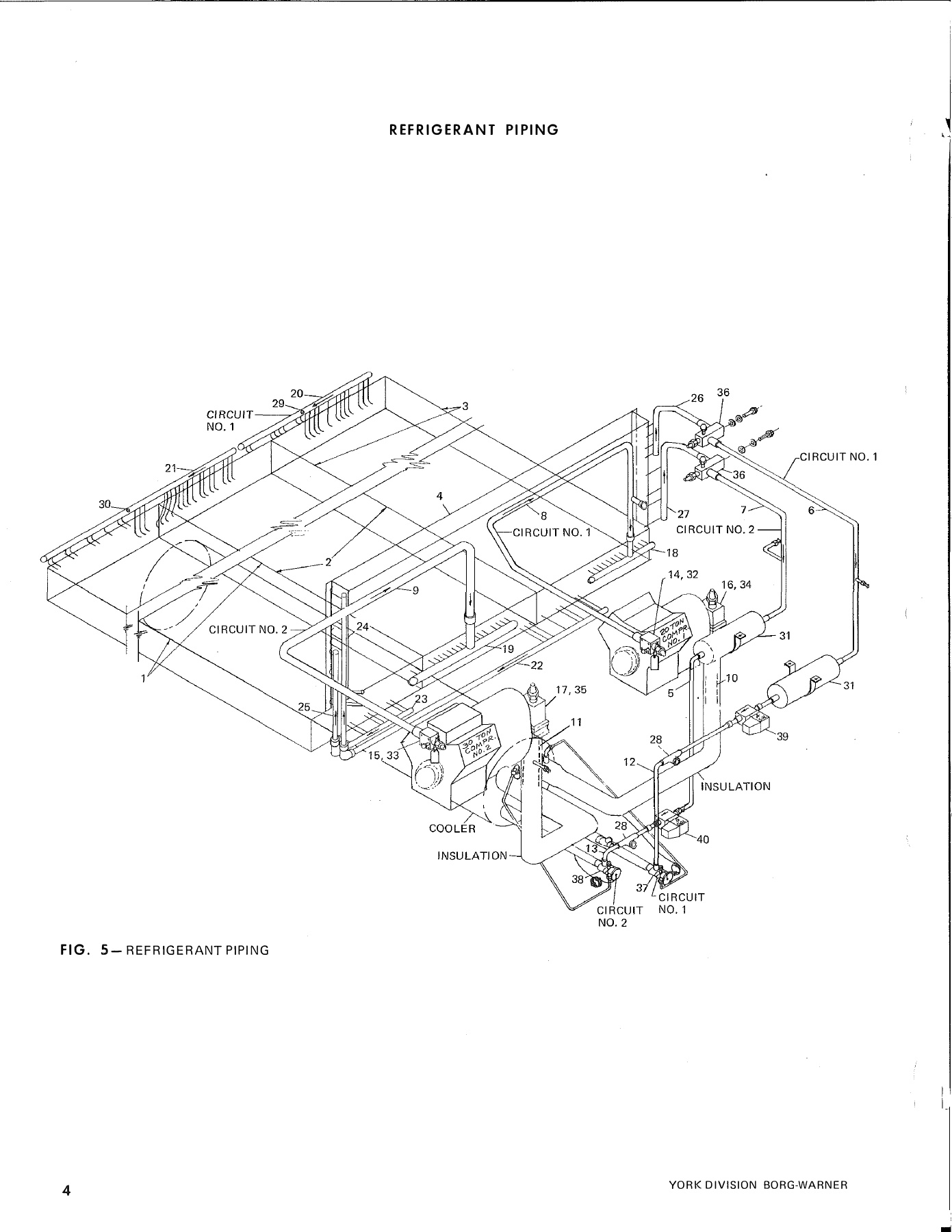

REFRIGERANT  PIPING

16

FIG.

5-REFRIGERANT PIPING

ITEM

DESCRIPTION

FIG.

PART  NO.

NO.

NO.

Coil ,  Condenser,  L.H.

362-94879

Coil,  Condenser,  Center

362-94880

Coil,  Condenser,  R.H.

362-94881

Coil,  Condenser,  Sub-Cooling

362-94882

Connection,  Dehydrator  to  Solenoid  Valve

066-42316

Connection,  Liquid  Valve  to  Dehydrator

066-33296

Connection,  Solenoid  Valve  to  Moisture  Indicator

066-42315

Connection,  Discharge  Line

366-31694

Connection,  Suction

066-31415

10

Gasket,  Discharge

028-08490

11

Gasket,  Suction

028-00864

12

Header,  Liquid,  Outlet

362-94947

13

Header,  Liquid,  Inlet

362-94929

14

Header,  Discharge,  R.H.

362-94922

15

Header,  Liquid  Inlet,  (Sub-Cooling  Coil)

362-94925

16

Header,  Crossover,  R.H.

366-37921

17

Header,  Crossover,  L. H.

363-21392

18

Header,  Discharge,  L.H.

363-21391

19

Indicator,  Moisture

026-12992

20

Strainer  - Drier

026-14777-009

21

Valve,  Discharge

022-03727-002

22

Valve,  Suction

022-01393

23

Valve,  Liquid

022-02992

24

Valve,  Expansion

025-17117

25

Valve,  Solenoid,  Pumpdown

025-17464

26

Sensor,  Fan  Speed  Control  (For  Low  Ambient)

225-17108-003

YORK DIVISION  BORG-WARNER

Catalog 150-40-RP2 - Page 0003

York
YORK
YORK-YORK-0003-1795
