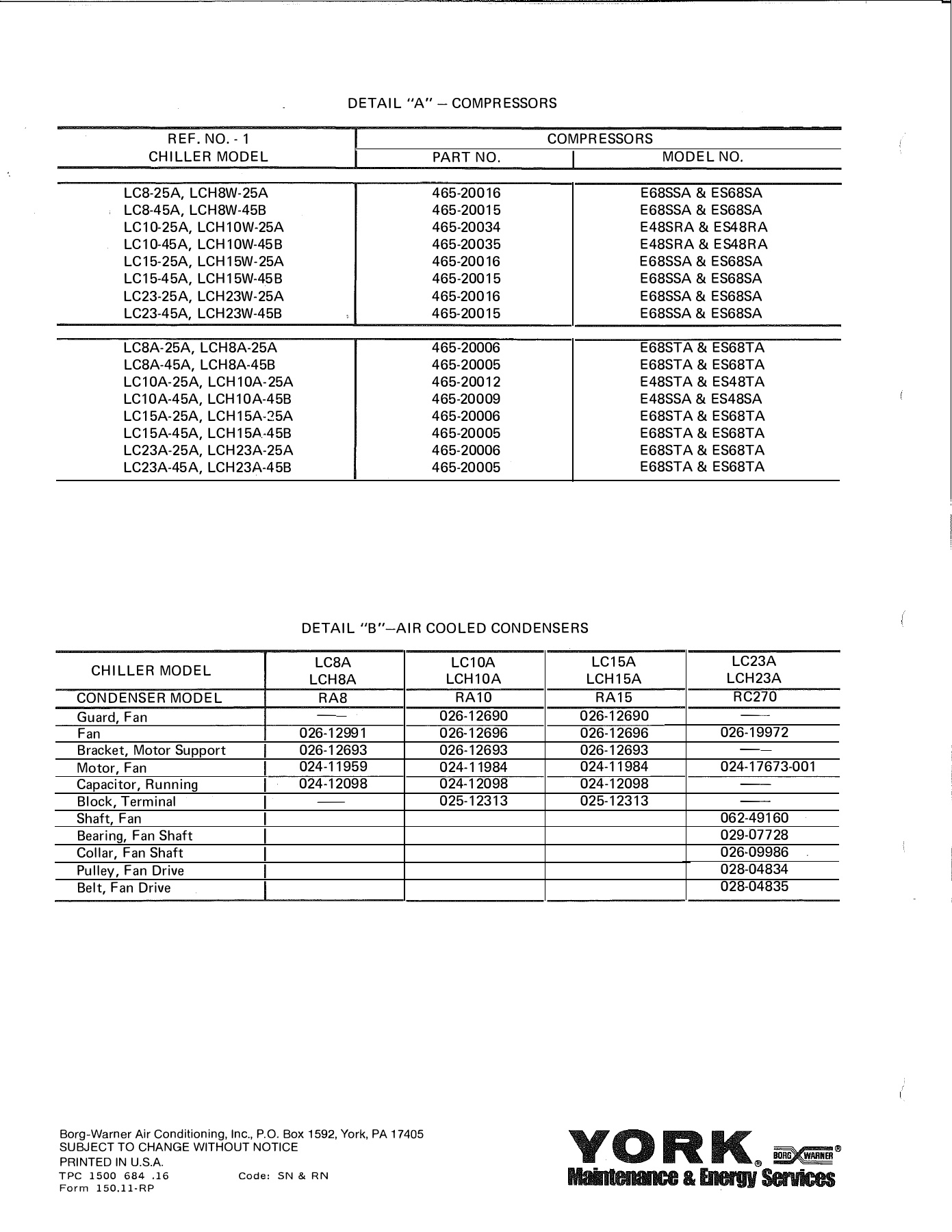

DETAIL "A" - COMPRESSORS
REF. NO. - 1
CHILLER MODEL
LC8-25A, LCH8W-25A
LC8-45A, LCH8W-45B
LC10-25A, LCH10W-25A
LC 10-45A, LCH 10W-45B
LC15-25A, LCH15W-25A
LC 15-45A, LCH 15W-45B
LC23-25A, LCH23W-25A
LC23-45A, LCH23W-45B
LC8A-25A, LCH8A-25A
LC8A-45A, LCH8A-45B
LC1 0A-25A, LCH 1 0A-25A
LC10A-45A, LCH10A-45B
LC15A-25A, LCH 15A-25A
LC15A-45A, LCH 15A-45B
LC23A-25A, LCH23A-25A
LC23A-45A, LCH23A-45B
PART NO.
465-20016
465-20015
465-20034
465-20035
465-20016
465-20015
465-20016
465-20015
465-20006
465-20005
465-20012
465-20009
465-20006
465-20005
465-20006
465-20005
COMPRESSORS
MODEL NO.
E68SSA & ES68SA
E68SSA & ES68SA
E48SRA & ES48RA
E48SRA & ES48RA
E68SSA & ES68SA
E68SSA & ES68SA
E68SSA & ES68SA
E68SSA & ES68SA
E68ST A & ES68T A
E68ST A & ES68T A
E48ST A & ES48T A
E48SSA & ES48SA
E68STA & ES68TA
E68ST A & ES68T A
E68ST A & ES68T A
E68STA & ES68TA
DETAIL "B"-AIR COOLED CONDENSERS
CHILLER MODEL
LC8A
LCH8A
CONDENSER MODEL
RAS
Guard, Fan
- -
Fan
026-12991
Bracket, Motor Support
026-12693
Motor, Fan
024-11959
Capacitor, Running
024-12098
Block, Terminal
-
Shaft, Fan
Bearing, Fan Shaft
Collar, Fan Shaft
Pulley, Fan Drive
Belt, Fan Drive
Borg-Warner Air Conditioning, Inc., P.O. Box 1592, York, PA 17405
SUBJECT TO CHANGE WITHOUT NOTICE
PRINTED IN U.S.A.
TPC 1500 684 .16
Form 150.11-RP
Code: SN & RN
LC10A
LC15A
LC23A
LCH10A
LCH15A
LCH23A
RA10
RA15
RC270
026-12690
026-12690
--
026-12696
026-12696
026-19972
026-12693
026-12693
- -
024-11984
024-11984
024-17673-001
024-12098
024-12098
--
025-12313
025-12313
--
062-49160
029-07728
026-09986
028-04834
028-04835
