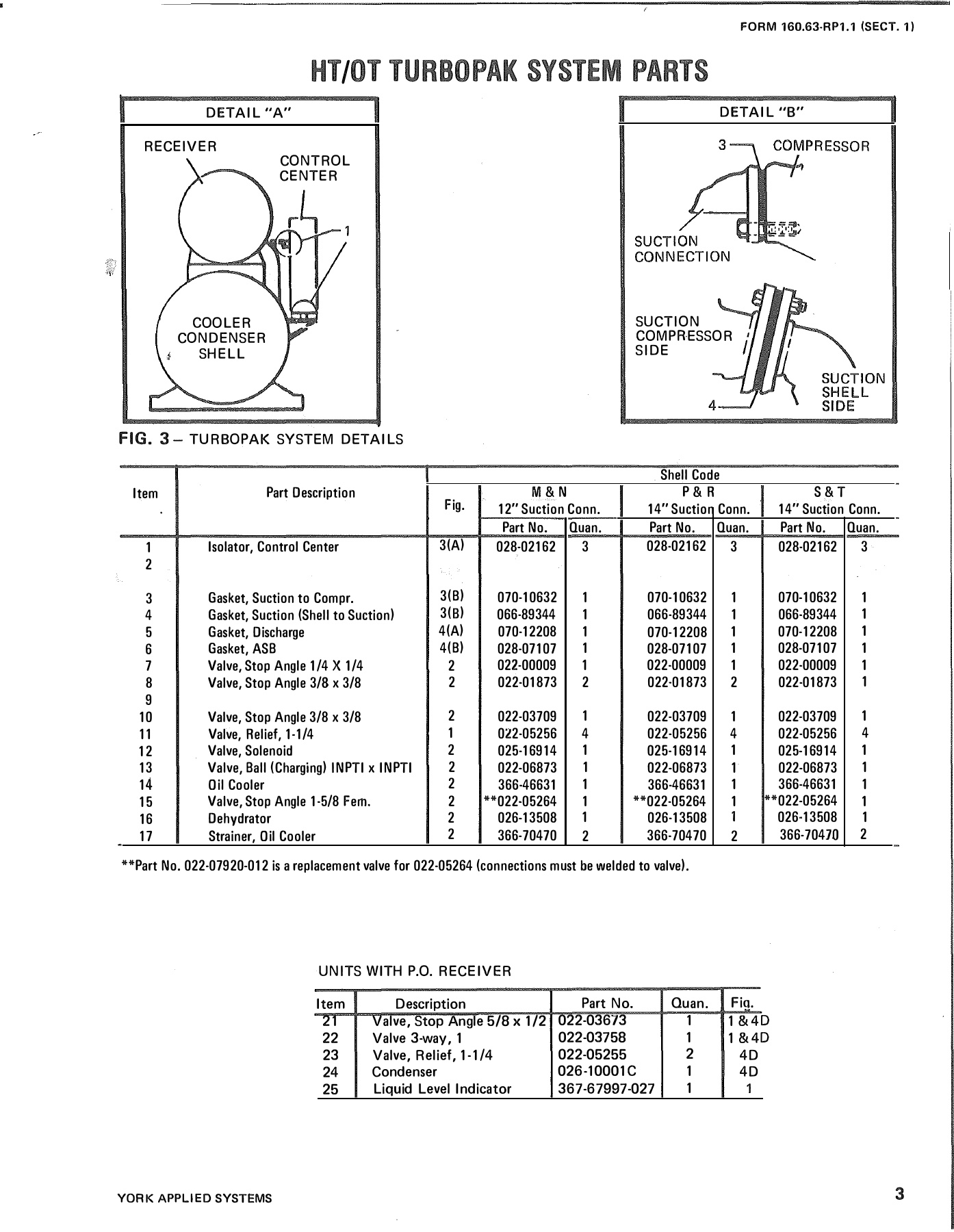

FORM 160.63-RP1.1 (SECT. 1)
HT/OT TURBOPAK SYSTEM PARTS
DETAIL "A"
DETAIL "B"
RECEIVER
COOLER
CONDENSER
SHELL
CONTROL
CENTER
FIG. 3-
TURBOPAK SYSTEM DETAILS
SUCTION
COMPRESSOR
SIDE
Shell Code
Item
Part Description
M&N
P&R
Fig.
12" Suction Conn.
14" Suction Conn.
Part No.
Quan.
Part No.
Quan.
1
Isolator, Control Center
3(A)
028-02162
3
028-02162
3
2
3
Gasket, Suction to Compr.
3(B)
070-10632
1
070-10632
1
4
Gasket, Suction (Shell to Suction)
3(8)
066-89344
1
066-89344
1
5
Gasket, Discharge
4(A)
070-12208
1
070-12208
1
6
Gasket, ASB
4(B)
028-07107
1
028-07107
1
7
Valve, Stop Angle 1/4 X 1/4
2
022-00009
1
022-00009
1
8
Valve, Stop Angle 3/8 x 3/8
2
022-01873
2
022-01873
2
9
10
Valve, Stop Angle 3/8 x 3/8
2
022-03709
1
022-03709
1
11
Valve, Relief, 1-1/4
1
022-05256
4
022-05256
4
12
Valve, Solenoid
2
025-16914
1
025-16914
1
13
Valve, Ball (Charging) INPTI x INPTI
2
022-06873
1
022-06873
1
14
Oil Cooler
2
366-46631
1
366-46631
1
15
Valve, Stop Angle 1-5/8 Fern.
2
**022-05264
1
**022-05264
1
16
Dehydrator
2
026-13508
1
026-13508
1
17
Strainer, Oil Cooler
2
366-70470
2
366-70470
2
**Part No. 022-07920-012 is a replacement valve for 022-05264 (connections must be welded to valve).
UNITS WITH P.O. RECEIVER
Item
Description
Part No.
Quan.
Fio.
21
Valve, Stop Angle 5/8 x 1/2 022-03673
1
1&4
22
Valve 3-way, 1
022-03758
1
1 &4
23
Valve, Relief, 1-1/4
022-05255
2
4D
24
Condenser
026-10001C
1
4D
25
Liquid Level Indicator
367-67997-027
1
1
YORK APPLIED SYSTEMS
S&T
14" Suction Conn.
Part No.
028-02162
070-10632
066-89344
070-12208
028-07107
022-00009
022-01873
022-03709
022-05256
025-16914
022-06873
366-46631
**022-05264
D
D
026-13508
366-70470
Quan.
3
1
1
1
1
1
1
1
4
1
1
1
1
1
2
3
