FLANGE
HUB
FLANGE
HUB
NOTE:
OT Al THRU OT K3
ASSEMBLE GASKETS
AGAINST EACH FLANGE
FACE WITH BURSTING
D ISC BETWEEN GASKETS.
COMPRESSOR
FORM 160.58-RP1 tSECT. 1)
SUCTION
CONNECTION
3
DETAIL "C"
DETAIL "D"
TEMPERATURE
CONTROL SENSOR
SEE 160.43-RP1
(SECT. 3)
LOW WATER
TEMPERATURE THERMOSTAT
SEE 160.43-RP1 (SECT. 31

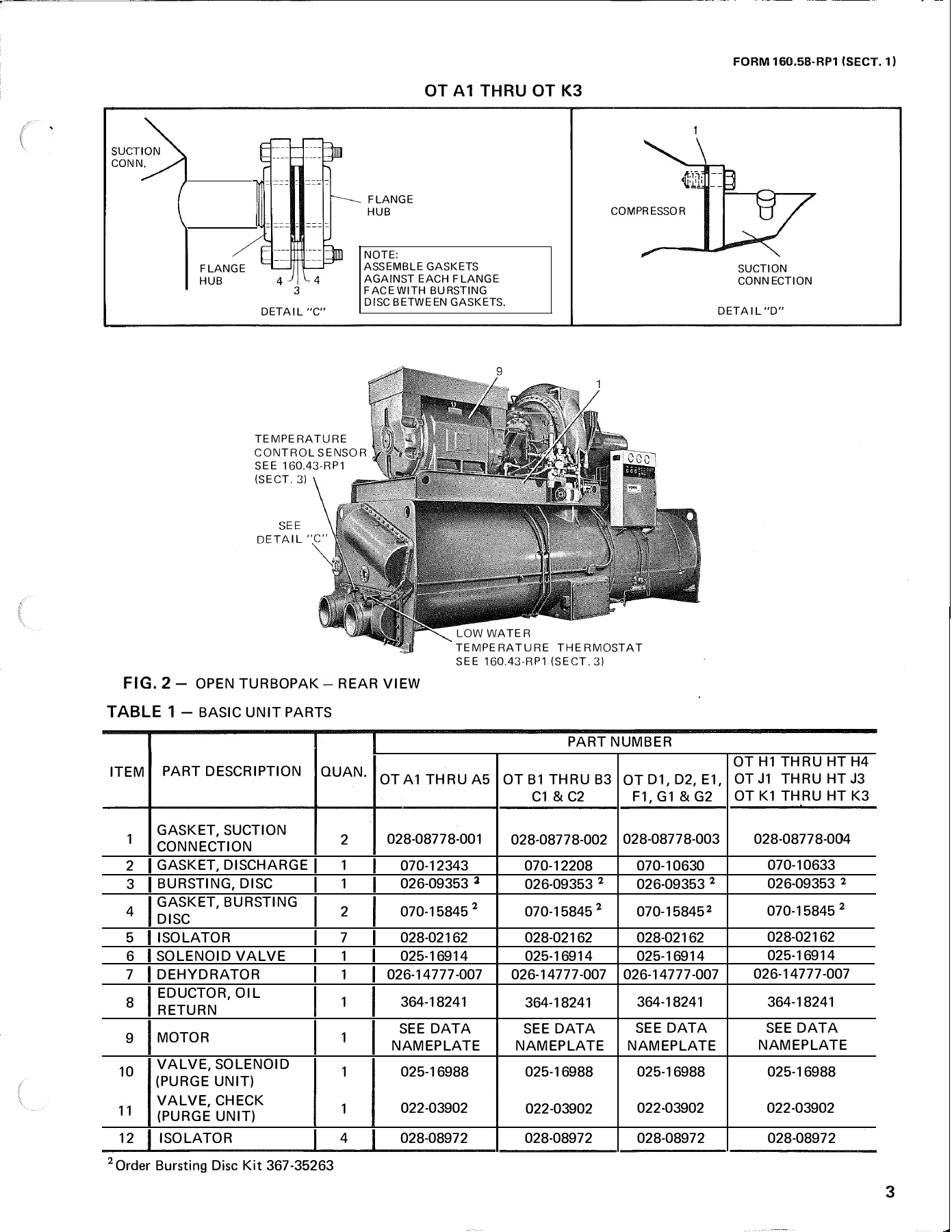

FIG. 2
- OPEN TURBOPAK - REAR VIEW
TABLE 1
- BASIC UNIT PARTS
PART NUMBER
ITEM PART DESCRIPTION QUAN. OT A1 THRU A5 OT B1 THRU B3 OT D1, D2, E1,
C1 & C2
F1,G1 &G2
1
GASKET, SUCTION
2
028-08778-001
028-08778-002 028-08778-003
CONNECTION
2
GASKET, DISCHARGE
1
070-12343
070-12208
070-10630
3
BURSTING, DISC
1
026-09353 l
026-09353
2
026-09353
2
4
GASKET, BURSTING
2
070-15845
2
070-15845
2
070-158452
DISC
5
ISOLATOR
7
028-02162
028-02162
028-02162
6
SOLENOID VALVE
1
025-16914
025-16914
025-16914
7
DEHYDRATOR
1
026-14 777-007
026-14777-007 026-14777-007
8
EDUCTOR, 01 L
1
364-18241
364-18241
364-18241
RETURN
9
MOTOR
1
SEE DATA
SEE DATA
SEE DATA
NAMEPLATE
NAMEPLATE
NAMEPLATE
10
VALVE, SOLENOID
1
025-16988
025-16988
025-16988
(PURGE UNIT)
11
VALVE, CHECK
1
022-03902
022-03902
022-03902
(PURGE UNIT)
12
ISOLATOR
4
028-08972
028-08972
028-08972
2 Order Bursting Disc Kit 367-35263
OT H1 THRU HT H4
OT J1 THRU HT J3
OT K1 THRU HT K3
028-087 78-004
070-10633
026-09353
2
070-15845 2
028-02162
025-16914
026-14777-007
364-18241
SEE DATA
NAMEPLATE
025-16988
022-03902
028-08972
3
