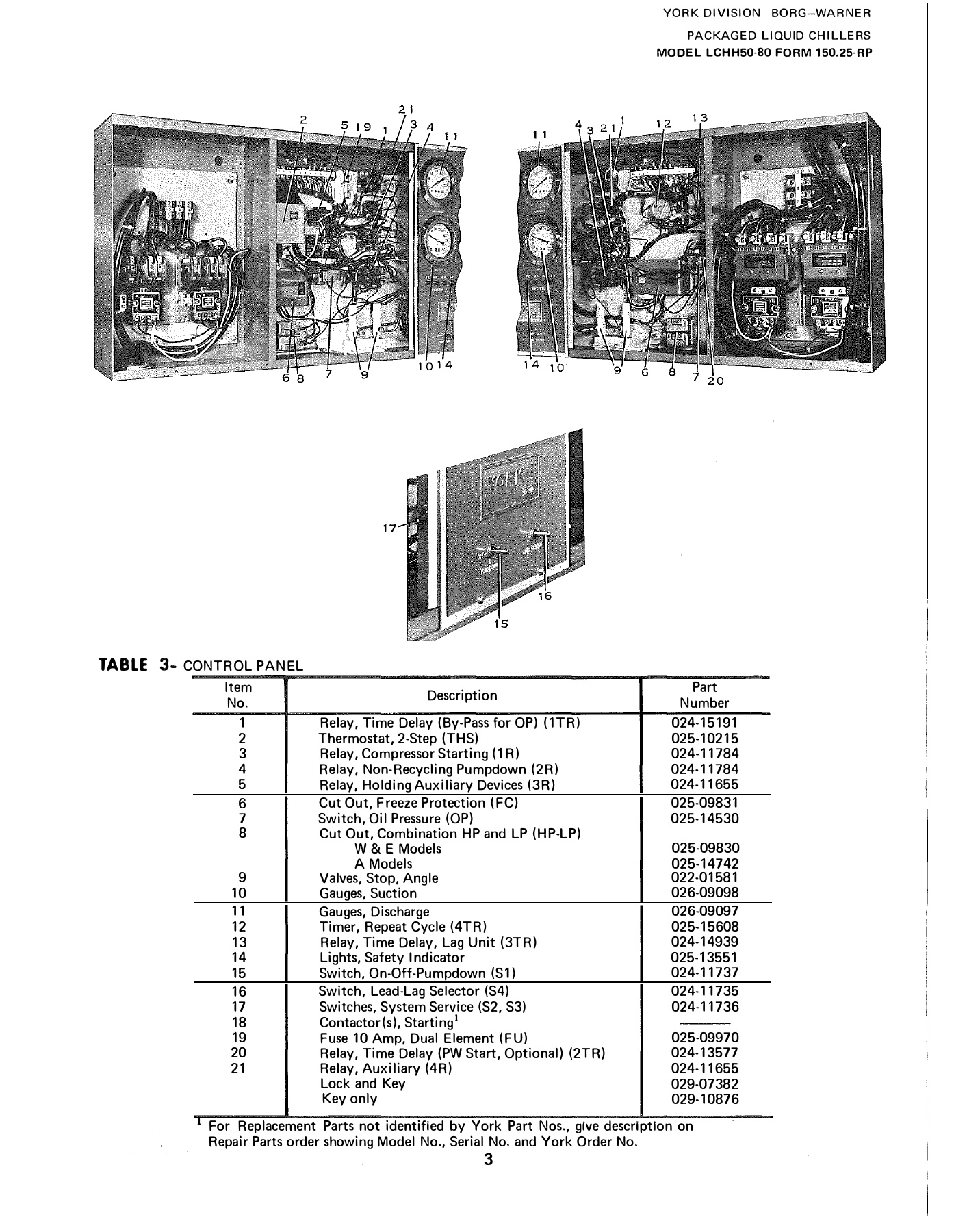

TABLE
3- CONTROL PANEL
Item
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
17
Description
Relay, Time Delay (By-Pass for OP) (1TR)
Thermostat, 2-Step (THS)
Relay, Compressor Starting ( 1 R)
Relay, Non-Recycling Pumpdown (2R)
Relay, Holding Auxiliary Devices (3R)
Cut Out, Freeze Protection (FC)
Switch, Oil Pressure (OP)
Cut Out, Combination HP and LP (HP-LP)
W & E Models
A Models
Valves, Stop, Angle
Gauges, Suction
Gauges, Discharge
Timer, Repeat Cycle (4TR)
Relay, Time Delay, Lag Unit (3TR)
Lights, Safety Indicator
Switch, On-Off-Pumpdown (S1)
Switch, Lead-Lag Selector (S4)
Switches, System Service (S2, S3)
Contactor(s), Starting
1
Fuse 10 Amp, Dual Element (FU)
Relay, Time Delay (PW Start, Optional) (2TR)
Relay, Auxiliary (4R)
Lock and Key
Key only
YORK DIVISION BORG-WARNER
PACKAGED LIQUID CHILLERS
MODEL LCHH50-80 FORM 150.25-RP
Part
Number
024-15191
025-10215
024-11784
024-11784
024-11655
025-09831
025-14530
025-09830
025-14742
022-01581
026-09098
026-09097
025-15608
024-14939
025-13551
024-11737
024-11735
024-11736
025-09970
024-13577
024-11655
029-07382
029-10876
1
For Replacement Parts not identified by York Part Nos., give description on
Repair Parts order showing Model No., Serial No. and York Order No.
3
