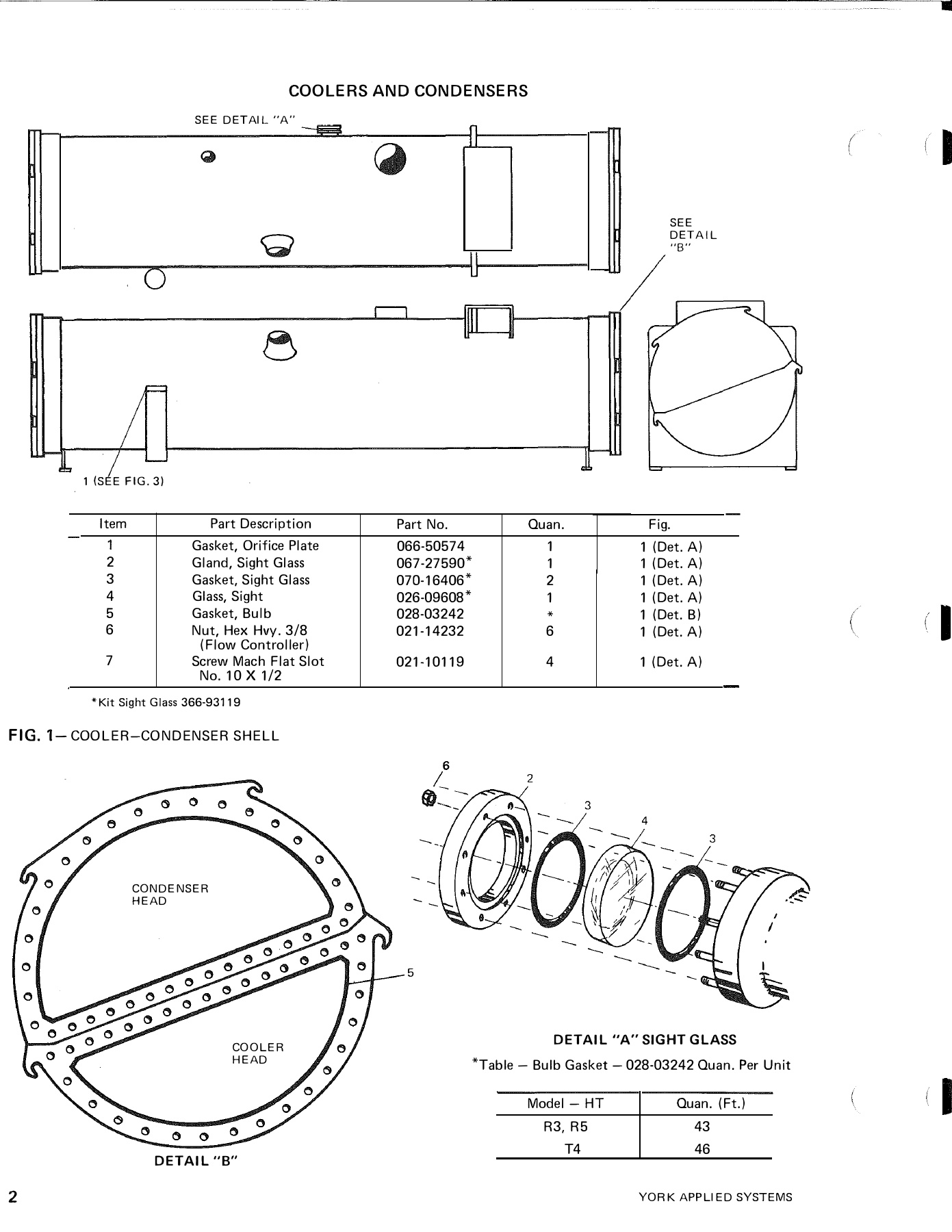

COOLERS AND CONDENSERS

SEE DETAIL  "A"

1  (SEE FIG.3)

Item

Part Description

Gasket, Orifice Plate

Gland, Sight Glass

Gasket, Sight Glass

Glass, Sight

Gasket,  Bu I b

Nut, Hex Hvy. 3/8

(Flow Controller)

Screw Mach Flat Slot

No. 10 X 1/2

*Kit Sight Glass 366-93119

FIG.  1-

COOLER-CONDENSER SHELL

CON DENSER

HEAD

COOLER

HEAD

DETAIL "B"

Part No.
066-50574

067-27590*

070-16406*

026-09608*

028-03242

021-14232

021-10119

Quan.


Fig.

SEE

DETAIL

"B"

1 (Det. A)

1 (Det. A)

1 (Det. A)

1 (Det. A)

1  (Det.  B)

1  (Det. A)

1 (Det. A)

DETAIL "A" SIGHT GLASS

*Table - Bulb Gasket - 028-03242 Quan. Per Unit

Model - HT

R3, R5

T4

Quan.  (Ft.)

43
46

YORK APPLIED SYSTEMS

(I

Catalog 160-63-RP1-1-SECT-3 - Page 0001

York
YORK
YORK-YORK-0001-2627
