COOLERS  AND  CONDENSERS

Item





SEE DETAIL "A"

�

Part Description

Gasket, Orifice Plate
Gland, Sight Glass

Gasket, Sight Glass

Glass, Sight

Gasket, Bulb
Nut, Hex  Hvy. 3/8

Screw  Mach Flat Slot

No. 10X 1/2

I

FIG.  1-

COOLER-CONDENSER SHELL

CONDENSER

HEAD

COOLER

HEAD

DETAIL "B"

(ij

II

II

-

SEE

DETAIL

"B"

/---======-----

1  (SEE FIG.  3)

Part No.

066-50574

067-27590

070-16406
026-09608
028-03242
021-14232

021-10119

Quan.

Fig.

1  (Det. A)

1  (Det. A)

1  (Det. A)

1  (Det. A)

1  (Det.  B)

14

1  (Det. A)

1  (Det. A)

DETAIL "A" SIGHT GLASS

*Table - Bulb Gasket - 028-03242 Quan. Per  Unit

Model -

HT

M1, M2, M3, M4, M5, M6

N1,N2,N3,N4,N5,N6

P1, P2, P3,P4, P5

R1, R2, R3, R4, R5

S1,S2,S3,S4

T1, T2, T3, T4

Quan.  (Ft.)

42

43

46

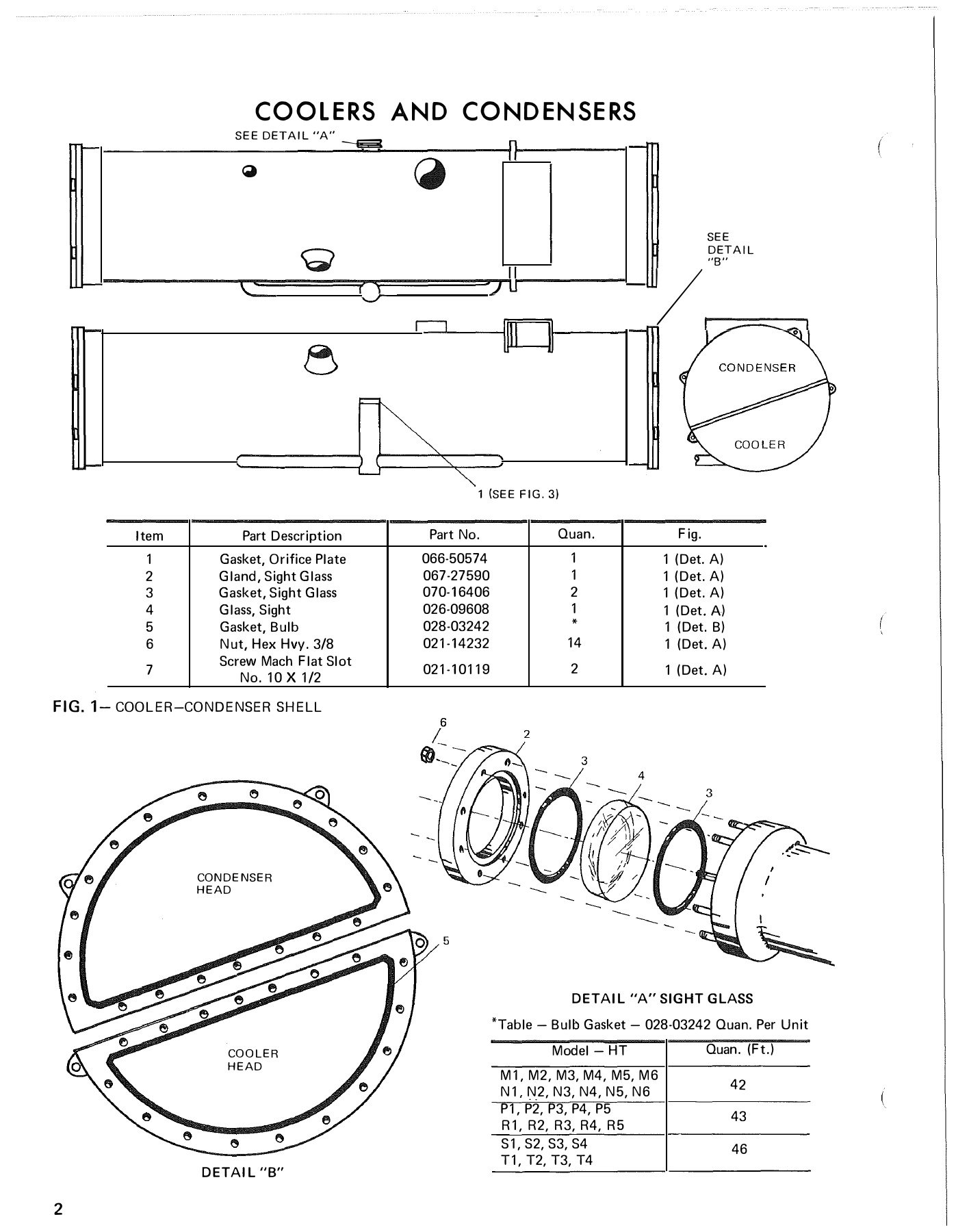

Catalog 160-53-RP1-3 - Page 0001
