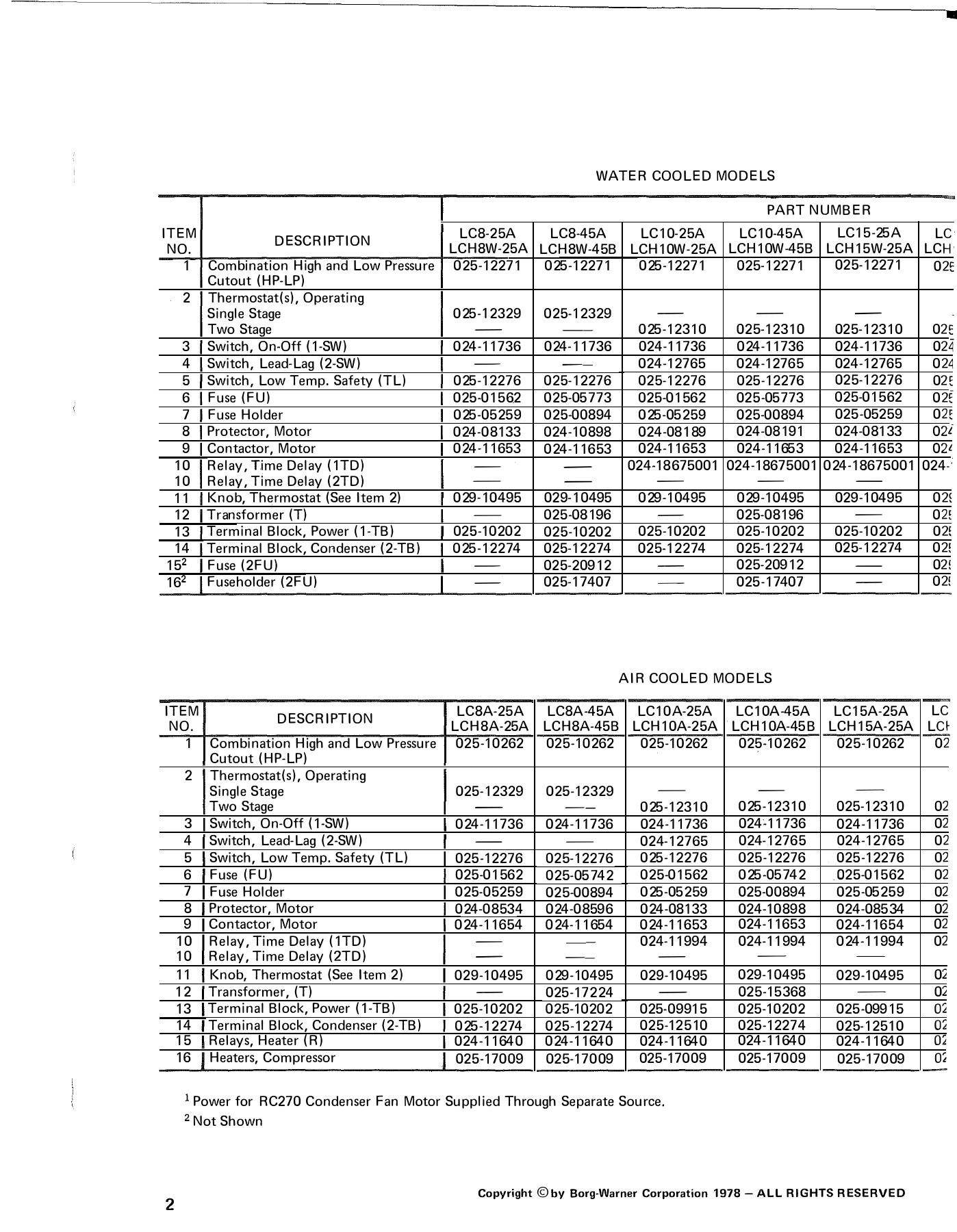

WATER COOLED MODELS
PART NUMBER
ITEM
DESCRIPTION
LC8-25A
LC8-45A
LC10-25A
LC10-45A
LC15-25A
NO.
LCH8W-25A LCH8W-45B LCH10W-25A LCH10W-45B LCH15W-25A
1 Combination High and Low Pressure 025-12271
025-12271
025-12271
025-12271
025-12271
Cutout (HP-LP)
2 Thermostat(s), Operating
Single Stage
025-12329
025-12329
-
-
-
Two Stage
-
--
025-12310
025-12310
025-12310
3 Switch, On-Off (1-SW)
024-11736
024-11736
024-11736
024-11736
024-11736
4 Switch, Lead-Lag (2-SW)
-
- -
024-12765
024-12765
024-12765
5 Switch, Low Temp. Safety (TL)
025-12276
025-12276
025-12276
025-12276
025-12276
6 Fuse (FU)
025-0156.2
025-05773
025-01562
025-05773
025-01562
7 Fuse Holder
025-05259
025-00894
025-05259
025-00894
025-05259
8 Protector, Motor
024-08133
024-10898
024-08189
024-08191
024-08133
9 Contactor, Motor
024-11653
024-11653
024-11653
024-11653
024-11653
10 Relay, Time Delay (1TD)
-
-
024-18675001 024-18675001 024-18675001
10 Relay, Time Delay (2TD)
-
-
-
-
-
11 Knob, Thermostat (See Item 2)
029-10495
029-10495
029-10495
029-10495
029-10495
12 Transformer (T)
-
025-08196
-
025-08196
-
13 Terminal Block, Power (1-TB)
025-10202
025-10202
025-10202
025-10202
025-10202
14 Terminal Block, Condenser (2-TB)
025-12274
025-12274
025-12274
025-12274
025-12274
15
2
Fuse (2FU)
-
025-20912
-
025-20912
-
16
2
Fuseholder (2FU)
-
025-17407
-
025-17407
-
AIR COOLED MODELS
ITEM
DESCRIPTION
LC8A-25A
LC8A-45A
LC10A-25A
LC10A-45A
LC15A-25A
NO.
LCH8A-25A LCH8A-45B LCH10A-25A LCH10A-45B LCH15A-25A
1 Combination High and Low Pressure 025-10262
025-10262
025-10262
025-10262
025-10262
Cutout (HP-LP)
2 Thermostat(s), Operating
Single Stage
025-12329
025-12329
-
-
-
Two Stage
-
- -
025-12310
025-12310
025-12310
3 Switch, On-Off (1-SW)
024-11736
024-11736
024-11736
024�11736
024-11736
4 Switch, Lead-Lag (2-SW)
-
-
024-12765
024-12765
024-12765
5 Switch, Low Temp. Safety (TL)
025-12276
025-12276
025-12276
025-12276
025-12276
6 Fuse (FU)
025-01562
025-05742
025-01562
025-05742
025-01562
7 Fuse Holder
025-05259
025-00894
025-05259
025-00894
025-05259
8 Protector, Motor
024-08534
024-08596
024-08133
024-10898
024-08534
9 Contactor, Motor
024-11654
024-11654
024-11653
024-11653
024-11654
10 Relay, Time Delay (1TD)
-
--
024-11994
024-11994
024-11994
10 Relay, Time Delay (2TD)
-
- -
-
--
-
11 Knob, Thermostat (See Item 2)
029-10495
029-10495
029-10495
029-10495
029-10495
12 Transformer, (T)
-
025-17224
-
025-15368
-
13 Terminal Block, Power (1-TB)
025-10202
025-10202
025-09915
025-10202
025-09915
14 Terminal Block, Condenser (2-TB)
025-12274
025-12274
025-12510
025-12274
025-12510
15 Relays, Heater (R)
024-11640
024-11640
024-11640
024-11640
024-11640
16 Heaters, Compressor
025-17009
025-17009
025-17009
025-17009
025-17009
1
Power for RC270 Condenser Fan Motor Supplied Through Separate Source.
2 Not Shown
2
Copyright ©by Borg-Warner Corporation 1978 -ALL RIGHTS RESERVED
