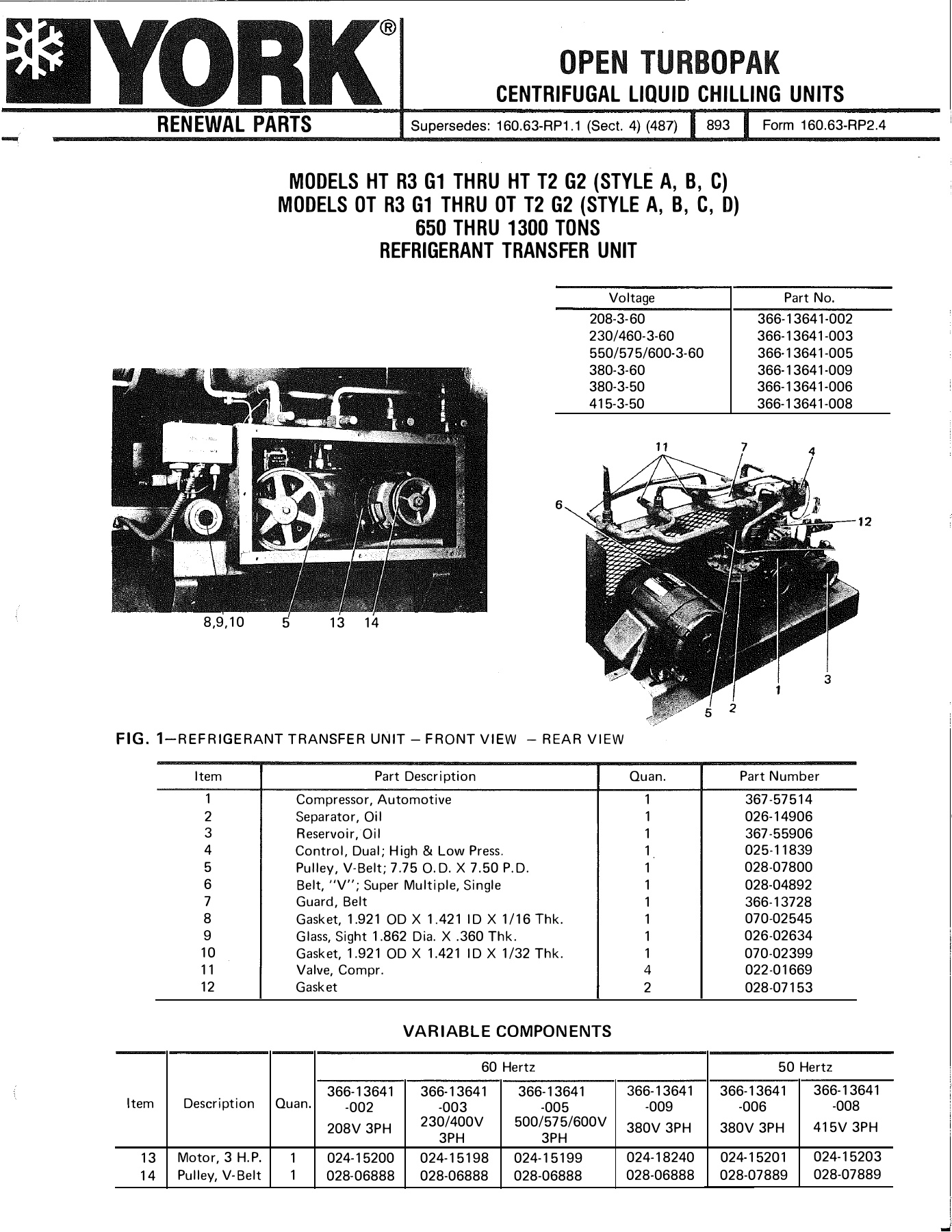

OPEN TURBOPAK
CENTRIFUGAL LIQUID CHILLING UNITS
RENEWAL PARTS
Supersedes: 160.63-RP1 .1 (Sect. 4) (487)
893
Form 160.63-RP2.4
8,9,10
MODELS HT R3 G1 THRU HT T2 G2 (STYLE A, B, C)
MODELS OT R3 G1 THRU OT T2 G2 (STYLE A, B, C, D)
650 THRU 1300 TONS
5
13 14
REFRIGERANT TRANSFER UNIT
6
Voltage
208-3-60
230/460-3-60
550/575/600-3-60
380-3-60
380-3-50
415-3-50
Part No.
366-13641-002
366-1 3641-003
366-13641-005
366-13641-009
366-13641-006
366-1 3641-008
FIG.
1-REFRIGERANT TRANSFER UNIT - FRONT VIEW - REAR VIEW
Item
Part Description
Quan.
Part Number
1
Compressor, Automotive
1
367-57514
2
Separator, Oil
1
026-14906
3
Reservoir, Oil
1
367-55906
4
Control, Dual; High & Low Press.
1
025-11839
5
Pulley, V-Belt; 7.75 O.D. X 7.50 P.D.
1
028-07800
6
Belt, "V"; Super Multiple, Single
1
028-04892
7
Guard, Belt
1
366-13728
8
Gasket, 1.921 OD X 1.421 ID X 1/16 Thk.
1
070-02545
9
Glass, Sight 1.862 Dia. X .360 Thk.
1
026-02634
10
Gasket, 1.921 OD X 1.421 ID X 1/32 Thk.
1
070-02399
11
Valve, Compr.
4
022-01669
12
Gasket
2
028-07153
VARIABLE COMPONENTS
60 Hertz
50 Hertz
366-13641
366-13641
366-13641
366-13641
366-13641
366-13641
Item
Description
Quan.
-002
-003
-005
-009
-006
-008
208V 3PH
230/400V
500/575/600V
3PH
3PH
380V 3PH
380V 3PH
415V 3PH
13
Motor, 3 H.P.
1
024-15200
024-15198
024-15199
024-18240
024-15201
024-15203
14
Pulley, V-Belt
1
028-06888
028-06888
028-06888
028-06888
028-07889
028-07889
....
