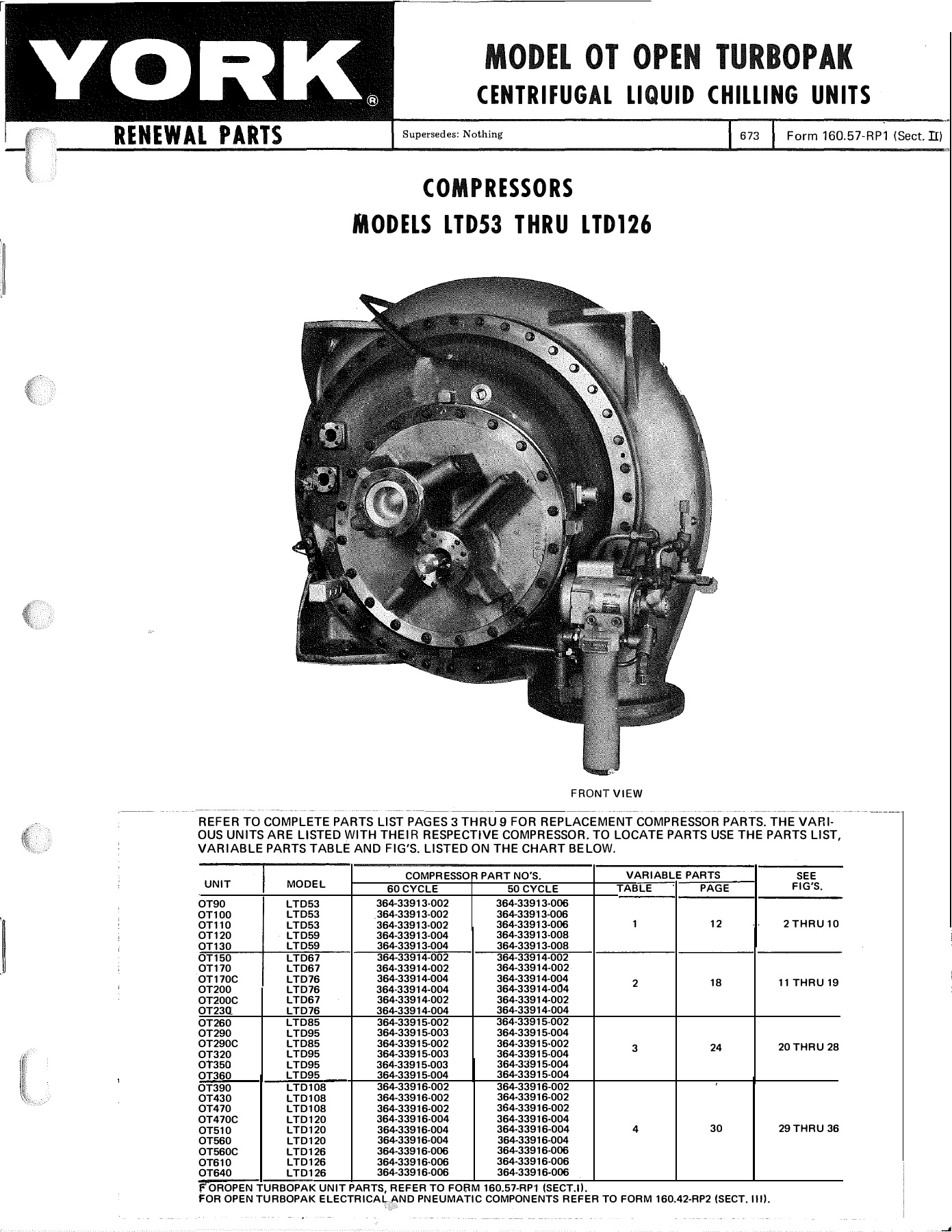

MODEL OT OPEN TURBOPAK
CENTRIFUGAL LIQUID CHILLING UNITS
Supersedes: Nothing
COMPRESSORS
MODELS LTD53 THRU LTD126
FRONT VIEW
673
Form 160.57-RP1 (Sect. Il)
REFER TO COMPLETE PARTS LIST PAGES 3 THAU 9 FOR REPLACEMENT COMPRESSOR PARTS. THE VARI
OUS UNITS ARE LISTED WITH THEIR RESPECTIVE COMPRESSOR. TO LOCATE PARTS USE THE PARTS LIST,
VARIABLE PARTS TABLE AND FIGS. LISTED ON THE CHART BELOW.
UNIT
MO DEL
COMPRE S SOR PART NOS .
VARIABLE PARTS
SEE
60 CYCLE
50 CYCLE
TABLE
PAGE
FIGS .
OT90
LTD53
364-33913-002
364-33913-006
OT100
LTD53
364-33913-002
364-33913-006
OT110
LTD53
364-33913-002
364-33913-006
1
12
2THRU 10
OT120
LTD59
364-33913-004
364-33913-008
OT130
LTD59
364-33913-004
364-33913-008
OT150
LTD67
364-33914-002
364-33914-002
OT170
LTD67
364-33914-002
364-33914-002
OT170C
LTD76
364-33914-004
364-33914-004
2
18
11 THRU 19
OT200
LTD76
364-33914-004
364-33914-004
OT200C
LTD67
364-33914-002
364-33914-002
OT23Q
LTD76
364-33914-004
364-33914-004
OT260
LTD85
364-33915-002
364-33915-002
OT290
LTD95
364-33915-003
364-33915-004
OT290C
LTD85
364-33915-002
364-33915-002
3
24
20THRU 28
OT320
LTD95
364-33915-003
364-33915-004
Ot350
LTD95
364-33915-003
364-33915-004
OT360
LTD95
364-33915-004
364-33915-004
OT390
LTD108
364-33916-002
364-33916-002
OT430
LTD108
364-33916-002
364-33916-002
OT470
LTD108
364-33916-002
364-33916-002
OT470C
LTD120
364-33916-004
364-33916-004
OT510
LTD120
364-33916-004
364-33916-004
4
30
29THRU 36
OT560
LTD120
364-33916-004
364-33916-004
OT560C
LTD126
364-33916-006
364-33916-006
OT610
LTD126
364-33916-006
364-33916-006
OT640
LTD126
364-33916-006
364-33916-006
FOR OPEN TURBOPAK UNIT PARTS REFER TO FOF,IM 160.57-RPl (SE CT.II.
FOR OPEN TURBOPAK ELE CTRI CA� AN D PNEUMATI C COMPONENTS REFER TO FORM 160.42-RP 2 (SE CT. Ill).
-
