ENERG

Y | C

OMBUSITION

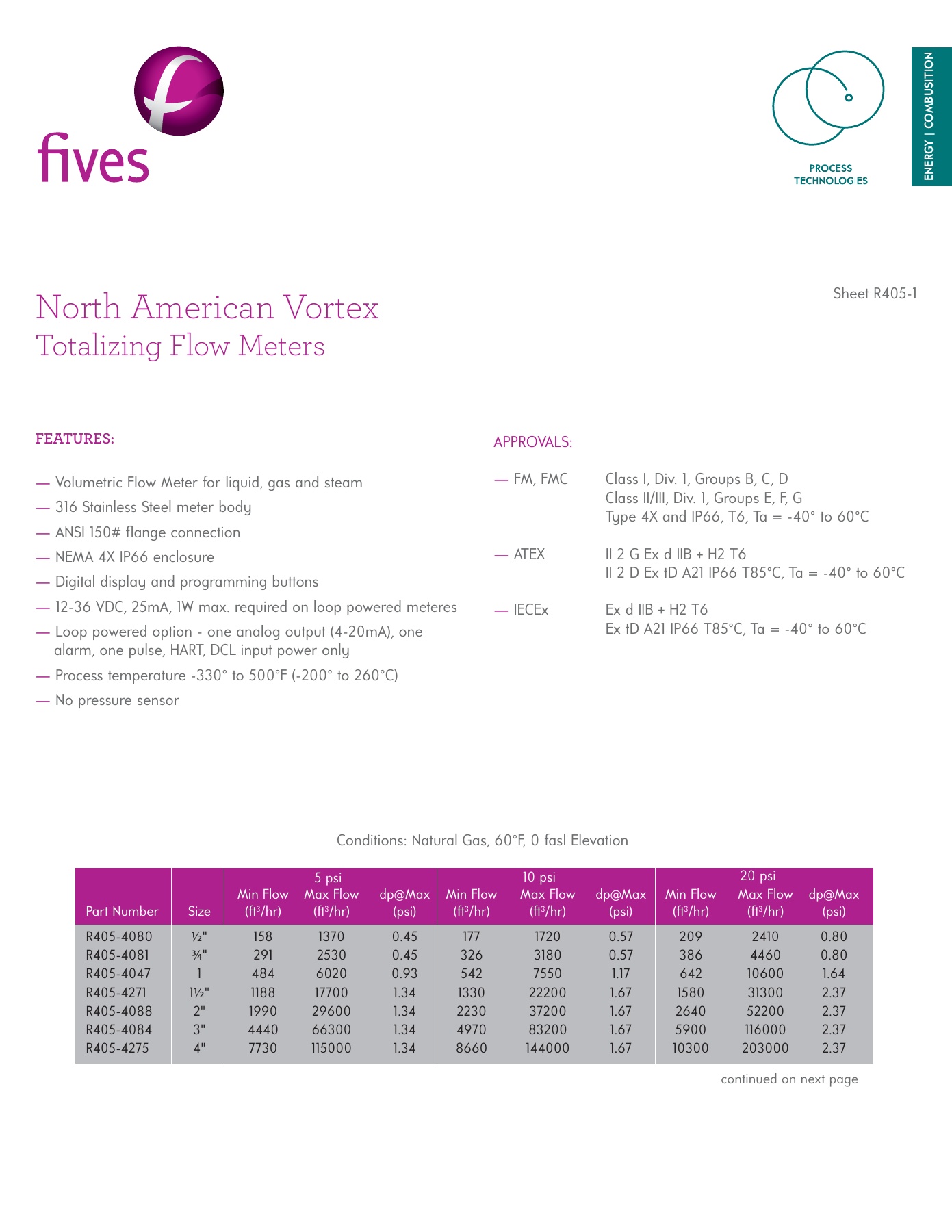

North American Vortex

Totalizing Flow Meters

FEATURES:

 Volumetric Flow Meter for liquid, gas and steam

 ANSI 150# fl ange connection

 NEMA 4X IP66 enclosure

 Digital display and programming buttons

 12-36 VDC, 25mA, 1W max. required on loop powered meteres

 Loop powered option - one analog output (4-20mA), one

    alarm, one pulse, HART, DCL input power only

 Process temperature -330° to 500°F (-200° to 260°C)

 No pressure sensor

Sheet R405-1

APPROVALS:

 FM, FMC

Class I, Div. 1, Groups B, C, D





Class II/III, Div. 1, Groups E, F, G





Type 4X and IP66, T6, Ta = -40° to 60°C

 ATEX

II 2 G Ex d IIB + H2 T6





II 2 D Ex tD A21 IP66 T85°C, Ta = -40° to 60°C

 IECEx

Ex d IIB + H2 T6





Ex tD A21 IP66 T85°C, Ta = -40° to 60°C







Min Flow  Max Flow

dp@Max  Min Flow

Max Flow

dp@Max

Min Flow

Max Flow  dp@Max

 Part Number

Size

(ft

3

/hr) (ft

3

/hr) (psi) (ft

3

/hr) (ft

3

/hr) (psi) (ft

3

/hr) (ft

3

/hr) (psi)

 R405-4080

½

" 158 1370 0.45 177  1720 0.57 209  2410 0.80

 R405-4081

¾

" 291 2530 0.45 326  3180 0.57 386 4460

0.80

 R405-4047

484

6020

0.93

542

7550

1.17

642

10600

1.64

 R405-4271

1

½

" 1188 17700  1.34 1330  22200  1.67  1580  31300 2.37

 R405-4088

2"

1990

29600

1.34

2230

37200

1.67

2640

52200

2.37

 R405-4084

3"

4440

66300

1.34

4970

83200

1.67

5900

116000

2.37

 R405-4275

4"

7730

115000

1.34

8660

144000

1.67

10300

203000

2.37

Conditions: Natural Gas, 60°F, 0 fasl Elevation

5 psi

10 psi

20 psi

continued on next page

Catalog Combustion 2021 - Page 1727
