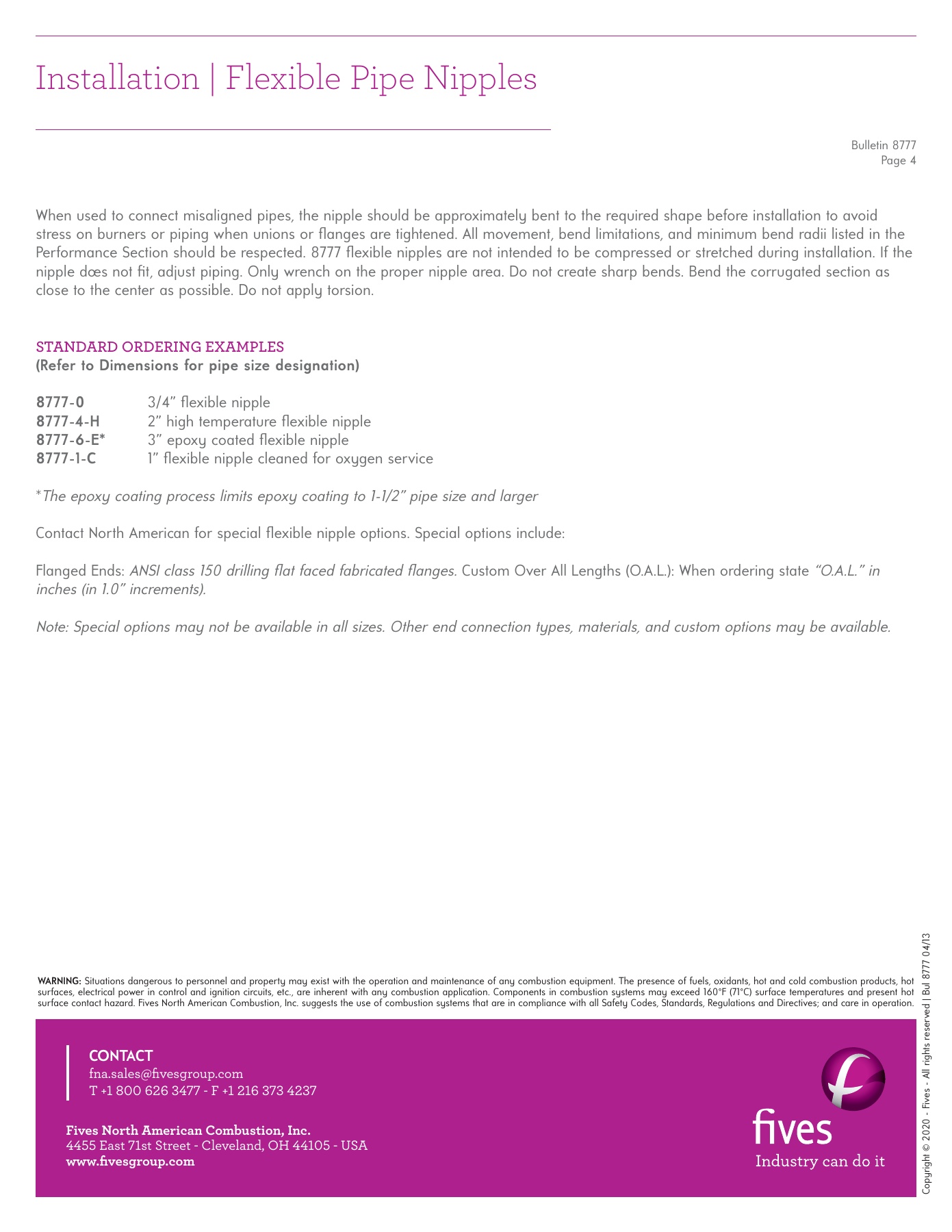

When used to connect misaligned pipes, the nipple should be approximately bent to the required shape before installation to avoid
stress on burners or piping when unions or fl anges are tightened. All movement, bend limitations, and minimum bend radii listed in the
Performance Section should be respected. 8777 fl exible nipples are not intended to be compressed or stretched during installation. If the
nipple dœ s not fi t, adjust piping. Only wrench on the proper nipple area. Do not create sharp bends. Bend the corrugated section as
close to the center as possible. Do not apply torsion.
STANDARD ORDERING EXAMPLES
(Refer to Dimensions for pipe size designation)
8777-0
3/4” fl exible nipple
8777-4-H
2” high temperature fl exible nipple
8777-6-E*
3” epoxy coated fl exible nipple
8777-1-C
1”
fl exible nipple cleaned for oxygen service
*
The epoxy coating process limits epoxy coating to 1-1/2” pipe size and larger
Contact North American for special fl exible nipple options. Special options include:
Flanged Ends:
ANSI class 150 drilling fl at faced fabricated fl anges.
Custom Over All Lengths (O.A.L.): When ordering state
“O.A.L.” in
inches (in 1.0” increments).
Note: Special options may not be available in all sizes. Other end connection types, materials, and custom options may be available.
