Fives North American Combustion, Inc., 4455 East 71st Street, Cleveland, OH 44105 USA, Phone 216.271.6000

Fax 216.641.7852 email: fna.sales@fivesgroup.com • www.fivesgroup.com/fivesna

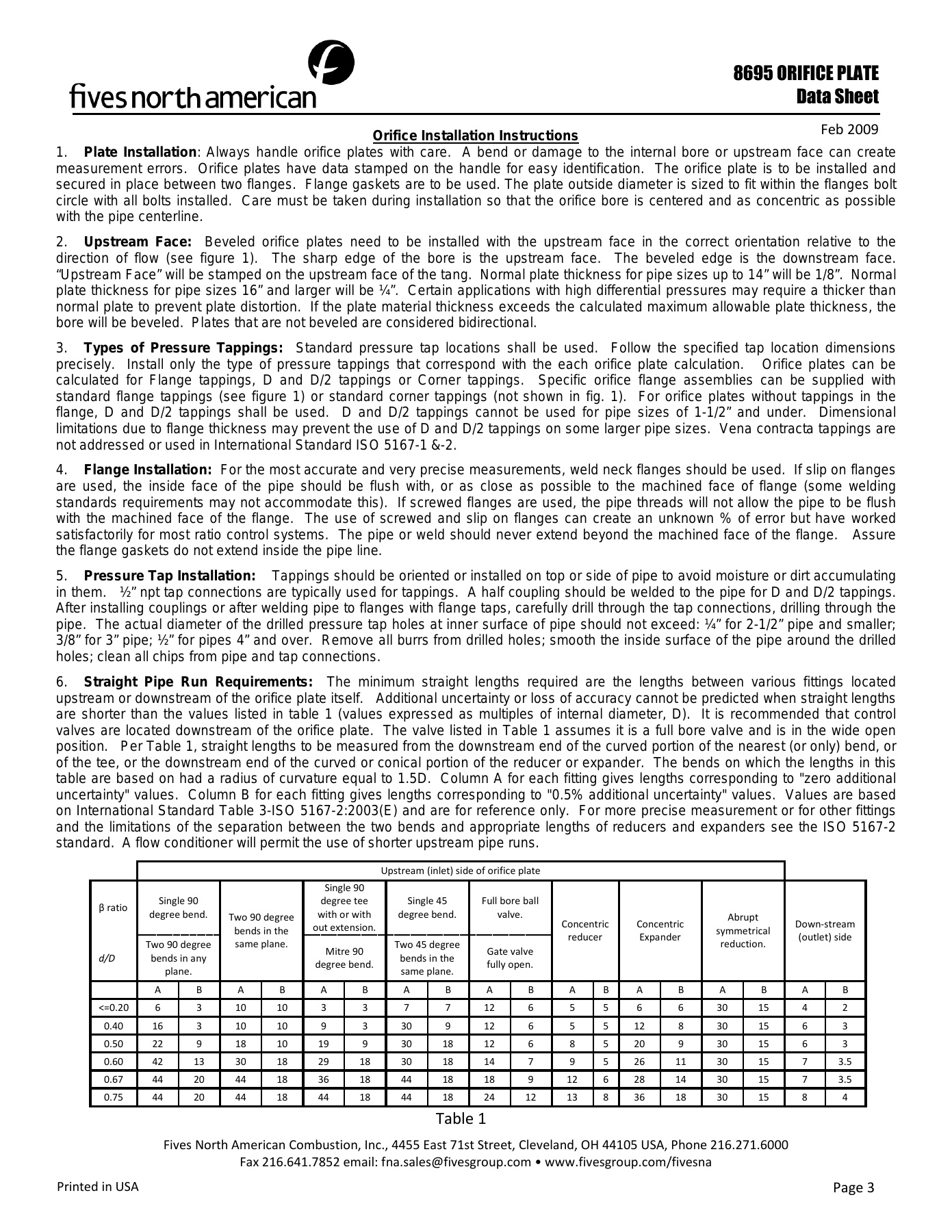

8695 ORIFICE PLATE



Data Sheet




Printed in USA

Page 3

Feb 2009



Orifice Installation Instructions

1.  Plate  Installation:  Always  handle  orifice  plates  with  care.    A  bend  or  damage  to  the  internal  bore  or  upstream  face  can  create
measurement  errors.    Orifice plates  have  data  stamped  on the  handle  for  easy  identification.    The  orifice  plate  is  to  be installed  and
secured in place between two flanges.  Flange gaskets are to be used. The plate outside diameter is sized to fit within the flanges bolt
circle with all bolts installed.  Care must be taken during installation so that the orifice bore is centered and as concentric as possible
with the pipe centerline.

2.  Upstream  Face:    Beveled  orifice  plates  need  to  be  installed  with  the  upstream  face  in  the  correct  orientation  relative  to  the
direction  of  flow  (see  figure  1).    The  sharp  edge  of  the  bore  is  the  upstream  face.    The  beveled  edge  is  the  downstream  face.
“Upstream Face” will be stamped on the upstream face of the tang.  Normal plate thickness for pipe sizes up to 14” will be 1/8”.  Normal
plate thickness for pipe sizes 16” and larger will be ¼”.  Certain applications with high differential pressures may require a thicker than
normal plate to prevent plate distortion.  If the plate material thickness exceeds the calculated maximum allowable plate thickness, the
bore will be beveled.  Plates that are not beveled are considered bidirectional.

3.  Types  of  Pressure  Tappings:    Standard  pressure  tap  locations  shall  be  used.    Follow  the  specified  tap  location  dimensions
precisely.    Install  only  the  type  of  pressure  tappings  that  correspond  with  the  each  orifice  plate  calculation.      Orifice  plates  can  be
calculated  for  Flange  tappings,  D  and  D/2  tappings  or  Corner  tappings.    Specific  orifice  flange  assemblies  can  be  supplied  with
standard  flange  tappings  (see  figure  1)  or  standard  corner  tappings  (not  shown  in  fig.  1).    For  orifice  plates  without  tappings  in  the
flange,  D  and  D/2  tappings  shall  be  used.    D  and  D/2  tappings  cannot  be  used  for  pipe  sizes  of  1-1/2”  and  under.    Dimensional
limitations due to flange thickness may prevent the use of D and D/2 tappings on some larger pipe sizes.  Vena contracta tappings are
not addressed or used in International Standard ISO 5167-1 &-2.

4.  Flange Installation:  For the most accurate and very precise measurements, weld neck flanges should be used.  If slip on flanges
are  used,  the  inside  face  of  the  pipe  should  be  flush  with,  or  as  close  as  possible  to  the  machined  face  of  flange  (some  welding
standards requirements may not accommodate this).  If screwed flanges are used, the pipe threads will not allow the pipe to be flush
with  the  machined  face  of  the  flange.    The  use  of  screwed  and  slip  on  flanges  can  create  an  unknown  %  of  error  but  have  worked
satisfactorily for most ratio control systems.  The pipe or weld should never extend beyond the machined face of the flange.   Assure
the flange gaskets do not extend inside the pipe line.

5.  Pressure Tap Installation:    Tappings should be oriented or installed on top or side of pipe to avoid moisture or dirt accumulating
in them.   ½” npt tap connections are typically used for tappings.  A half coupling should be welded to the pipe for and D/2 tappings.
After installing couplings or after welding pipe to flanges with flange taps, carefully drill through the tap connections, drilling through the
pipe.  The actual diameter of the drilled pressure tap holes at inner surface of pipe should not exceed: ¼” for 2-1/2” pipe and smaller;
3/8” for 3” pipe; ½” for pipes 4” and over.  Remove all burrs from drilled holes; smooth the inside surface of the pipe around the drilled
holes; clean all chips from pipe and tap connections.

6.  Straight  Pipe  Run  Requirements:    The  minimum  straight  lengths  required  are  the  lengths  between  various  fittings  located
upstream or downstream of the orifice plate itself.   Additional uncertainty or loss of accuracy cannot be predicted when straight lengths
are  shorter  than  the  values  listed  in  table  1  (values  expressed  as  multiples  of  internal  diameter,  D).    It  is  recommended  that  control
valves are located downstream of the orifice plate.  The valve listed in Table 1 assumes it is a full bore valve and is in the wide open
position.   Per Table 1, straight lengths to be measured from the downstream end of the curved portion of the nearest (or only) bend, or
of the tee, or the downstream end of the curved or conical portion of the reducer or expander.  The bends on which the lengths in this
table are based on had a radius of curvature equal to 1.5D.  Column A for each fitting gives lengths corresponding to "zero additional
uncertainty" values.  Column B for each fitting gives lengths corresponding to "0.5% additional uncertainty" values.  Values are based
on International Standard Table 3-ISO 5167-2:2003(E) and are for reference only.  For more precise measurement or for other fittings
and the limitations of the separation between the two bends and appropriate lengths of reducers and expanders see the ISO 5167-2
standard.  A flow conditioner will permit the use of shorter upstream pipe runs.



Upstream (inlet) side of orifice plate





β ratio

Single 90

degree bend.

Two 90 degree

bends in the

same plane.

Single 90

degree tee

with or with

out extension.

Single 45

degree bend.

Full bore ball

valve.

Concentric

reducer

Concentric

Expander

Abrupt

symmetrical

reduction.

Down-stream

(outlet) side

d/D

Two 90 degree

bends in any

plane.

Mitre 90

degree bend.

Two 45 degree

bends in the

same plane.

Gate valve
fully open.



<=0.20

10

10

12

30

15

0.40

16

10

10

30

12

12

30

15

0.50

22

18

10

19

30

18

12

20

30

15

0.60

42

13

30

18

29

18

30

18

14

26

11

30

15

3.5

0.67

44

20

44

18

36

18

44

18

18

12

28

14

30

15

3.5

0.75

44

20

44

18

44

18

44

18

24

12

13

36

18

30

15

















Table 1
