WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
Flange Gaskets
:
Ring gaskets are
available as a convenient fl ange gasket material for use on ANSI raised face fl anges. They are made of fl exible
graphite with a 0.002" thick SST insert. Overall thickness is
1⁄16
".
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts
r
eser
ved | Bulle
tin 8632 04/19
Bulletin 8632
page 7
8632
- - -
Pipe Code
6 = 3"
7 = 4"
8 = 6"
9 = 8"
Material
-S = 304SS
-316L = 316SS
Options
- (Blank) = none
-C = calibrated
-CC = calibrated, cleaned for oxygen

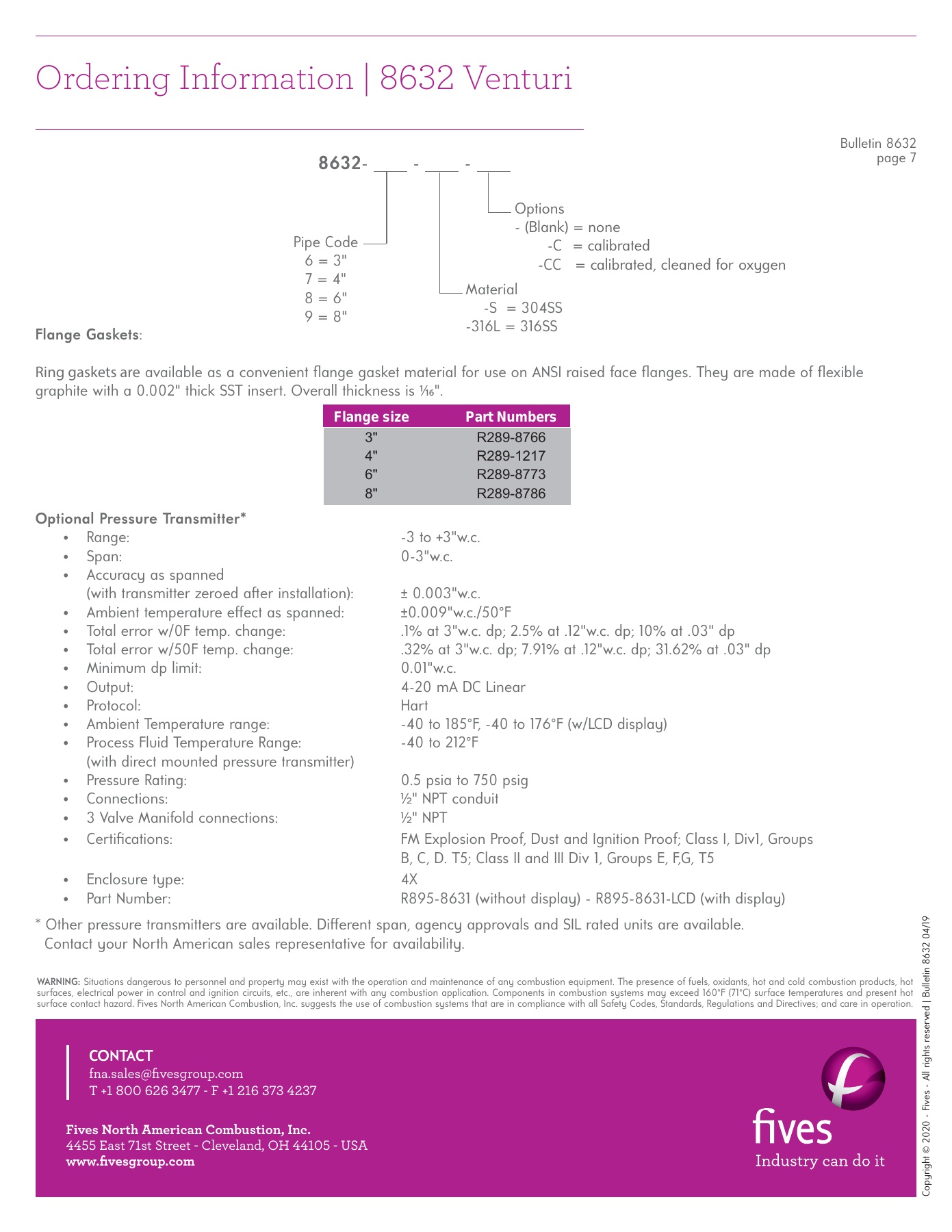

Ordering Information | 8632 Venturi
Flange size
Part Numbers
3"
R289-8766
4"
R289-1217
6"
R289-8773
8"
R289-8786
* Other pressure transmitters are available. Diff erent span, agency approvals and SIL rated units are available.
Contact your North American sales representative for availability.
Optional Pressure Transmitter*
• Range:
-3 to +3"w.c.
•
Span:
0-3"w.c.
• Accuracy as spanned
(with transmitter zero ed aft er installation):
± 0.003"w.c.
• Ambient temperature eff ect as spanned:
±0.009"w.c./50°F
• Total error w/0F temp. change:
.1% at 3"w.c. dp; 2.5% at .12"w.c. dp; 10% at .03" dp
• Total error w/50F temp. change:
.32% at 3"w.c. dp; 7.91% at .12"w.c. dp; 31.62% at .03" dp
• Minimum dp limit:
0.01"w.c.
• Output:
4-20 mA DC Linear
•
Protocol:
Hart
• Ambient Temperature range:
-40 to 185°F, -40 to 176°F (w/LCD display)
• Process Fluid Temperature Range:
-40 to 212°F
(with direct mounted pressure transmitter)
• Pressure Rating:
0.5 psia to 750 psig
• Connections:
½" NPT conduit
• 3 Valve Manifold connections:
½" NPT
• Certifi cations:
FM Explosion Proof, Dust and Ignition Proof; Class I, Div1, Groups
B, C, D. T5; Class II and III Div 1, Groups E, F,G, T5
•
Enclosure
type:
4X
• Part Number:
R895-8631 (without display) - R895-8631-LCD (with display)
