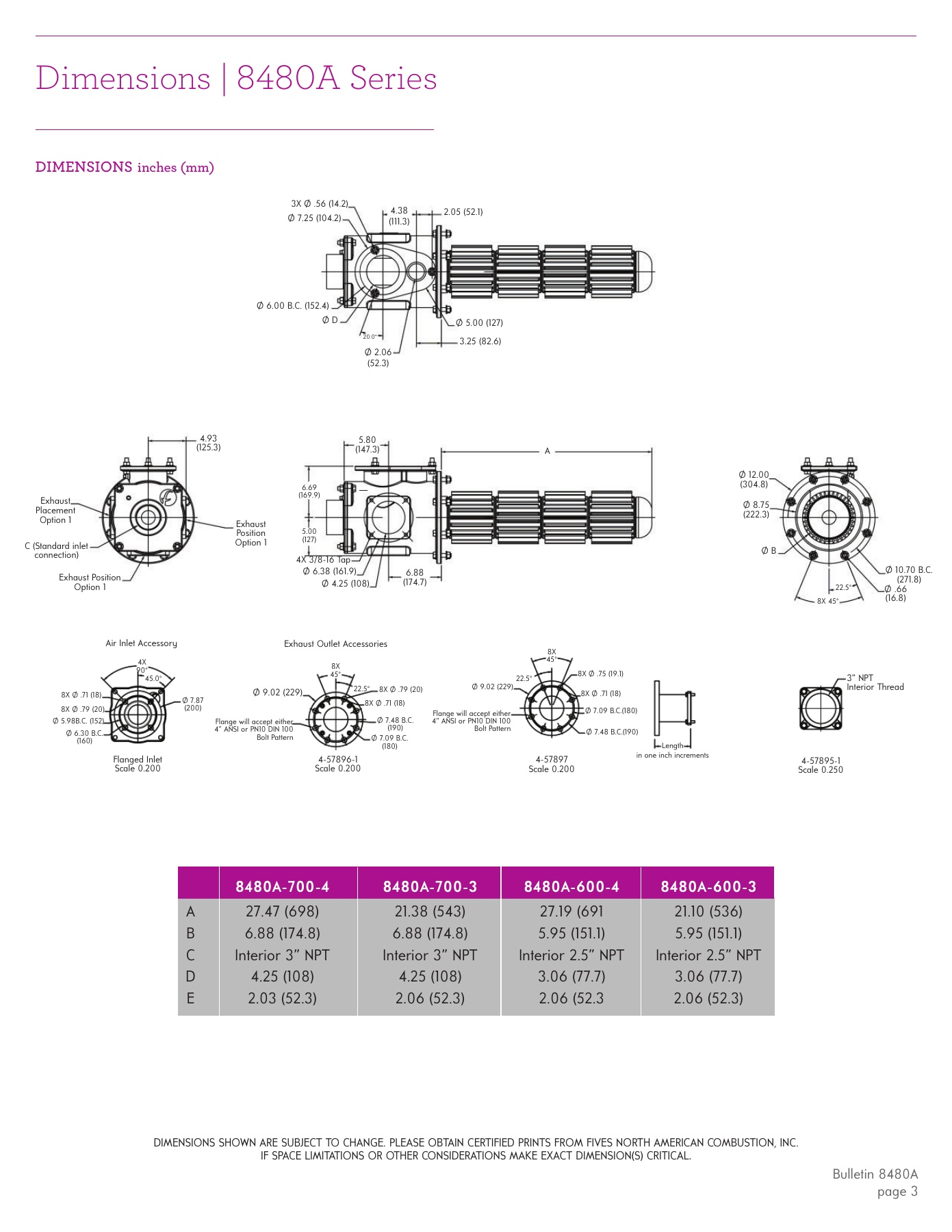

DIMENSIONS
inches (mm)
DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSTION, INC.
IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL
.
Bulletin 8480A
page 3
Dimensions | 8480A Series
3” NPT
Interior Thread
4-57895-1
Scale 0.250
Length
in one inch increments
4-57897
Scale 0.200
4-57896-1
Scale 0.200
Flanged Inlet
Scale 0.200
Exhaust Outlet Accessories
Air Inlet Accessory
Ø 7.48 B.C.(190)
Ø 7.48 B.C.
(190)
Ø 7.09 B.C.(180)
Ø 7.09 B.C.
(180)
8X Ø .71 (18)
8X Ø .71 (18)
8X Ø .75 (19.1)
8X Ø .79 (20)
Flange will accept either
4” ANSI or PN10 DIN 100
Bolt Pattern
Flange will accept either
4” ANSI or PN10 DIN 100
Bolt Pattern
Ø 9.02 (229)
Ø 9.02 (229)
8X Ø .71 (18)
8X Ø .79 (20)
Ø 5.98B.C. (152)
Ø 6.30 B.C.
(160)
45.0°
Ø 7.87
(200)
22.5°
22.5°
8X
45°
8X
45°
4X
90°
8480A-700-4 8480A-700-3 8480A-600-4
8480A-600-3
A
27.47 (698)
21.38 (543)
27.19 (691
21.10 (536)
B
6.88 (174.8)
6.88 (174.8)
5.95 (151.1)
5.95 (151.1)
C
Interior 3” NPT
Interior 3” NPT
Interior 2.5” NPT
Interior 2.5” NPT
D
4.25 (108)
4.25 (108)
3.06 (77.7)
3.06 (77.7)
E
2.03 (52.3)
2.06 (52.3)
2.06 (52.3
2.06 (52.3)
Ø 6.00 B.C. (152.4)
Ø 7.25 (104.2)
3X Ø .56 (14.2)
Ø 5.00 (127)
Ø D
Ø 2.06
(52.3)
2.05 (52.1)
3.25 (82.6)
4.93
(125.3)
Exhaust
Placement
Option 1
6.69
(169.9)
5.00
(127)
Ø 6.38 (161.9)
6.88
(174.7)
5.80
(147.3)
4X 3/8-16 Tap
Ø 4.25 (108)
Ø 12.00
(304.8)
Ø 8.75
(222.3)
Ø B
Ø 10.70 B.C.
(271.8)
Ø .66
(16.8)
8X 45°
22.5°
A
C (Standard inlet
connection)
Exhaust Position
Option 1
Exhaust
Position
Option 1
4.38
(111.3)
20.0°
