Exhaust

Cold Air

Hot Air

Accessories (Must be Ordered Separately)

Replacement Parts



Air inlet fl ange (Cast Iron)

4-1695-3

4-1695-3



Air inlet fl ange gasket (Graphite with SST shim)

4-47579-2

4-47579-2

 Air

fl ange bolt (4 Reqd.) SST passivated

R069-2670-SP

R069-2670-SP

 Air

fl ange nut (4 Reqd.) SST passivated

R510-8000-SP

R510-8000-SP



FGR cover plate (304 stainless)

4-49872-1

4-49872-1

 FGR

fl ange gasket (Thermiculite)

4-50999-1

4-50999-1

 FGR

fl ange bolt (2 Reqd.) SST passivated

R066-6750-SP

R066-6750-SP

 FGR

fl ange nut (2 Reqd.) SST passivated

R510-8252-SP

R510-8252-SP



Exhaust outlet fl ange gasket (Graphite with SST shim)

4-49956-3

4-49955-2

 Mounting

fl ange gasket (Thermiculite)

10

4-49956-2

4-49955-1

  Hot air outlet fl ange gasket (Graphite with SST shim)

11

4-49956-1

4-49956-1

  Exhaust outlet companion fl ange (304 stainless)

Not Shown

4-49974-2

4-49975-1

  Hot air outlet companion fl ange (304 stainless)

Not Shown

4-49774-1

4-49774-1



Item

Item

8480-600, -500, -600

8480-700

8480 Recuperator Parts List

Bulletin 8480

page 4

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

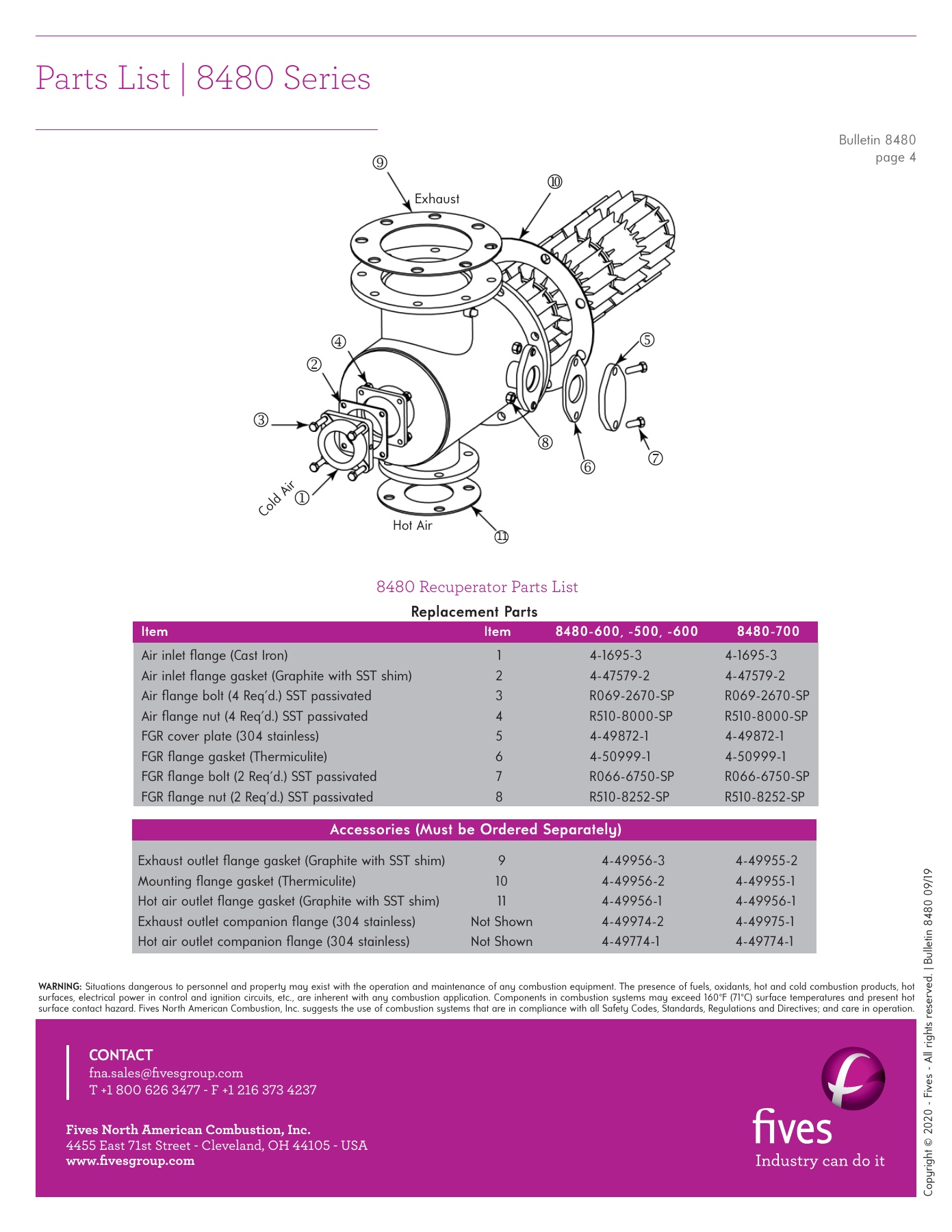

Parts List | 8480 Series

Fives North American Combustion, Inc.

4455 East 71st Street - Cleveland, OH 44105 - USA

www.fi vesgroup.com

CONTACT

fna.sales@fi vesgroup.com

T +1 800 626 3477 - F +1 216 373 4237

Catalog Combustion 2021 - Page 1543

Fives Group
FIVES GROUP
FIVES GROUP-FIVES GROUP-1543-1529
