Ref: Dimensions

&

 Instructions 1857-1

1857-01,-0,-1,-3, and -4

1857-5-F, -6-F, and -7-F

F = fl anged--others threaded

Valve C

v

scfh of 0.6 sp gr

 designation

co effi

  cients

gas @ 1"w.c.



P

1857-01

19

1 100

1857-0

31

1 800

1857-1

48

2 780

1857-3

130

7 500

1857-4

220

12 700

 1857-5-F

310

20

200

 1857-6-F

510

32

300

 1857-7-F

870

52

000

C

v

 valve co effi

  cient is a valve’s capacity, in gpm of 60°F

water, for 1 psi pressure drop.

Explosions that occur in multi-burner gas fi red industrial fur-
naces when they are being lighted are frequently the result of
someone carelessly leaving a gas burner shutoff  valve open
aft er the previous shutdown. This can allow the furnace to be
fi lled with unburned fuel as soon as the main valve is opened.
Danger of such explosions is substantially reduced by using a
Supervising Gas Valve at each burner.

A Supervising Gas Valve is drilled with a small secondary
passage located so it is open only when the main passage
is closed. A checking pressure line is connected through the
secondary passage of each valve to a pressure switch at the
end of that line. The switch cannot close a circuit to the solenoid
shutoff  valves unless all supervising valves are completely
closed. If the solenoid shutoff  valves cannot be opened, a
supervising valve is probably open. It must be closed and the
furnace purged before any pilots or burners are lighted.

Required equipment is simple to install and operate. It should
be arranged to check pilots as well as main burners. Solenoid
shutoff  valves are wired to close off  fuel supply in the event of
air or fuel pressure failure.

In the interest of safety, Fives joins NFPA and insurance
underwriters in urging the use of electronic fl ame supervision
on most fuel burning applications. The decision whether or
not to incorporate an 1857 Valve system rests with the owner
and his insurance underwriter. If desired, Fives can provide
information concerning standards as they apply to your
application.

1857 Supervising Gas Valves cannot be used for oil.

The maximum working pressure is 50 psi.

Auxiliary equipment required for complete Supervising
Valve system:

Solenoid Shutoff  Valves:

 Manual Reset such as North

American’s 1518.

Pressure Switches:

 From Bulletin 8757, select an approved

normally open switch for the checking line. Also use normally
open switches for low gas and low air protection; the high gas
pressure switch is normally closed.

8647-01 Filter:

 Body is zinc plated steel. Replaceable fi lter

car-tridge (2-4920-1) is steel and cellulose, impregnated with
phenolic resin. Maximum temperature 275°F.

8657-03 Bleed Orifi ce:

 Brass.

8647-01 Filter

Sheet 1857

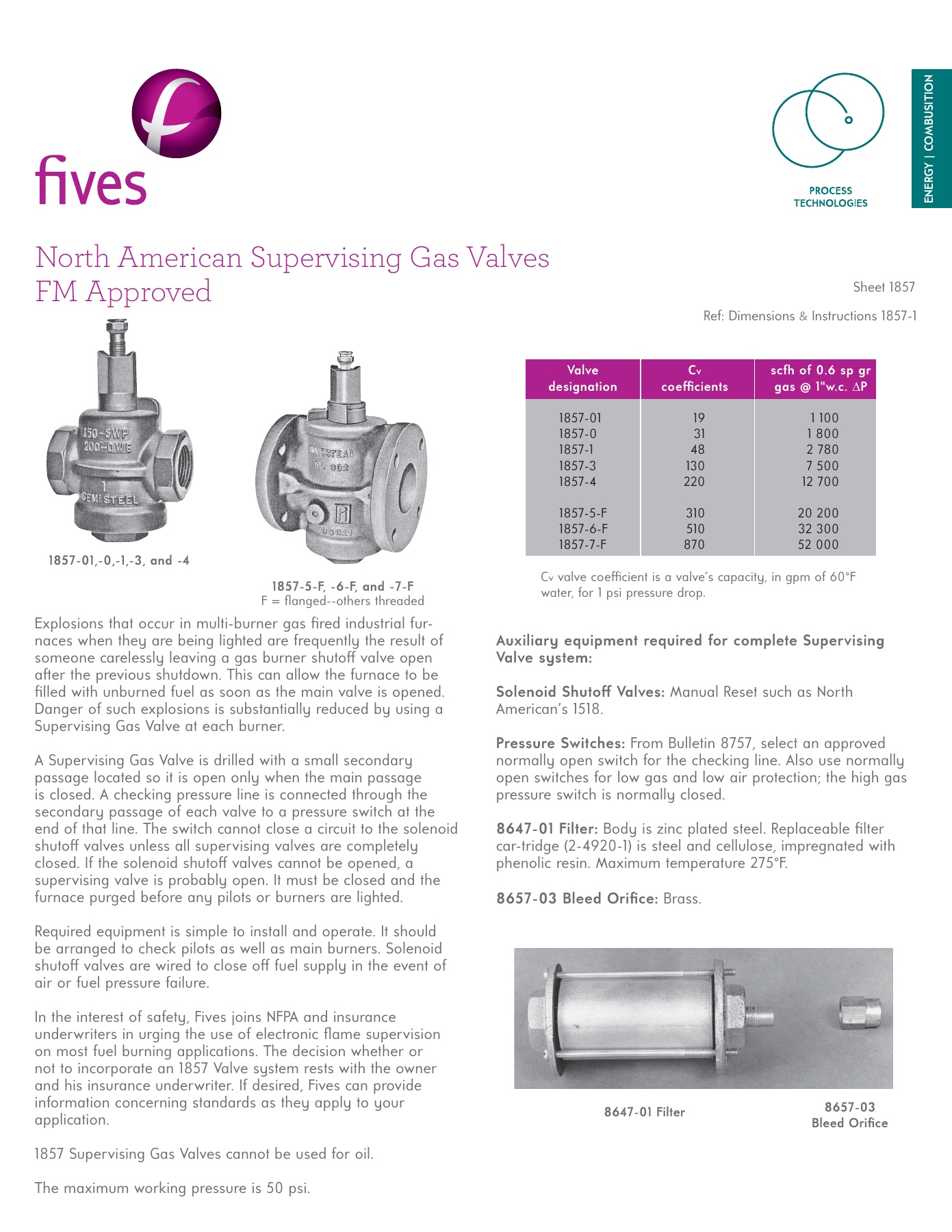

North American Supervising Gas Valves
FM Approved

8657-03

Bleed Orifi ce
