Weight
Valve Designation
A
B
C
D
E
F
G
H
lb
1813-02, 1813-02-K 0
&
A thru D
3⁄8*
1
1⁄8
1
5⁄16
2
9⁄16
3
7⁄8
— — 2
9⁄16
1
½
1813M-02
3⁄8
1
1⁄8
1
5⁄16
2
9⁄16
3
7⁄8
1
9⁄16
4
¾
2
9⁄16
2
¾
1813-01
½
1
5⁄8
1
5⁄8
3
1⁄16
4
11⁄16
— — 2
7⁄8
3
¼
1813M-01
½
1
5⁄8
1
5⁄8
3
1⁄16
4
11⁄16
2
1⁄16
5
3⁄8
2
7⁄8
3
¾
DIMENSIONS
inches
dimensions in inches
To order, specify: 1813-(code for pipe size)-(capacity letter where applicable) (K for cutdown handle, if applicable).
Examples:
1813-02-B Sensitrol Oil Valve
1813-02-BK Sensitrol Oil Valve
To order 1813M (Motorized) Sensitrol Valves use a similar scheme and either specify B and L, or add an X to 3rd term to indicate
without B and L.
Examples:
1813M-02-B Valve with B
&
L for 1612-E
1813M-02-BX Valve w/o B
&
L
DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSITON, INC.
IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL
.
Bulletin 1813
Page 3
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts r
eser
ved | Bulle
tin 1813 10/18
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
1816, 1813- -K
1813M

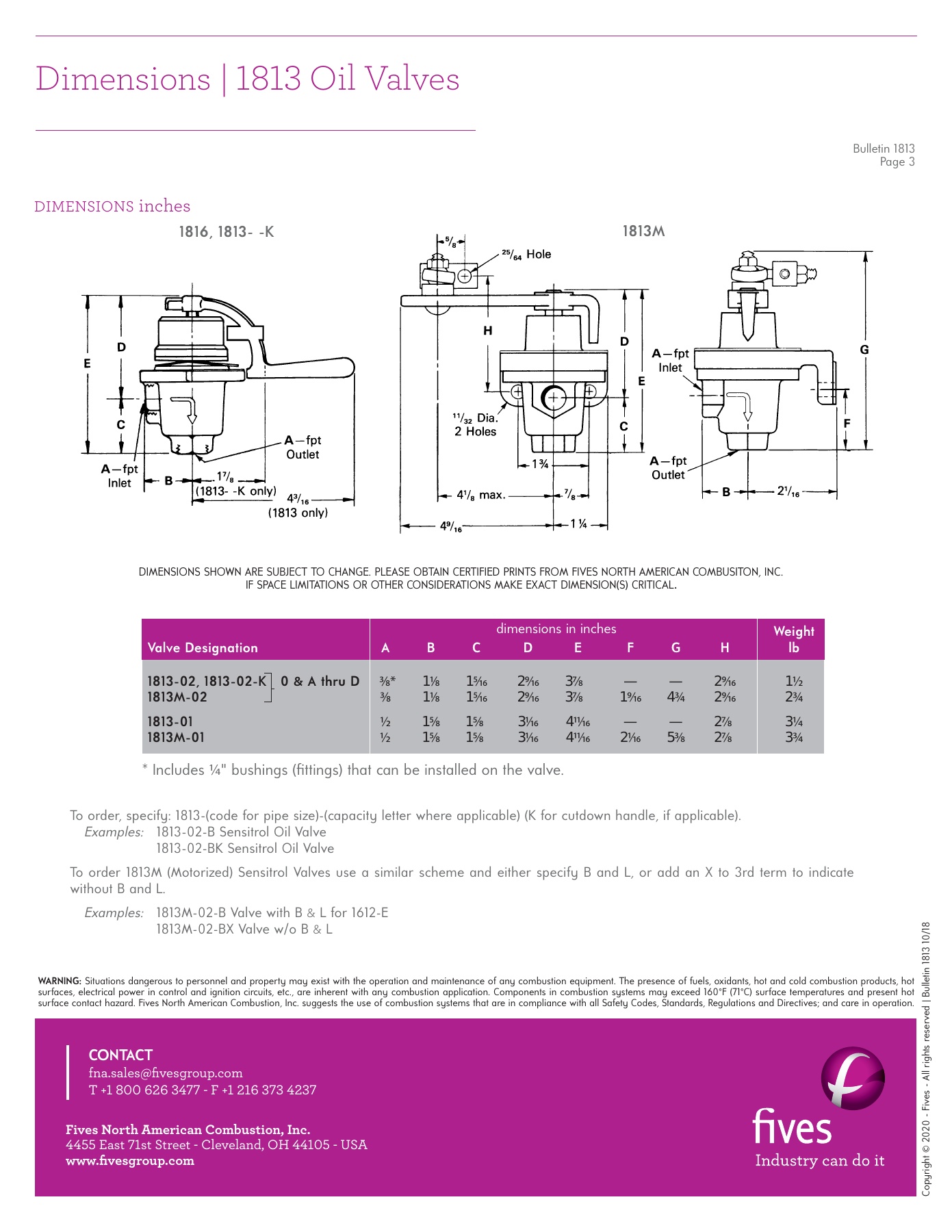

Dimensions | 1813 Oil Valves
* Includes
¼
" bushings (fi ttings) that can be installed on the valve.
