WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
TO ORDER PARTS, SPECIFY Part Number, Part Name, and Valve Designation
Example:
2-7007-10 Gas Cartridge Assembly for 1807B-2-C or 1807-2-C
I
tem Part Name 1807B-1-C 1807B-2-C
1807B-3-C
1807B-4-C
1807B-5-C
1807B-6-C
1
Body (brass 1807B)
2-1702-4
2-1677-4
2-1680-4
2-1682-4
2-3465-4
2-3468-4
Body
(cast iron 1807-C)
2-9169-1
2-9169-2
2-9169-3
2-9169-4
2-9169-5
2-9169-6
2
Gas Cartridge Assembly
2-7007-11
2-7007-12
2-7007-13
2-7007-14
2-7007-15
2-7007-16
3
Stuffi ng Box Cap
2-0682-1
2-0682-1
2-0682-1
2-0682-1
2-0682-1
2-0682-1
1
2
3
1⁄8
Shaded portion is
gas cartridge assy.

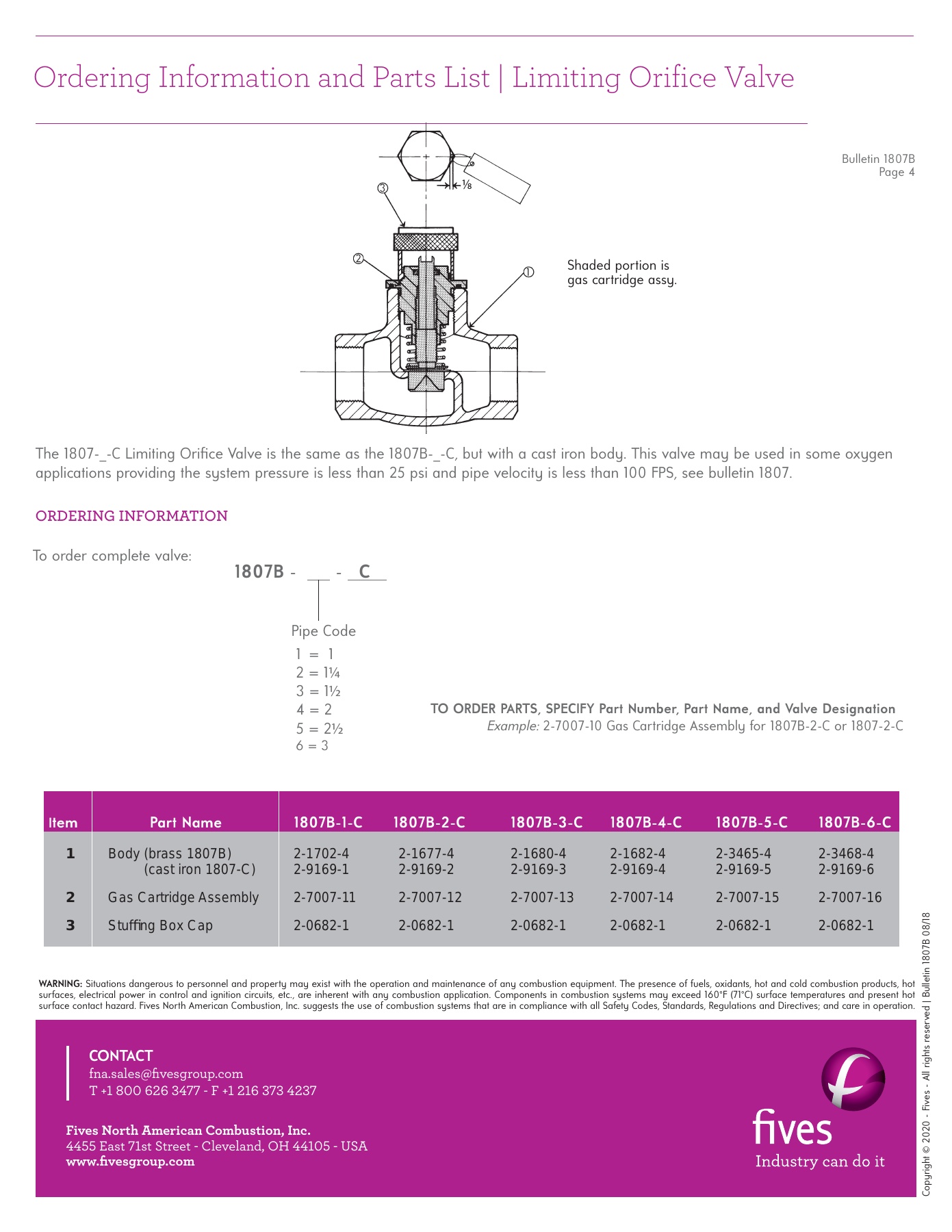

Ordering Information and Parts List | Limiting Orifice Valve
Bulletin 1807B
Page 4
ORDERING INFORMATION
To order complete valve:
1807B
- -
C
Pipe Code
1 = 1
2 = 1
¼
3 = 1
½
4 = 2
5 = 2
½
6 = 3
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts r
eser
ved | Bulle
tin 1807B 08/18
Fives North American Combustion, Inc.
4455 East 71st Street - Cleveland, OH 44105 - USA
www.fi vesgroup.com
CONTACT
fna.sales@fi vesgroup.com
T +1 800 626 3477 - F +1 216 373 4237
