DIMENSIONS

















Allen*

 Valve













Wt,

wrench

 designation

lb (kg)

size mm



1807-01 (M1807-01)



 ½  " NPT (ISO 7-Rp ½  )

1

11⁄16

(43) 3

3⁄8

(86) 2

11⁄32

(63)  

7⁄8

(22) 1

¾

(44)  1

½

(.68)





2.5



1807-0 (M1807-0) 



 ¾

  "  NPT (ISO 7-Rp ¾

  )

1

11⁄16

(43) 3

3⁄8

(86) 2

11⁄32

(63)

1 (25)

2 (51)

 1

¾

(.79)



4



1807-1 (M1807-1) 



1" NPT (ISO 7-Rp 1)

2

1⁄8

(54) 4

¼

(108) 2

21⁄32

(67) 1

5⁄32

(29) 2

5⁄16

(59)  2

¾

(1.25)



4



1807-2 (M1807-2) 



1

¼  " NPT

(ISO 7-Rp 1¼  )

2

7⁄16

(62) 4

7⁄8

(124) 2

7⁄8

(73) 1

7⁄16

(37) 2

7⁄8

(73)  4

¼

(1.93)



4



1807-3 (M1807-3) 



1

½  " NPT

(ISO 7-Rp 1½  )

2

5⁄8

(73) 5

¼

(133) 3

3⁄16

(81) 1

5⁄8

(41) 3

¼

(83)  5

½

(2.5)



4



1807-4 (M1807-4) 



2" NPT (ISO 7-Rp 2)

2

15⁄16

(75) 5

7⁄8

(149) 3

11⁄16

(94) 1

7⁄8

(48) 3

¾

(95)  7

½

(3.4)



6



1807-5 (M1807-5) 



2

½  " NPT

(ISO 7-Rp 2½  )

3

7⁄8

(98) 7

¾

(197) 4

7⁄32

(107) 2

7⁄16

(62) 4

7⁄8

(124) 12

½

(5.6)



6



1807-6 (M1807-6) 



3" NPT (ISO 7-Rp 3)

4

7⁄8

(124) 9

¾

(248) 5

9⁄16

(141) 2

15⁄16

(75) 5

7⁄8

(149) 20

(9.07)



6

1807-7**

 4"

Flanged 8

11⁄16

(221) 17

3⁄8

(441) 6

(152)  4

13⁄16

(122) 8

15⁄16

(227)



71 (32.2)

dimensions in inches (mm)

Bulletin 1807

Page 4

DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSTION, INC.

IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL

.

* Mixers purchased before 2017 use standard US Allen wrench sizes.
** Threaded companion fl anges included.

1807-01 Thru 1807-6

1807-7

Stuffi

  ng Box

Cap

Gas Cartridge Assembly

(includes all shaded parts)

Body

Flow

B

B

C

E

D

A

F

Socket Head Adjustment

(see table for Allen

wrench size)

Stuffi

  ng Box Cap

Body

Slotted Screwdriver
Adjustment

Gas Cartidge Assemby (all

shaded parts)

Flow

D

E

F

B

B

C

A

A

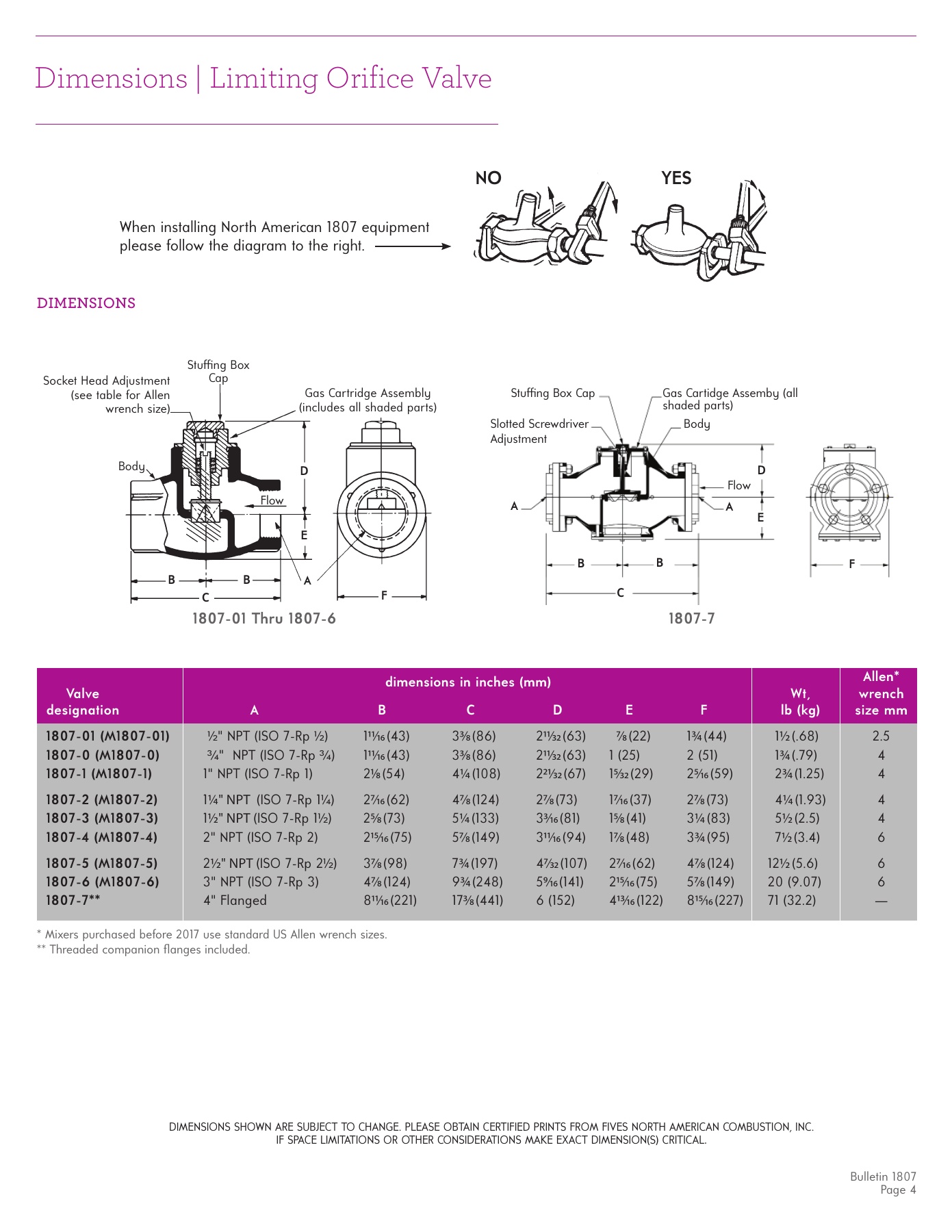

Dimensions | Limiting Orifice Valve

NO

YES

When installing North American 1807 equipment
please follow the diagram to the right.
