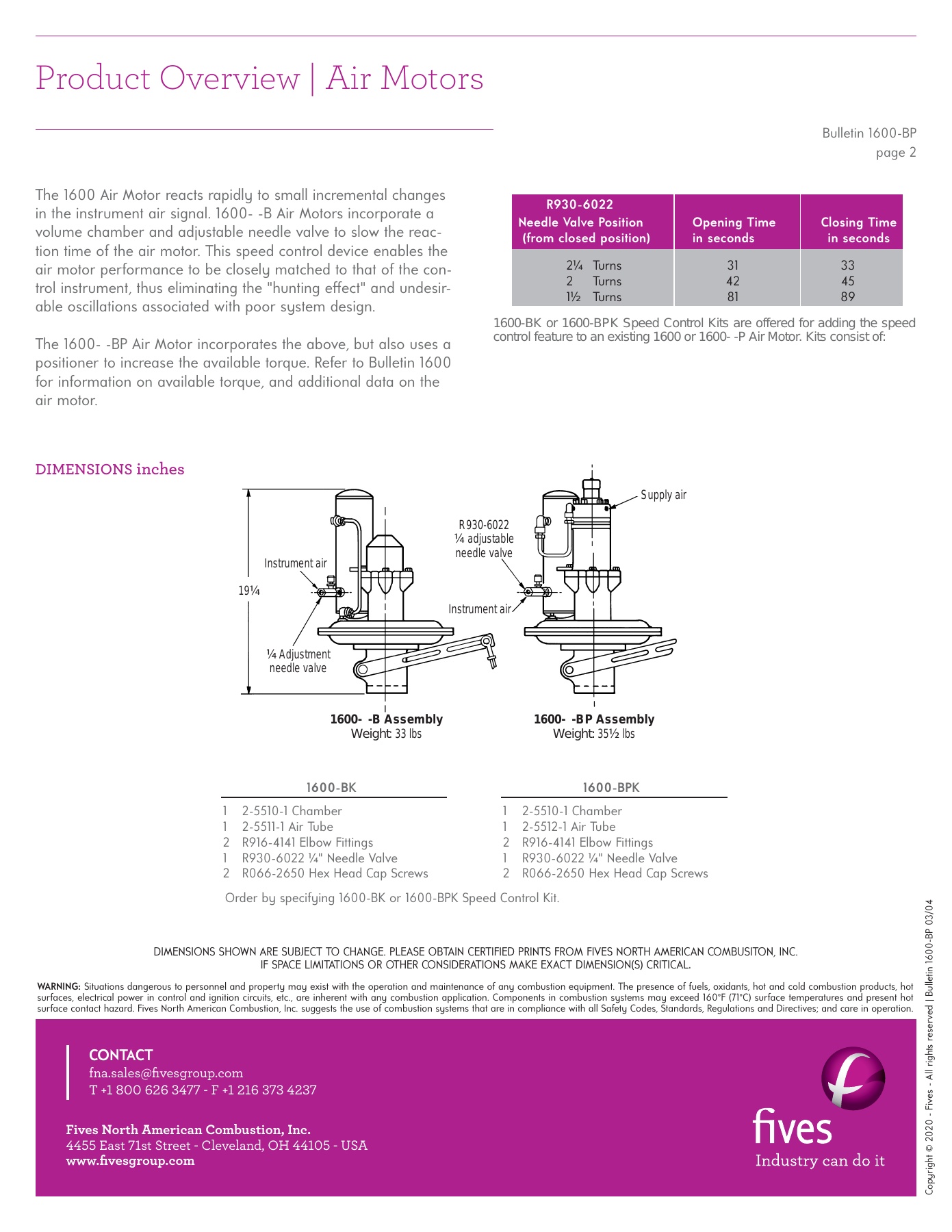

1600-BK 1600-BPK
1 2-5510-1
Chamber
1 2-5510-1
Chamber
1 2-5511-1 Air Tube
1 2-5512-1 Air Tube
2 R916-4141 Elbow Fittings
2 R916-4141 Elbow Fittings
1
R930-6022
¼
" Needle Valve
1 R930-6022
¼
" Needle Valve
2 R066-2650 Hex Head Cap Screws
2 R066-2650 Hex Head Cap Screws
Order by specifying 1600-BK or 1600-BPK Speed Control Kit.
DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSITON, INC.
IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL
.
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts
r
eser
ved | Bulle
tin 1600-BP 03/04
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
1600-BK or 1600-BPK Speed Control Kits are offered for adding the speed
control feature to an existing 1600 or 1600- -P Air Motor. Kits consist of:
Needle Valve Position
Opening Time
Closing Time
(from closed position)
in seconds
in seconds
2
¼
Turns
31
33
2
Turns
42
45
1
½
Turns
81
89
R930-6022
The 1600 Air Motor reacts rapidly to small incremental changes
in the instrument air signal. 1600- -B Air Motors incorporate a
volume chamber and adjustable needle valve to slow the reac-
tion time of the air motor. This speed control device enables the
air motor performance to be closely matched to that of the con-
trol instrument, thus eliminating the "hunting eff ect" and undesir-
able oscillations associated with poor system design.
The 1600- -BP Air Motor incorporates the above, but also uses a
positioner to increase the available torque. Refer to Bulletin 1600
for information on available torque, and additional data on the
air motor.
1600- -B Assembly
Weight
: 33 lbs
1600- -BP Assembly
Weight:
35
½
lbs
Instrument air
¼
Adjustment
needle valve
19
¼
R930-6022
¼
adjustable
needle valve
Supply air
Instrument air
DIMENSIONS
inches
