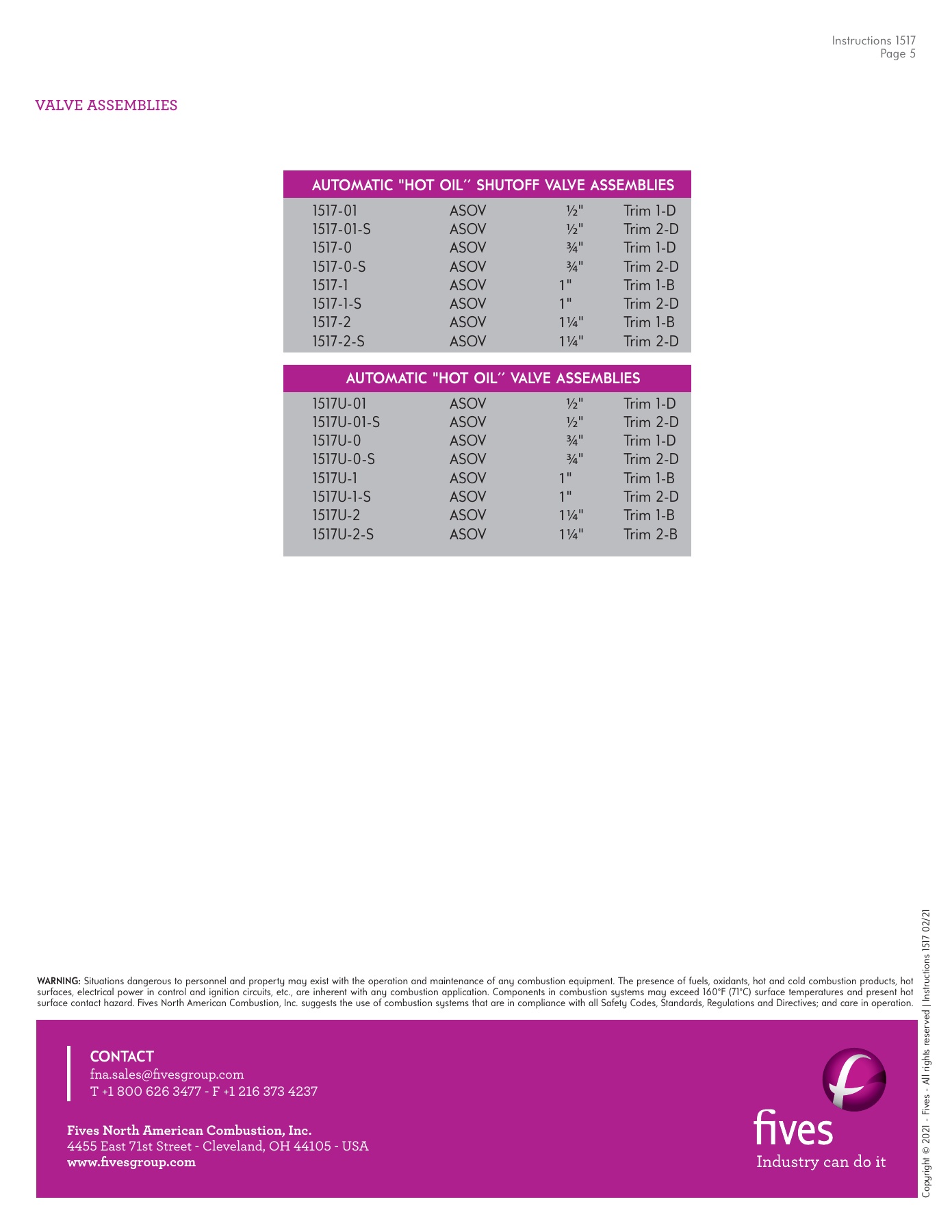

AUTOMATIC "HOT OIL SHUTOFF VALVE ASSEMBLIES
1517-01
ASOV
½
"
Trim 1-D
1517-01-S
ASOV
½
"
Trim 2-D
1517-0
ASOV
¾
"
Trim 1-D
1517-0-S
ASOV
¾
"
Trim 2-D
1517-1
ASOV
1
"
Trim 1-B
1517-1-S
ASOV
1
"
Trim 2-D
1517-2
ASOV
1¼
"
Trim 1-B
1517-2-S
ASOV
1¼
"
Trim 2-D
AUTOMATIC "HOT OIL VALVE ASSEMBLIES
1517U-01
ASOV
½
"
Trim 1-D
1517U-01-S
ASOV
½
"
Trim 2-D
1517U-0
ASOV
¾
"
Trim 1-D
1517U-0-S
ASOV
¾
"
Trim 2-D
1517U-1
ASOV
1
"
Trim 1-B
1517U-1-S
ASOV
1
"
Trim 2-D
1517U-2
ASOV
1¼
"
Trim 1-B
1517U-2-S
ASOV
1¼
"
Trim 2-B
Instructions 1517
Page 5
VALVE ASSEMBLIES
Cop
yr
igh
t © 2021 - F
iv
es - All r
igh
ts r
eser
ved | Instructions 1517 02/21
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
