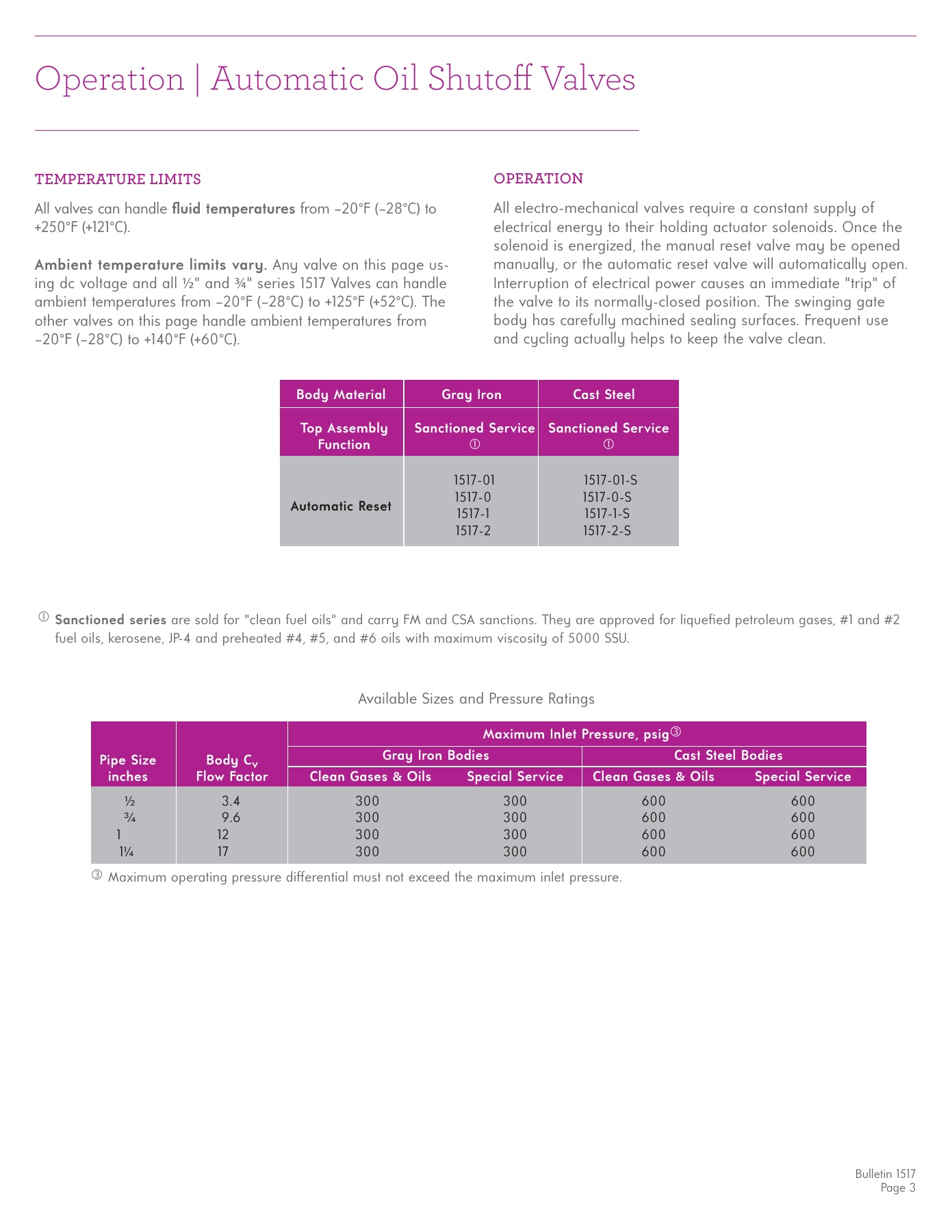

TEMPERATURE LIMITS
All valves can handle
fl uid temperatures
from –20°F (–28°C) to
+250°F (+121°C).
Ambient temperature limits vary.
Any valve on this page us-
ing dc voltage and all
½
" and
¾
" series 1517 Valves can handle
ambient temperatures from –20°F (–28°C) to +125°F (+52°C). The
other valves on this page handle ambient temperatures from
–20°F (–28°C) to +140°F (+60°C).
Body Material
Gray Iron
Cast Steel
Top Assembly
Sanctioned Service Sanctioned Service
Function
1517-01
1517-01-S
1517-0
1517-0-S
Automatic Reset
1517-1
1517-1-S
1517-2
1517-2-S
Sanctioned series
are sold for "clean fuel oils" and carry FM and CSA sanctions. They are approved for liquefi ed petroleum gases, #1 and #2
fuel oils, kerosene, JP-4 and preheated #4, #5, and #6 oils with maximum viscosity of 5000 SSU.
Available Sizes and Pressure Ratings
Pipe Size
Body C
v
inches
Flow Factor
Clean Gases
&
Oils
Special Service
Clean Gases
&
Oils
Special Service
½
3.4
300
300
600
600
¾
9.6
300
300
600
600
1
12
300
300
600
600
1¼
17
300
300
600
600
Gray Iron Bodies
Cast Steel Bodies
Maximum Inlet Pressure, psig
OPERATION
Bulletin 1517
Page 3
Operation | Automatic Oil Shutoff Valves
Maximum operating pressure diff erential must not exceed the maximum inlet pressure.
