Natural gas

inlet

compressed



Valve

Valve size,

CV,

0.62 sp gr

pressure,

air pressure,

  designation

inches

gpm

scfh at 1"

P psig

psig

 1447-01

 ½   6.3

  370  150  60-120



1447-0 

 ¾   9.8

  570  150  60-120



1447-1 

1  17.7

 1030

150

60-120



1447-2 

1¼  26  

 1510  105 60-120



1447-3 

1½  47  

 2720   67 60-120

 1447-4 

2  82  

 4750  45

60-120



1447-5 

2½ 126  

 7300  105  60-150



1447-6 

3 186  

10800  75 50-150

Max. fl uid

Actuator

CAPACITIES

SPECIFICATIONS

Maximum fl uid temperature (½" - 2")

285°F

Maximum fl uid temperature (2½" and 3")

355°F

Maximum compressed air temperature (½" - 2")

140°F

Maximum compressed air temperature (2½" and 3")

175°F

Maximum ambient temperature (½" - 2")

140°F

Maximum ambient temperature (2½" and 3")

175°F

Actuator volume (½" - 2")

7.62 in.

3

Actuator volume (2½" and 3")

38 in.

3

Body material

cast bronze

Seal Tefl on
Valve end connection

NPT

Compressed air connection

¼" BSP (¼" NPT adpater supplied loose)

Compressed air quality

Water free, prefer oil free, but can be lubricated

The 1447 Pneumatic Cycle Valve isolates oil, water, or gas in
industrial applications including air dryers, ovens, furnaces,
autoclaves, food, and sterilization processes. They are high
duty cycle on/off  angled globe valves that are primarily used
on StepFire™ and TwinBed II™ systems. Compressed air opens
the valve and a spring returns the valve to the original closed
position.

Product Overview | 1447 Valve

The "Y" pattern valve is operated by a linear piston actuator.
When the valve is in the normally closed position, the pressure
is against the valve seat, not the packing. The shaft  seals are
self-adjusting and protected by a wiper ring against fouling and
damage. This ensures a tight seal even aft er long periods of
operation. The fail-safe actuator is maintenance-free and can be
rotated 360 degrees.

Bulletin 1447

page 2

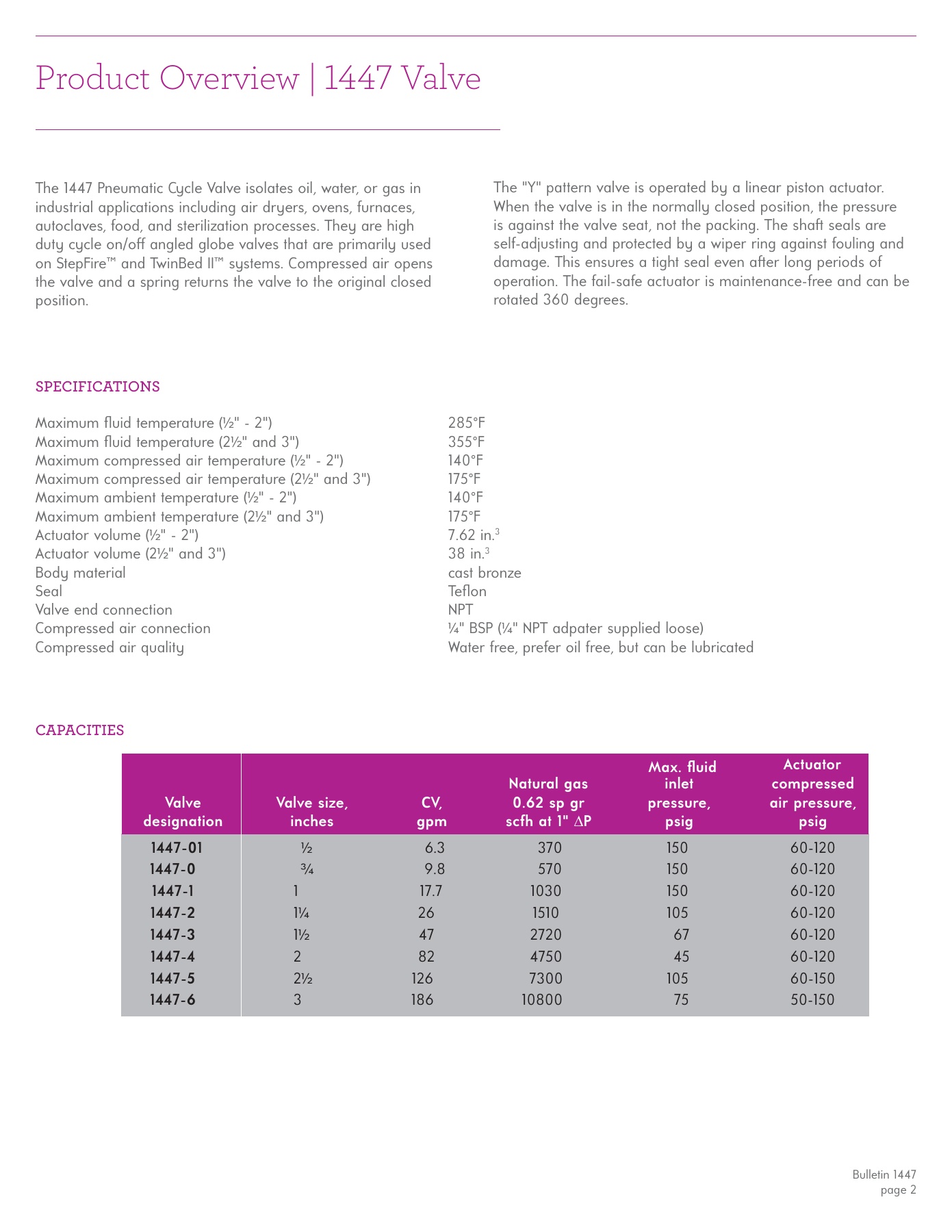

Catalog Combustion 2021 - Page 1402
