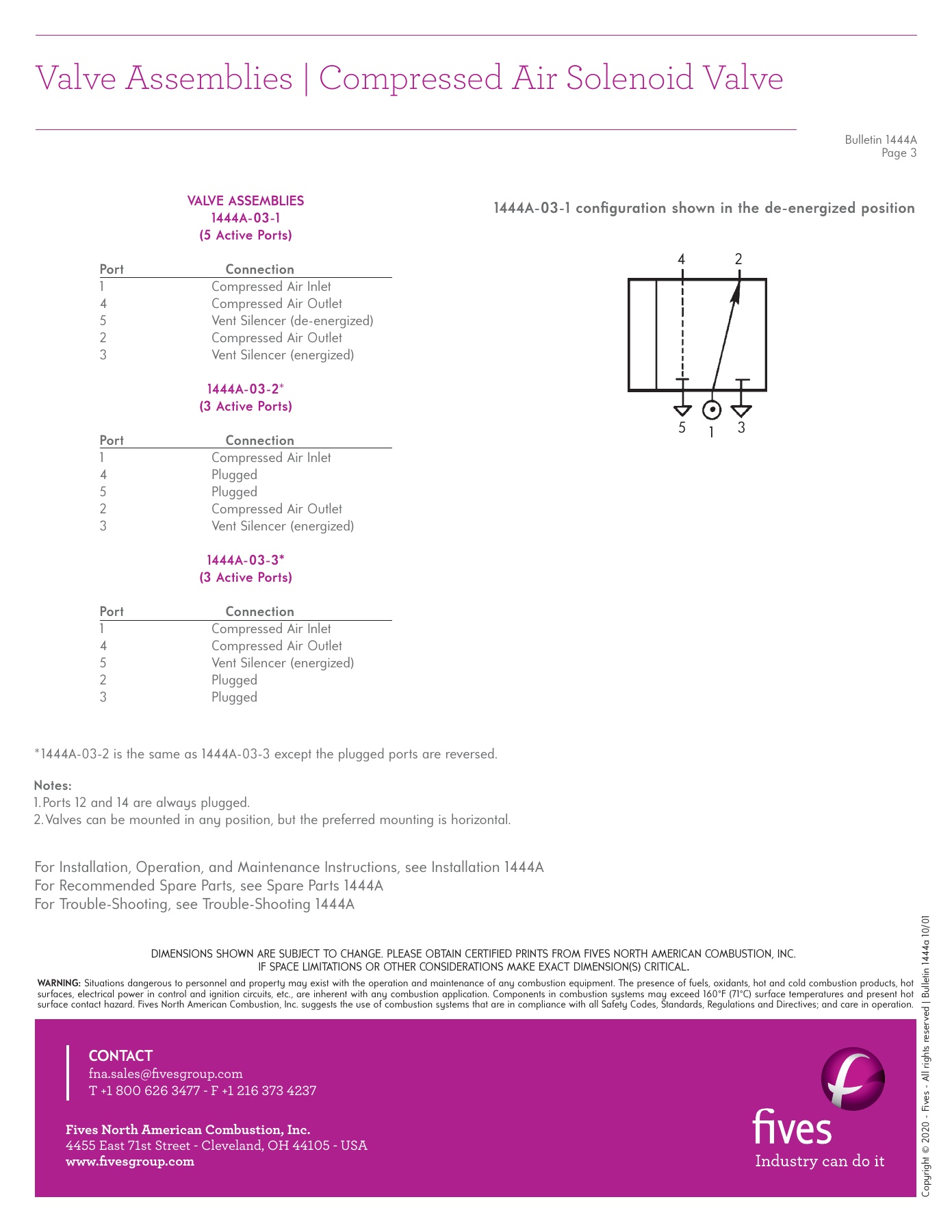

* 1444A-03-2 is the same as 1444A-03-3 except the plugged ports are reversed.
For Installation, Operation, and Maintenance Instructions, see Installation 1444A
For Recommended Spare Parts, see Spare Parts 1444A
For Trouble-Shooting, see Trouble-Shooting 1444A
Notes:
1. Ports 12 and 14 are always plugged.
2. Valves can be mounted in any position, but the preferred mounting is horizontal.
VALVE ASSEMBLIES
1444A-03-1
(5 Active Ports)
Port Connection
1
Compressed Air Inlet
4
Compressed Air Outlet
5
Vent Silencer (de-energized)
2
Compressed Air Outlet
3
Vent Silencer (energized)
1444A-03-2
*
(3 Active Ports)
Port Connection
1
Compressed Air Inlet
4 Plugged
5 Plugged
2
Compressed Air Outlet
3
Vent Silencer (energized)
1444A-03-3*
(3 Active Ports)
Port Connection
1
Compressed Air Inlet
4
Compressed Air Outlet
5
Vent Silencer (energized)
2 Plugged
3 Plugged
1444A-03-1 confi guration shown in the de-energized position
4
2
5
1
3
