Solenoid valves control the fl ow of manufactured, natural
or propane gas in industrial burner systems, for main line,
pilot line, and venting applications. They are two-way direct
acting and internal pilot operated with 120/60-110/50 standard
voltage.
GAS SOLENOID VALVES
1486BA-0
1486G
Sheet 1400-1
INSTALLATION
Valves with a "G" suffi
x listed below must be mounted with
solenoid vertical and upright.
Notes:
1. Valves listed with the G suffi
x include Position Indication and FM "Proof-of-Closure" Switch with valve seal overtravel. The switch rating is 15 watts maximum
resistive load current not to exceed 1 ampere and the voltage not to exceed 120 volts, AC or DC.
2. For valves listed with the A suffi
x requiring Class I, Div. 1, Groups (A,B,C,D) and Class II, Div. 1, Groups (E,F,G) - Types 3,3S,4,4X,6,6P, 7, and 9, specify -W
at end of product number (1486A-01-W).
3. All valve bodies are aluminum with Buna N seating except 1486A-02 is brass.
4. See page 5 for fl uid and ambient temperatures.
5. For 1486 valves requiring CSA certifi cates order the C1486 -# valves in Oracle.
max.
capacity (cfh)
max.
Valve
pipe orifi ce
press.
0.6 sp gr
recommended
designation size size psig
1"wc
P backpressure
class
holding
inrush
enclosure
types
1486A-02
B
3⁄8
"
7⁄32
"
100
40
0.5"wc
F
40
70
2, 3, 3S, 4, 4X
1486A-01
B
½
"
¾
"
4
50
240
0.5"wc
F
25
70
2, 3, 3S, 4, 4X
1486A-0
B
¾
"
¾
"
4
50
250
0.5"wc
F
25
70
2, 3, 3S, 4, 4X
1486BA-0
¾
" 1
5⁄8
"
4
25
580
0.5"wc
F
27
160
2 and 3R
1486G-0
¾
" 1
5⁄8
" 20
580
1.5
psi
H 122 600
4
1486G-1
1"
3
/
4
1
5⁄8
" 20
1170
1.5
psi
H 122 600
4
1486G-2
1
¼
" 1
5⁄8
" 20
1660
1.5
psi
H 122 600
4
1486G-3
1
½
" 1
5⁄8
" 20
1870
1.5
psi
H 122 600
4
1486G-4
2"
1
/
2
2
3⁄32
" 20
3250
1
psi
H 122 600
4
coil
VA

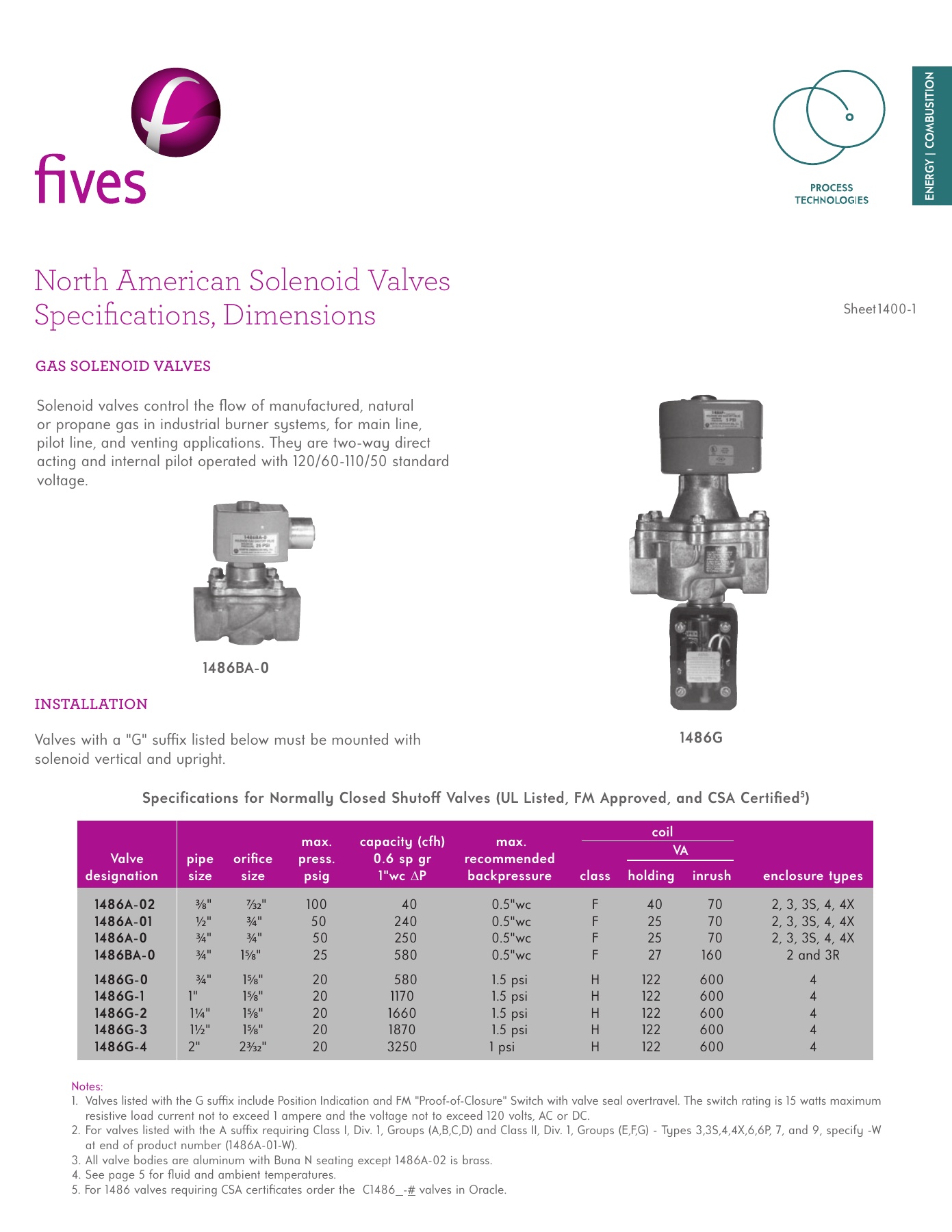

Specifications for Normally Closed Shutoff Valves (UL Listed, FM Approved, and CSA Certifi ed
5
)
ENERG
Y | C
OMBUSITION
North American Solenoid Valves
Specifi cations, Dimensions
