Dimensions 1199
Page 4

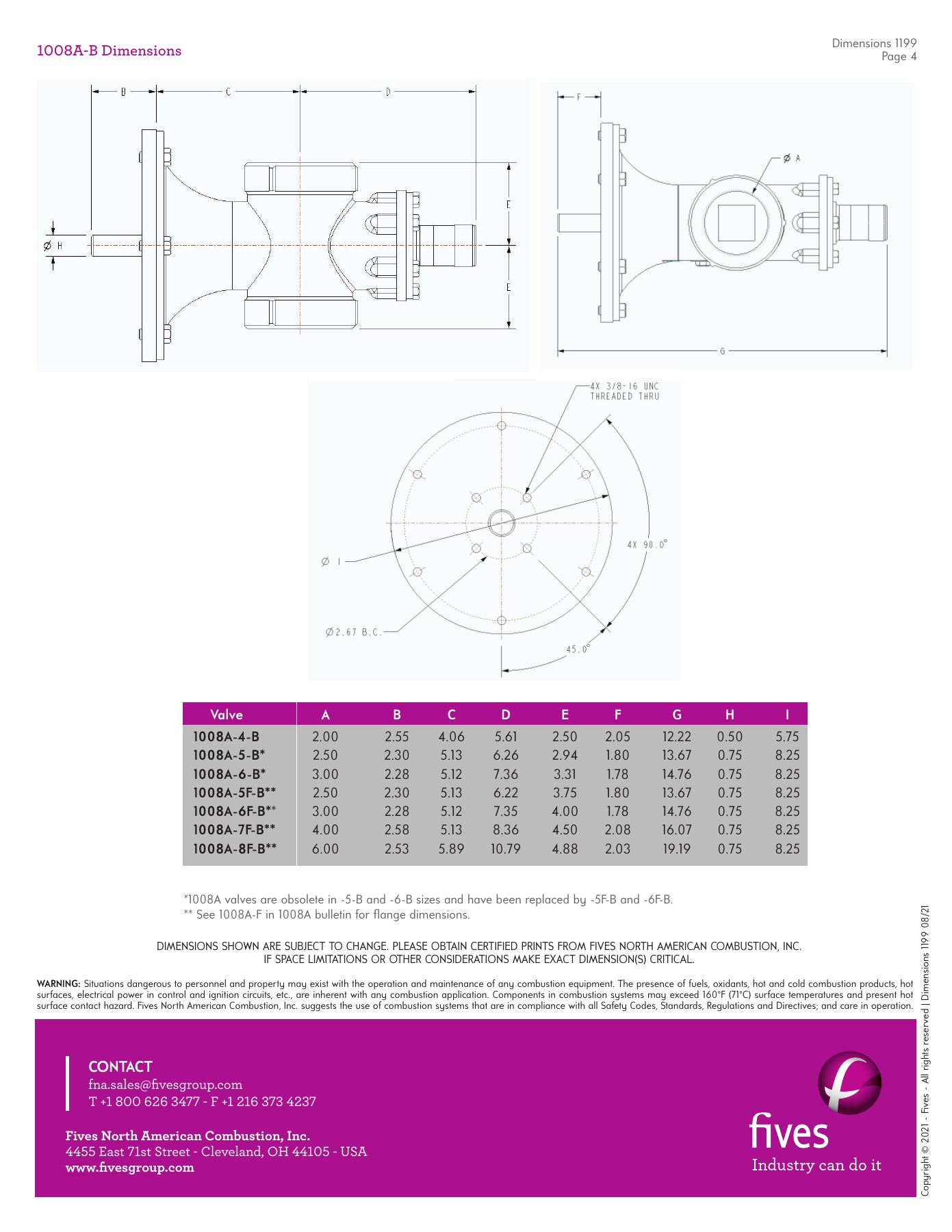

1008A-B Dimensions
XX
Valve A
B
C
D
E
F
G
H
I
1008A-4-B
2.00 2.55
4.06
5.61
2.50
2.05
12.22
0.50
5.75
1008A-5-B*
2.50 2.30
5.13
6.26
2.94
1.80
13.67
0.75
8.25
1008A-6-B*
3.00 2.28
5.12
7.36
3.31
1.78
14.76
0.75
8.25
1008A-5F-B**
2.50 2.30 5.13 6.22 3.75
1.80 13.67
0.75 8.25
1008A-6F-B*
* 3.00 2.28 5.12 7.35 4.00
1.78 14.76
0.75 8.25
1008A-7F-B**
4.00 2.58 5.13 8.36 4.50
2.08 16.07
0.75 8.25
1008A-8F-B**
6.00 2.53 5.89
10.79 4.88
2.03 19.19
0.75 8.25
*1008A valves are obsolete in -5-B and -6-B sizes and have been replaced by -5F-B and -6F-B.
** See 1008A-F in 1008A bulletin for fl ange dimensions.
DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSTION, INC.
IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL
.
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
