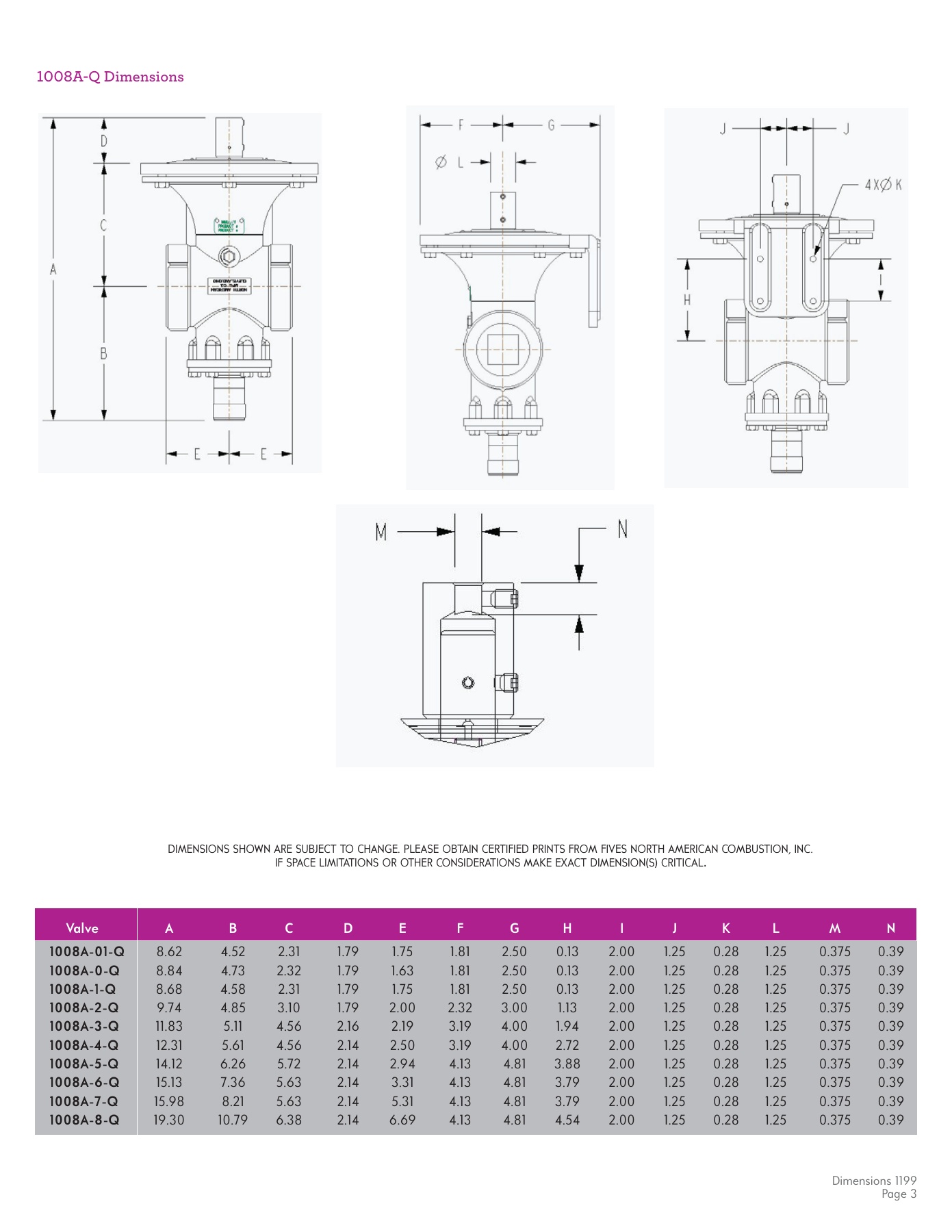

1008A-Q Dimensions

Dimensions 1199

Page 3



XX

Valve A

N



1008A-01-Q

 8.62  4.52 2.31  1.79 1.75  1.81 2.50 0.13 2.00 1.25 0.28 1.25 0.375 0.39



1008A-0-Q

 8.84  4.73 2.32 1.79 1.63 1.81 2.50

0.13 2.00

1.25

0.28

1.25 0.375

0.39



1008A-1-Q

 8.68 4.58

2.31 1.79

1.75 1.81

2.50

0.13

2.00

1.25

0.28

1.25

0.375

0.39



1008A-2-Q

 9.74 4.85 3.10 1.79

2.00 2.32

3.00

1.13 2.00

1.25

0.28

1.25 0.375

0.39



1008A-3-Q

 11.83  5.11 4.56 2.16 2.19 3.19

4.00

1.94 2.00

1.25

0.28

1.25 0.375

0.39



1008A-4-Q

 12.31  5.61 4.56 2.14 2.50 3.19

4.00

2.72

2.00

1.25

0.28

1.25 0.375

0.39



1008A-5-Q

 14.12 6.26 5.72 2.14 2.94 4.13 4.81

3.88

2.00

1.25

0.28

1.25 0.375

0.39



1008A-6-Q

 15.13 7.36 5.63 2.14 3.31 4.13 4.81

3.79

2.00

1.25

0.28

1.25 0.375

0.39



1008A-7-Q

 15.98 8.21 5.63 2.14 5.31 4.13 4.81

3.79

2.00

1.25

0.28

1.25 0.375

0.39



1008A-8-Q

 19.30 10.79 6.38 2.14 6.69 4.13 4.81 4.54 2.00 1.25 0.28

1.25 0.375

0.39

DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSTION, INC.

IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL

.
