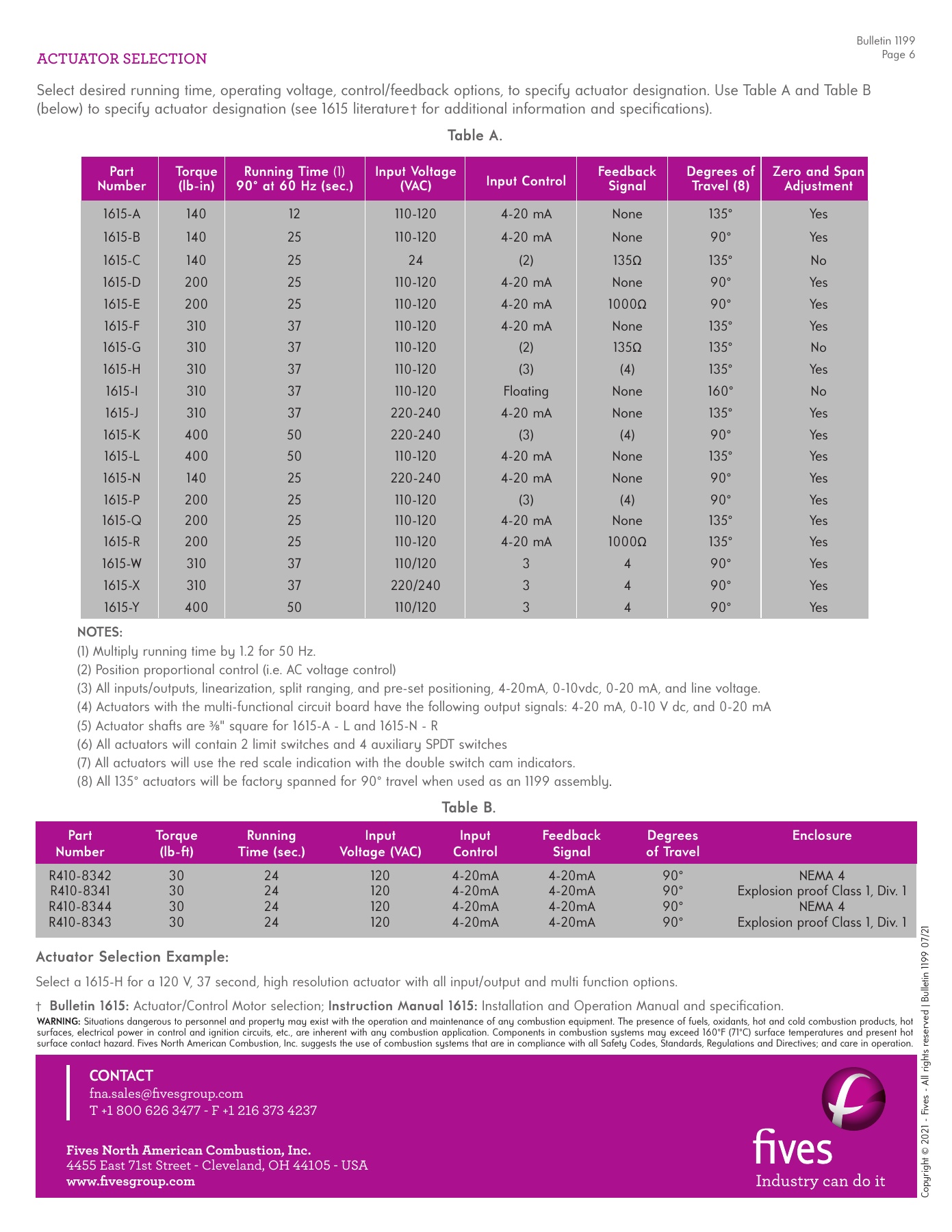

ACTUATOR SELECTION
Select desired running time, operating voltage, control/feedback options, to specify actuator designation. Use Table A and Table B
(below) to specify actuator designation (see 1615 literature † for additional information and specifi cations).
Actuator Selection Example:
Select a 1615-H for a 120 V, 37 second, high resolution actuator with all input/output and multi function options.
†
Bulletin 1615:
Actuator/Control Motor selection;
Instruction Manual 1615:
Installation and Operation Manual and specifi cation.
Table A.
Table B.
Bulletin 1199
Page 6
Part Torque
Running
Time
(1)
Input Voltage
Feedback
Degrees of Zero and Span
Number
(lb-in)
90° at 60 Hz (sec.)
(VAC)
Input Control Signal Travel
(8)
Adjustment
1615-A
140
12
110-120
4-20
mA
None
135°
Yes
1615-B
140
25
110-120
4-20
mA
None
90°
Yes
1615-C
140
25
24
(2)
135Ω
135°
No
1615-D
200
25
110-120
4-20
mA
None
90°
Yes
1615-E
200
25
110-120
4-20
mA
1000Ω
90°
Yes
1615-F
310
37
110-120
4-20
mA
None
135°
Yes
1615-G
310
37
110-120
(2)
135Ω
135°
No
1615-H
310
37
110-120
(3)
(4)
135°
Yes
1615-I
310
37
110-120
Floating
None
160°
No
1615-J
310
37
220-240
4-20
mA
None
135°
Yes
1615-K
400
50
220-240
(3)
(4)
90°
Yes
1615-L
400
50
110-120
4-20
mA
None
135°
Yes
1615-N
140
25
220-240
4-20
mA
None
90°
Yes
1615-P
200
25
110-120
(3)
(4)
90°
Yes
1615-Q
200
25
110-120
4-20
mA
None
135°
Yes
1615-R
200
25
110-120
4-20
mA
1000Ω
135°
Yes
1615-W
310
37
110/120
3
4
90°
Yes
1615-X
310
37
220/240
3
4
90°
Yes
1615-Y
400
50
110/120
3
4
90°
Yes
Cop
yr
igh
t © 2021 - F
iv
es - All r
igh
ts
r
eser
ved | Bulle
tin 1199 07/21
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
NOTES:
(1) Multiply running time by 1.2 for 50 Hz.
(2) Position proportional control (i.e. AC voltage control)
(3) All inputs/outputs, linearization, split ranging, and pre-set positioning, 4-20mA, 0-10vdc, 0-20 mA, and line voltage.
(4) Actuators with the multi-functional circuit board have the following output signals: 4-20 mA, 0-10 V dc, and 0-20 mA
(5) Actuator shaft s are
3⁄8
" square for 1615-A - L and 1615-N - R
(6) All actuators will contain 2 limit switches and 4 auxiliary SPDT switches
(7) All actuators will use the red scale indication with the double switch cam indicators.
(8) All 135° actuators will be factory spanned for 90° travel when used as an 1199 assembly
.
Part Torque
Running Input Input
Feedback
Degrees
Enclosure
Number
(lb-ft )
Time (sec.)
Voltage (VAC)
Control
Signal
of Travel
R410-8342
30
24
120
4-20mA
4-20mA
90°
NEMA 4
R410-8341
30
24
120
4-20mA
4-20mA
90°
Explosion proof Class 1, Div. 1
R410-8344
30
24
120
4-20mA
4-20mA
90°
NEMA 4
R410-8343
30
24
120
4-20mA
4-20mA
90°
Explosion proof Class 1, Div. 1
