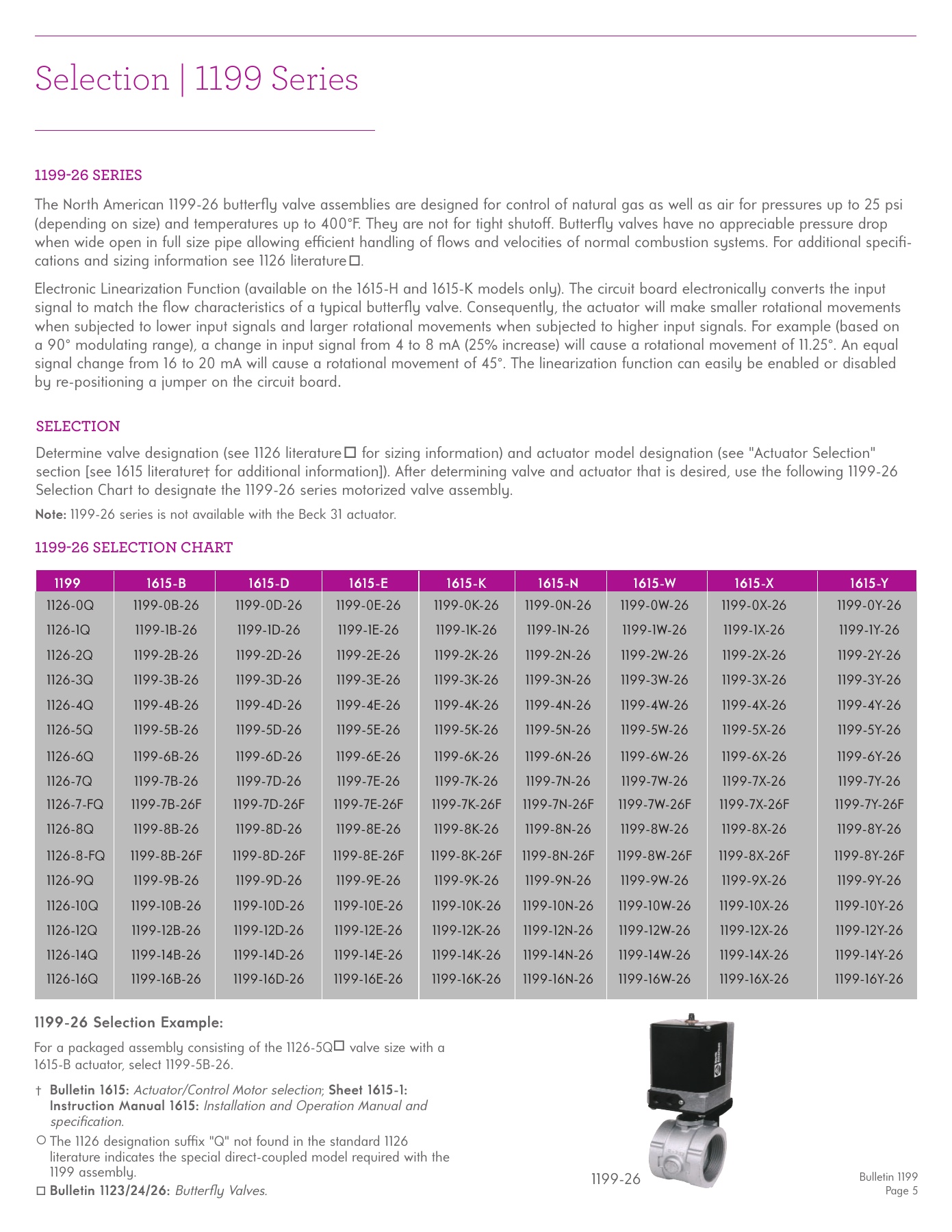

1199-26 SERIES
The North American 1199-26 butterfl y valve assemblies are designed for control of natural gas as well as air for pressures up to 25 psi
(depending on size) and temperatures up to 400°F. They are not for tight shutoff . Butterfl y valves have no appreciable pressure drop
when wide open in full size pipe allowing effi
cient handling of fl ows and velocities of normal combustion systems. For additional specifi -
cations and sizing information see 1126 literature
.
Electronic Linearization Function (available on the 1615-H and 1615-K models only). The circuit board electronically converts the input
signal to match the fl ow characteristics of a typical butterfl y valve. Consequently, the actuator will make smaller rotational movements
when subjected to lower input signals and larger rotational movements when subjected to higher input signals. For example (based on
a 90° modulating range), a change in input signal from 4 to 8 mA (25% increase) will cause a rotational movement of 11.25°. An equal
signal change from 16 to 20 mA will cause a rotational movement of 45°. The linearization function can easily be enabled or disabled
by re-positioning a jumper on the circuit board
.
1199-26 Selection Example:
For a packaged assembly consisting of the 1126-5Q
valve size with a
1615-B actuator, select 1199-5B-26.
†
Bulletin 1615:
Actuator/Control Motor selection
;
Sheet 1615-1:
Instruction Manual 1615:
Installation and Operation Manual and
specifi cation
.
The 1126 designation suffi
x "Q" not found in the standard 1126
literature indicates the special direct-coupled model required with the
1199 assembly.
Bulletin 1123/24/26:
Butterfl y Valves.
SELECTION
Determine valve designation (see 1126 literature
for sizing information) and actuator model designation (see "Actuator Selection"
section [see 1615 literature† for additional information]). Aft er determining valve and actuator that is desired, use the following 1199-26
Selection Chart to designate the 1199-26 series motorized valve assembly.
Bulletin 1199
Page 5
1199-26 SELECTION CHART
1199
1615-B
1615-D
1615-E
1615-K
1615-N
1615-W
1615-X
1615-Y
1126-0Q 1199-0B-26 1199-0D-26 1199-0E-26 1199-0K-26
1199-0N-26
1199-0W-26 1199-0X-26 1199-0Y-26
1126-1Q 1199-1B-26 1199-1D-26
1199-1E-26
1199-1K-26
1199-1N-26
1199-1W-26
1199-1X-26 1199-1Y-26
1126-2Q 1199-2B-26 1199-2D-26 1199-2E-26 1199-2K-26
1199-2N-26
1199-2W-26
1199-2X-26 1199-2Y-26
1126-3Q 1199-3B-26 1199-3D-26 1199-3E-26 1199-3K-26
1199-3N-26
1199-3W-26 1199-3X-26 1199-3Y-26
1126-4Q 1199-4B-26 1199-4D-26 1199-4E-26 1199-4K-26
1199-4N-26
1199-4W-26 1199-4X-26 1199-4Y-26
1126-5Q 1199-5B-26 1199-5D-26 1199-5E-26 1199-5K-26
1199-5N-26
1199-5W-26
1199-5X-26 1199-5Y-26
1126-6Q 1199-6B-26 1199-6D-26 1199-6E-26 1199-6K-26
1199-6N-26
1199-6W-26 1199-6X-26 1199-6Y-26
1126-7Q 1199-7B-26 1199-7D-26 1199-7E-26
1199-7K-26
1199-7N-26
1199-7W-26
1199-7X-26 1199-7Y-26
1126-7-FQ 1199-7B-26F 1199-7D-26F 1199-7E-26F 1199-7K-26F 1199-7N-26F 1199-7W-26F 1199-7X-26F
1199-7Y-26F
1126-8Q 1199-8B-26 1199-8D-26 1199-8E-26 1199-8K-26
1199-8N-26
1199-8W-26 1199-8X-26 1199-8Y-26
1126-8-FQ 1199-8B-26F 1199-8D-26F 1199-8E-26F 1199-8K-26F 1199-8N-26F 1199-8W-26F 1199-8X-26F
1199-8Y-26F
1126-9Q 1199-9B-26 1199-9D-26 1199-9E-26 1199-9K-26
1199-9N-26
1199-9W-26 1199-9X-26 1199-9Y-26
1126-10Q 1199-10B-26 1199-10D-26 1199-10E-26 1199-10K-26
1199-10N-26
1199-10W-26 1199-10X-26 1199-10Y-26
1126-12Q 1199-12B-26 1199-12D-26 1199-12E-26 1199-12K-26
1199-12N-26
1199-12W-26 1199-12X-26 1199-12Y-26
1126-14Q 1199-14B-26 1199-14D-26 1199-14E-26 1199-14K-26
1199-14N-26
1199-14W-26 1199-14X-26 1199-14Y-26
1126-16Q 1199-16B-26 1199-16D-26 1199-16E-26 1199-16K-26
1199-16N-26
1199-16W-26 1199-16X-26 1199-16Y-26
Selection | 1199 Series
Note:
1199-26 series is not available with the Beck 31 actuator.
1199-26
