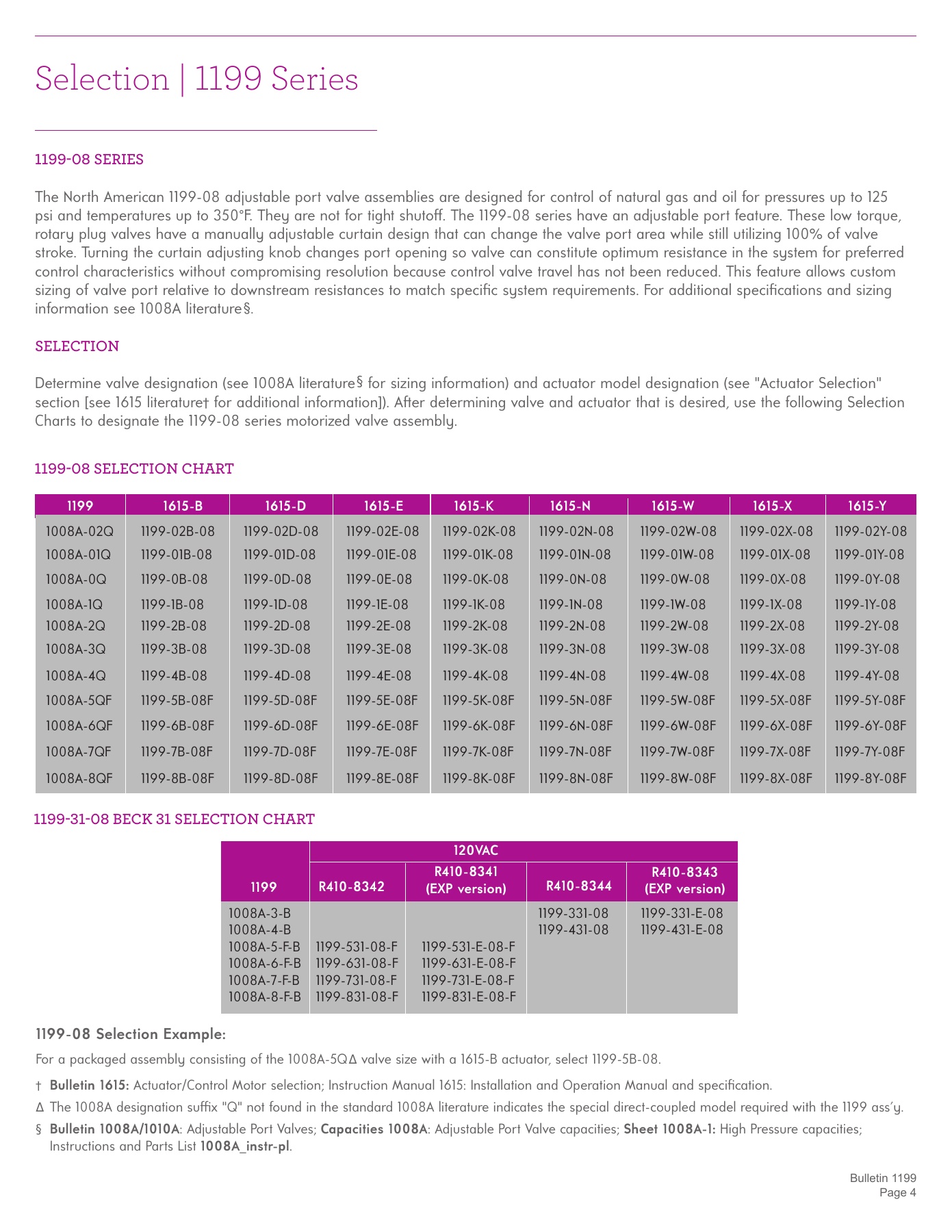

Bulletin 1199

 Page 4

1199-08 SERIES

The North American 1199-08 adjustable port valve assemblies are designed for control of natural gas and oil for pressures up to 125
psi and temperatures up to 350°F. They are not for tight shutoff . The 1199-08 series have an adjustable port feature. These low torque,
rotary plug valves have a manually adjustable curtain design that can change the valve port area while still utilizing 100% of valve
stroke. Turning the curtain adjusting knob changes port opening so valve can constitute optimum resistance in the system for preferred
control characteristics without compromising resolution because control valve travel has not been reduced. This feature allows custom
sizing of valve port relative to downstream resistances to match specifi c system requirements. For additional specifi cations and sizing
information see 1008A literature

 §.

SELECTION

Determine valve designation (see 1008A literature § for sizing information) and actuator model designation (see "Actuator Selection"
section [see 1615 literature† for additional information]). Aft er determining valve and actuator that is desired, use the following Selection
Charts to designate the 1199-08 series motorized valve assembly.

1199-08 Selection Example:

For a packaged assembly consisting of the 1008A-5Q Δ valve size with a 1615-B actuator, select 1199-5B-08.

†

Bulletin 1615:

 Actuator/Control Motor selection; Instruction Manual 1615: Installation and Operation Manual and specifi cation.

Δ  The 1008A designation suffi

  x "Q" not found in the standard 1008A literature indicates the special direct-coupled model required with the 1199 assy.

§

Bulletin 1008A/1010A

: Adjustable Port Valves;

Capacities 1008A

: Adjustable Port Valve capacities;

Sheet 1008A-1:

 High Pressure capacities;

Instructions and Parts List

1008A_instr-pl

1199-08 SELECTION CHART



1199 1615-B

1615-D

1615-E

1615-K

1615-N

1615-W

1615-X

1615-Y

1008A-02Q 1199-02B-08 1199-02D-08 1199-02E-08 1199-02K-08 1199-02N-08 1199-02W-08 1199-02X-08 1199-02Y-08

1008A-01Q 1199-01B-08 1199-01D-08 1199-01E-08 1199-01K-08 1199-01N-08 1199-01W-08 1199-01X-08 1199-01Y-08

1008A-0Q 1199-0B-08 1199-0D-08 1199-0E-08 1199-0K-08 1199-0N-08 1199-0W-08 1199-0X-08 1199-0Y-08

1008A-1Q 1199-1B-08 1199-1D-08 1199-1E-08 1199-1K-08 1199-1N-08 1199-1W-08 1199-1X-08 1199-1Y-08

1008A-2Q 1199-2B-08 1199-2D-08 1199-2E-08 1199-2K-08 1199-2N-08 1199-2W-08 1199-2X-08 1199-2Y-08

1008A-3Q 1199-3B-08 1199-3D-08 1199-3E-08 1199-3K-08 1199-3N-08 1199-3W-08 1199-3X-08 1199-3Y-08

1008A-4Q 1199-4B-08 1199-4D-08 1199-4E-08 1199-4K-08 1199-4N-08 1199-4W-08 1199-4X-08 1199-4Y-08

1008A-5QF 1199-5B-08F 1199-5D-08F 1199-5E-08F 1199-5K-08F 1199-5N-08F 1199-5W-08F 1199-5X-08F 1199-5Y-08F

1008A-6QF 1199-6B-08F 1199-6D-08F 1199-6E-08F 1199-6K-08F 1199-6N-08F 1199-6W-08F 1199-6X-08F 1199-6Y-08F

1008A-7QF 1199-7B-08F 1199-7D-08F 1199-7E-08F 1199-7K-08F 1199-7N-08F 1199-7W-08F 1199-7X-08F 1199-7Y-08F

1008A-8QF 1199-8B-08F 1199-8D-08F 1199-8E-08F 1199-8K-08F 1199-8N-08F 1199-8W-08F 1199-8X-08F 1199-8Y-08F

Selection | 1199 Series

1199-31-08 BECK 31 SELECTION CHART

 1008A-3-B





1199-331-08

1199-331-E-08

 1008A-4-B





1199-431-08

1199-431-E-08

 1008A-5-F-B  1199-531-08-F

1199-531-E-08-F

 1008A-6-F-B  1199-631-08-F

1199-631-E-08-F

 1008A-7-F-B  1199-731-08-F

1199-731-E-08-F



 1008A-8-F-B  1199-831-08-F

1199-831-E-08-F

1199

120VAC

R410-8342

R410-8344

R410-8341

(EXP version)

R410-8343

(EXP version)
