SPARE PARTS
ORDERING INFORMATION
1177E - - EP2
3" -6
4" -7
6" -8
8" -9
10" -10
12" -12
14" -14
16" -16
R620-2013-EP2
Digital positioner, 4-20mA input/output, Namur mount, includes gauge block
R620-1998-F
¼
" liquid, a erosol, sub-micron coalescing fi lter, automatic pulse drain
R620-1998-FK
Filter element kit for Coalescing fi lter R620-1998-F
R620-1008
Actuator seal repair kit for 1177E-6 thru -9 sizes
R620-1006
Actuator seal repair kit for 1177E-10 thru -16 sizes
2-11831-3
Pneumatic spring return actuator for 1177E-6 through -9
2-11831-4
Pneumatic spring return actuator for 1177E-10 through -16
R400-6120
Grease
cartridge
SPARE AND REPLACEMENT PARTS LIST FOR EP2 SERIES VALVES
PART NUMBER
Bulletin 1177E-EP2
Page 6
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts r
eser
ved | Bulle
tin 1177E-EP2 03/20
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
VALVE ONLY
Part Numbers
1177E-6-VO
1177E-7-VO
1177E-8-VO
1177E-9-VO
1177E-10-VO
1177E-12-VO
1177E-14-VO
1177E-16-VO
Part Numbers
1177E-6-UK
1177E-7-UK
1177E-8-UK
1177E-9-UK
1177E-10-UK
1177E-12-UK
1177E-14-UK
1177E-16-UK
UPGRADE KITS
Upgrade kit allows conversion from
1177D to 177E products

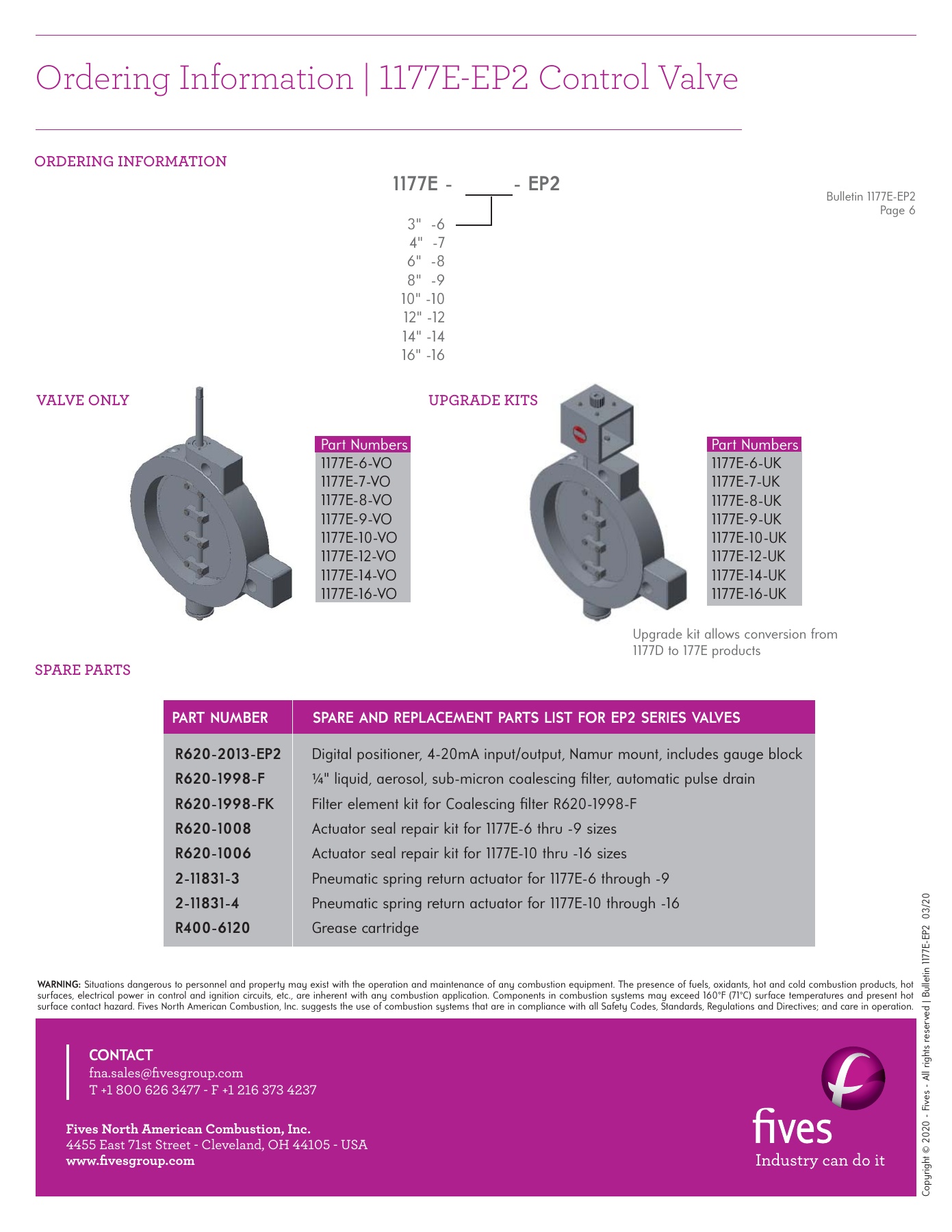

Ordering Information | 1177E-EP2 Control Valve
Fives North American Combustion, Inc.
4455 East 71st Street - Cleveland, OH 44105 - USA
www.fi vesgroup.com
CONTACT
fna.sales@fi vesgroup.com
T +1 800 626 3477 - F +1 216 373 4237
