The 1177E-EP2 Control Valve is an electro-pneumatically controlled
direct acting butterfl y valve capable of handling fl uids up to
800°F. For control input the valve uses a 4-20mA signal, and also
features a feedback unit with 4-20mA output .

All 1177E-XX-EP2 Valves must be installed with the shaft
in a horizontal orientation.

 Maximum ambient temperature

must not exceed 176°F. See sheet “Supply Air Requirements
1177D-EP2/1008-EP2” for air quality information. Each valve is
supplied with a

¼

" miniature .01 micron automatic pulse drain

coalescing fi lter to be installed in the compressed air supply line.
Required supply air pressure is 70-90 psig.

INSTALLATION



Valve Body Material: Heat Resistant Cast Iron



Valve Disc Material: 316 SS



Valve Shaft  Material: 316 SS



Disc Clamp Material: 316 SS



Disc Clamp Hardware: 304 SS



Compressed Air Supply Pressure: 70-90 psig



Maximum Operating Pressure: 2 psig



Wafer Style Design









-6 thru -14 ANSI class 150 fl ange







—

-16 RPM fl ange



Maximum Fluid Temperature: 800°F



Maximum Ambient Temperature: 176°F



Minimum Ambient Temperature: -4°F



Actuator Cycle Rating (closed to open to closed):



 1,000,000



Max Travel Time (open-close-open): 2 seconds



Position Indication: Visual Indication on positioner



Input 4-20mA



4-20mA Position Transmitter







—

10-30 VDC (24 VDC recommended)





—

LCD display with keypad



HART protocol



Nema 4X (IP65)

—  EP4 = explosion proof, Class I, Div. II, Group A, B, C, D,


Class II,  Div. II, Group E, F, G

SPECIFICATIONS

Bulletin 1177E-EP2

Page 2



CAPACITY INFORMATION

Flow is rated in SCFH, 70% open with a 1”w.c. drop at 70°F. and 14.7 PSIA. Leak rate is rated in SCFH

with 1 PSI backpressure.



Valve





  Designation

Size (inches)

Cv @ 70%

Flow @ 70%

Leak Rate



1177E-6-EP2

 3  225 9,650

330



1177E-7-EP2

 4  333

14,300

360



1177E-8-EP2

 6  814

35,000

780



1177E-9-EP2

 8  1,303

56,000

1350



1177E-10-EP2

 10  2,059

88,500 2230



1177E-12-EP2

 12  3,188

137,000

3200



1177E-14-EP2

 14  4,538

195,000

3700



1177E-16-EP2

 16  5,910

254,000

4200

Table 1

Change in fl ow and pressure drop across the valve is negligible when changing from 70% open to wide open unless inlet
pressure is increased substantially to maintain the 1"w.c. pressure drop, which is why the sizing table shows capacities at 70%
open.

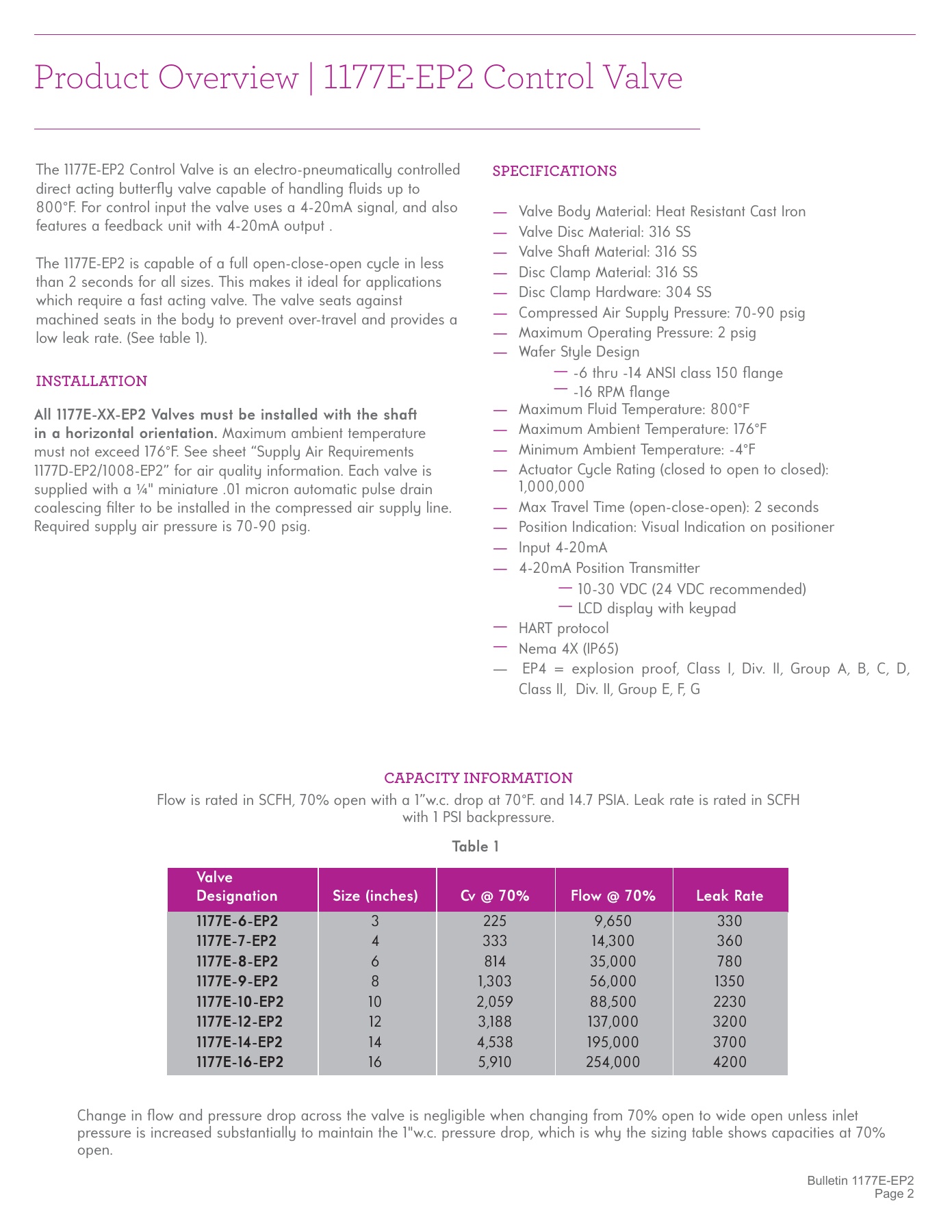

Product Overview | 1177E-EP2 Control Valve
