Valve designation
Part
Name
1122-0
1122-1
1122-2
1122-3
1122-4
Body
2-4858-5 2-0868-6 2-0732-6 2-0735-6 2-0733-7
Locking
Knob
Assy
2-8534-1 2-8534-1 2-8534-1 2-8534-1 2-8534-1
Disc
(Beveled)
2-4862-1 2-0717-1 2-0717-2 2-0717-3 2-0717-4
Shaft
2-2533-6
2-2533-1
2-2533-2
2-2533-3
2-2533-4
Indicator
Dial
2-8460-1 2-8460-1 2-8460-1 2-8460-1 2-8460-1
U-Cup
Shaft
Seal
R541-3020 R541-3020 R541-3020 R541-3020 R541-3020
Round Head Machine Screw
R775-1605
R775-1910
R775-1910
R775-1910
R775-1910
Set
Screw
R776-1400 R776-1400 R776-1400 R776-1400 R776-1400
Valve designation
Part
Name
1122-5
1122-6
1122-7
1122-8
Body 2-0734-7
2-0736-7
2-0737-7
2-0956-7
Locking Knob Assy
2-8534-1
2-8534-1
2-8534-1
2-8534-1
Disc
(Beveled)
2-0717-5 2-3210-1 2-3210-2 2-3210-3
Shaft
2-2533-5
2-3225-1
2-3225-2
2-3225-3
Indicator
Dial
2-8460-1 2-8460-2 2-8460-2 2-8460-2
U-Cup
Shaft
Seal
R541-3020 R541-3010 R541-3010 R541-3010
Round Head Machine Screw
R775-1910
R775-2530
R775-2530
R775-2530
Set
Screw
R776-1400 R776-1400 R776-1400 R776-1400
Valve designation
Part
Name
1122-6-F
1122-7-F
1122-8-F
Body 2-3804-3
2-3805-3
2-3806-3
Locking Knob Assy
2-8534-1
2-8534-1
2-8534-1
Disc
(Beveled)
2-3210-1 2-3210-2 2-3210-3
Shaft
2-3225-4
2-3225-5
2-3225-6
Indicator
Dial
2-8460-2 2-8460-2 2-8460-2
U-Cup
Shaft Seal
R541-3010
R541-3010
R541-3010
Round Head Machine Screw
R775-2530
R775-2530
R775-2530
Set
Screw
R776-1400 R776-1400 R776-1400

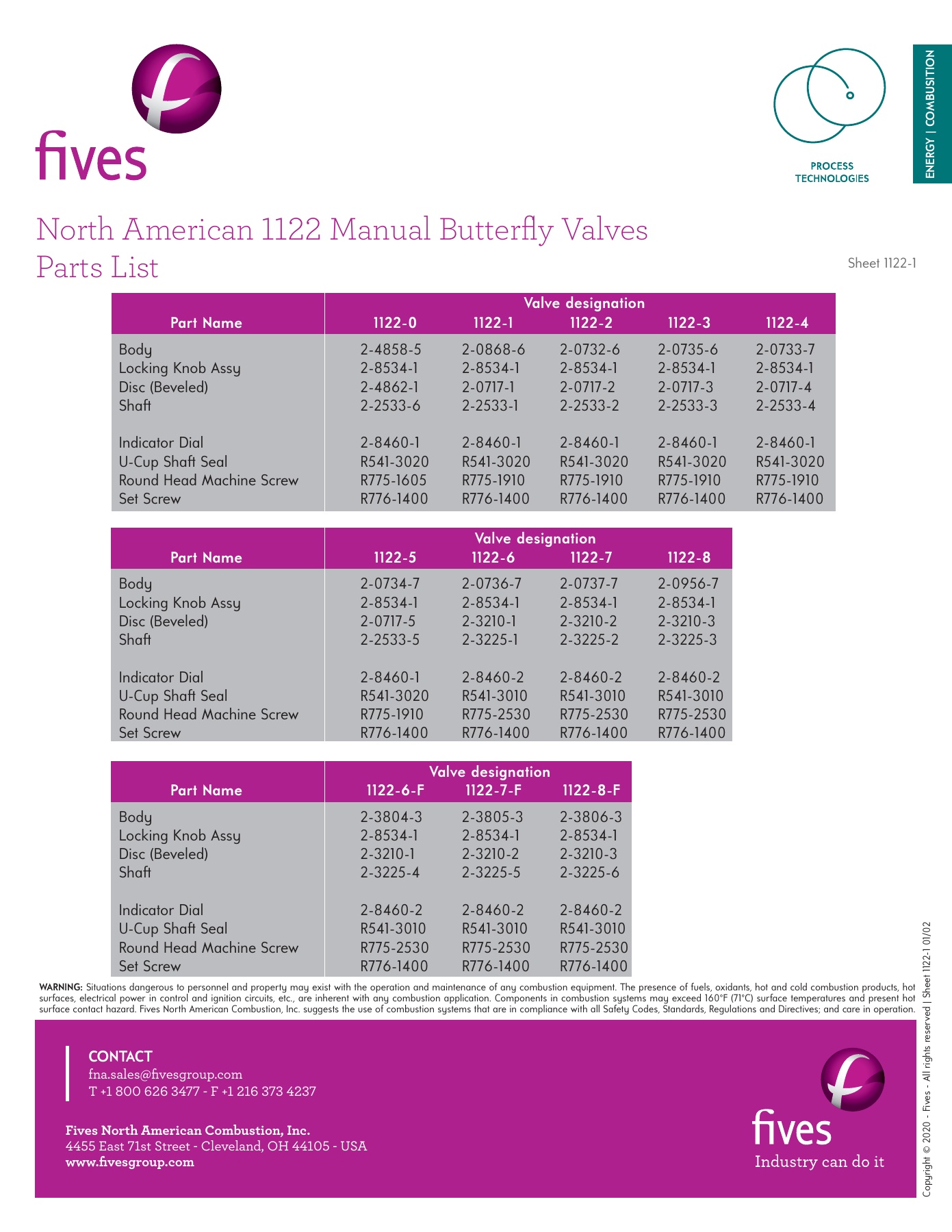

North American 1122 Manual Butterfl y Valves
Parts List
Sheet 1122-1
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts r
eser
ved | Shee
t 1122-1 01/02
