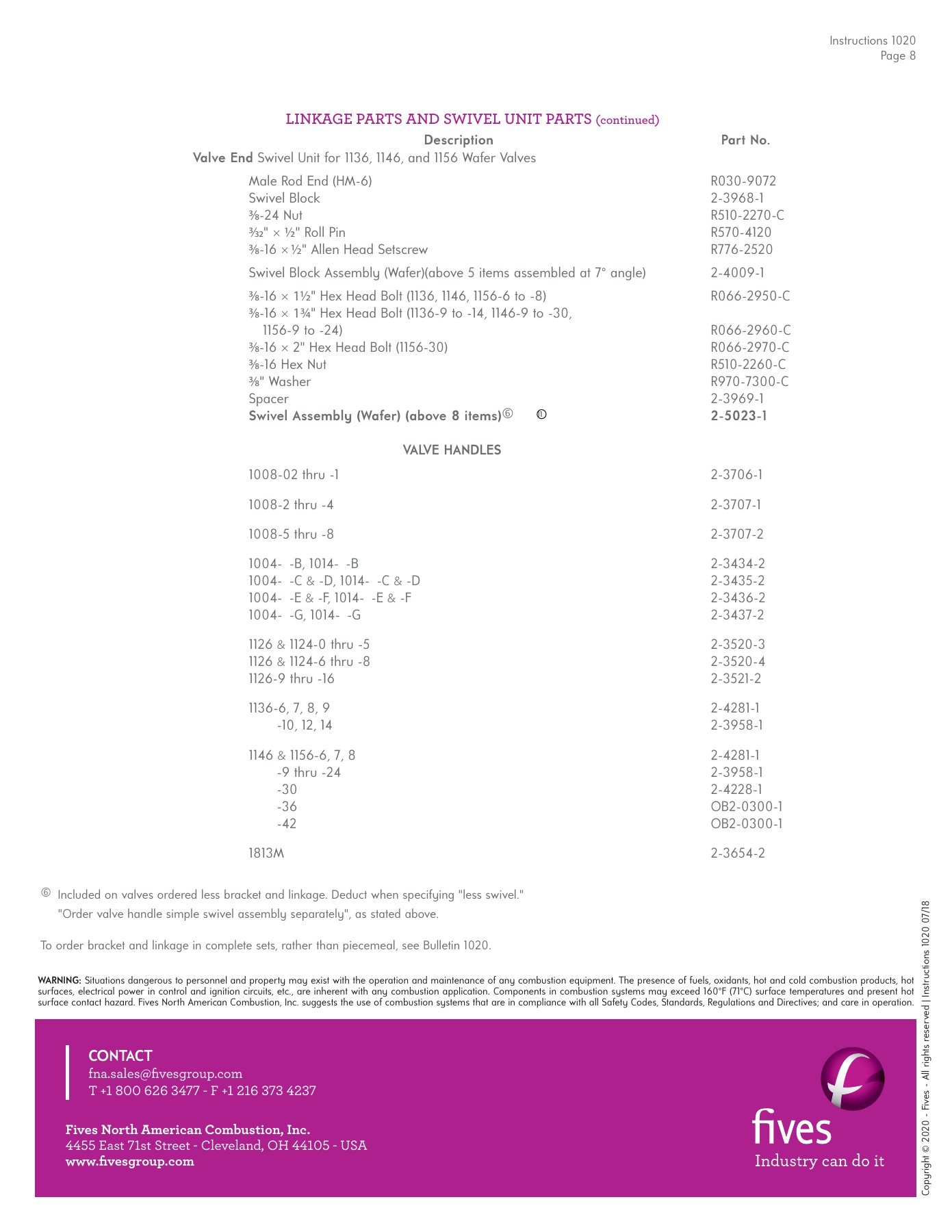

LINKAGE PARTS AND SWIVEL UNIT PARTS

(continued)

Description

Part No.

Valve End

 Swivel Unit for 1136, 1146, and 1156 Wafer Valves

Male Rod End (HM-6)

R030-9072

Swivel

Block

2-3968-1

3⁄8

-24 Nut

R510-2270-C

3⁄32

"



½

" Roll Pin

R570-4120

3⁄8

-16



½

" Allen Head Setscrew

R776-2520

Swivel Block Assembly (Wafer)(above 5 items assembled at 7° angle)

2-4009-1

3⁄8

-16



1½

" Hex Head Bolt (1136, 1146, 1156-6 to -8)

R066-2950-C

3⁄8

-16



1¾

" Hex Head Bolt (1136-9 to -14, 1146-9 to -30,

 1156-9 to -24)

R066-2960-C

3⁄8

-16



 2" Hex Head Bolt (1156-30)

R066-2970-C

3⁄8

-16 Hex Nut

R510-2260-C

3⁄8

" Washer

R970-7300-C

Spacer

2-3969-1

Swivel Assembly (Wafer) (above 8 items)



 2-5023-1

 VALVE HANDLES

1008-02 thru -1

2-3706-1

1008-2 thru -4

2-3707-1

1008-5 thru -8

2-3707-2

1004- -B,

1014- -B

2-3434-2

1004- -C

&

 -D, 1014- -C

&

 -D

2-3435-2

1004- -E

&

 -F, 1014- -E

&

 -F

2-3436-2

1004- -G,

1014- -G

2-3437-2

1126

&

 1124-0 thru -5

2-3520-3

1126

&

 1124-6 thru -8

2-3520-4

1126-9 thru -16

2-3521-2

1136-6, 7, 8, 9

2-4281-1

  -10, 12, 14

2-3958-1

1146

&

 1156-6, 7, 8

2-4281-1

  -9 thru -24

2-3958-1

  -30

2-4228-1

  -36

OB2-0300-1

  -42

OB2-0300-1

1813M

2-3654-2

11



  Included on valves ordered less bracket and linkage. Deduct when specifying "less swivel."

"Order valve handle simple swivel assembly separately", as stated above.

To order bracket and linkage in complete sets, rather than piecemeal, see Bulletin 1020.
