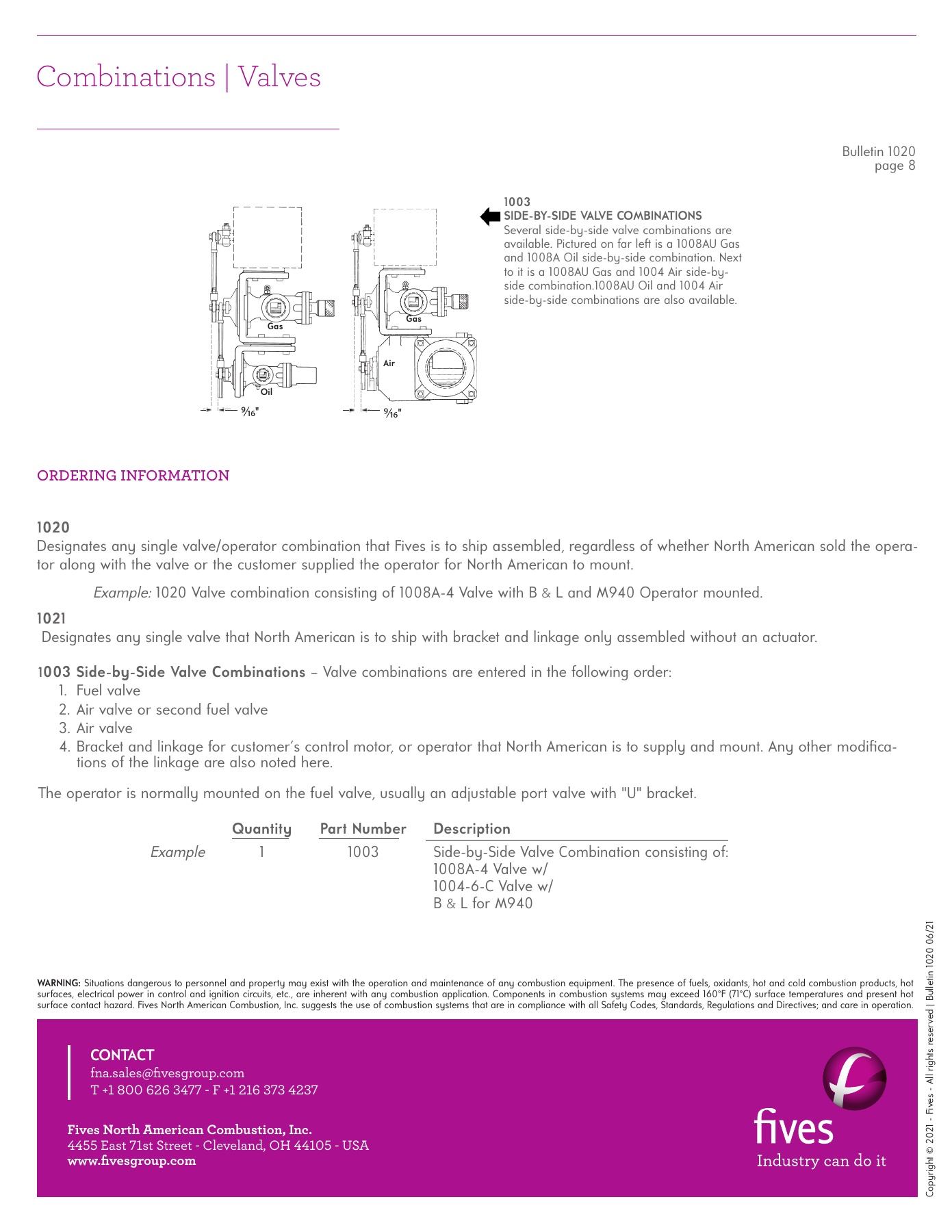

1003
SIDE-BY-SIDE VALVE COMBINATIONS



Several side-by-side valve combinations are
available. Pictured on far left  is a 1008AU Gas
and 1008A Oil side-by-side combination. Next
to it is a 1008AU Gas and 1004 Air side-by-
side combination.1008AU Oil and 1004 Air
side-by-side combinations are also available.

9⁄16

"

9⁄16

"

Air

Oil

Gas

Gas

Combinations | Valves

Bulletin 1020

page 8

1

003 Side-by-Side Valve Combinations

 – Valve combinations are entered in the following order:

 1.

Fuel

valve



2. Air valve or second fuel valve

 3.

Air

valve



4. Bracket and linkage for customers control motor, or operator that North American is to supply and mount. Any other modifi ca-



  tions of the linkage are also noted here.

The operator is normally mounted on the fuel valve, usually an adjustable port valve with "U" bracket.





Quantity Part

Number Description



Example



1003

Side-by-Side Valve Combination consisting of:





1008A-4

Valve

w/





1004-6-C

Valve

w/









&

 L for M940





1020



Designates any single valve/operator combination that Fives is to ship assembled, regardless of whether North American sold the opera-
tor along with the valve or the customer supplied the operator for North American to mount.

 Example:

1020 Valve combination consisting of 1008A-4 Valve with B

&

 L and M940 Operator mounted.

1021

 Designates any single valve that North American is to ship with bracket and linkage only assembled without an actuator.

Cop

yr

igh

t © 2021 - F

iv

es - All r

igh

ts

 r

eser

ved | Bulle

tin 1020 06/21

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

ORDERING INFORMATION

Fives North American Combustion, Inc.

4455 East 71st Street - Cleveland, OH 44105 - USA

www.fi vesgroup.com

CONTACT

fna.sales@fi vesgroup.com
T +1 800 626 3477 - F +1 216 373 4237

Catalog Combustion 2021 - Page 1306
