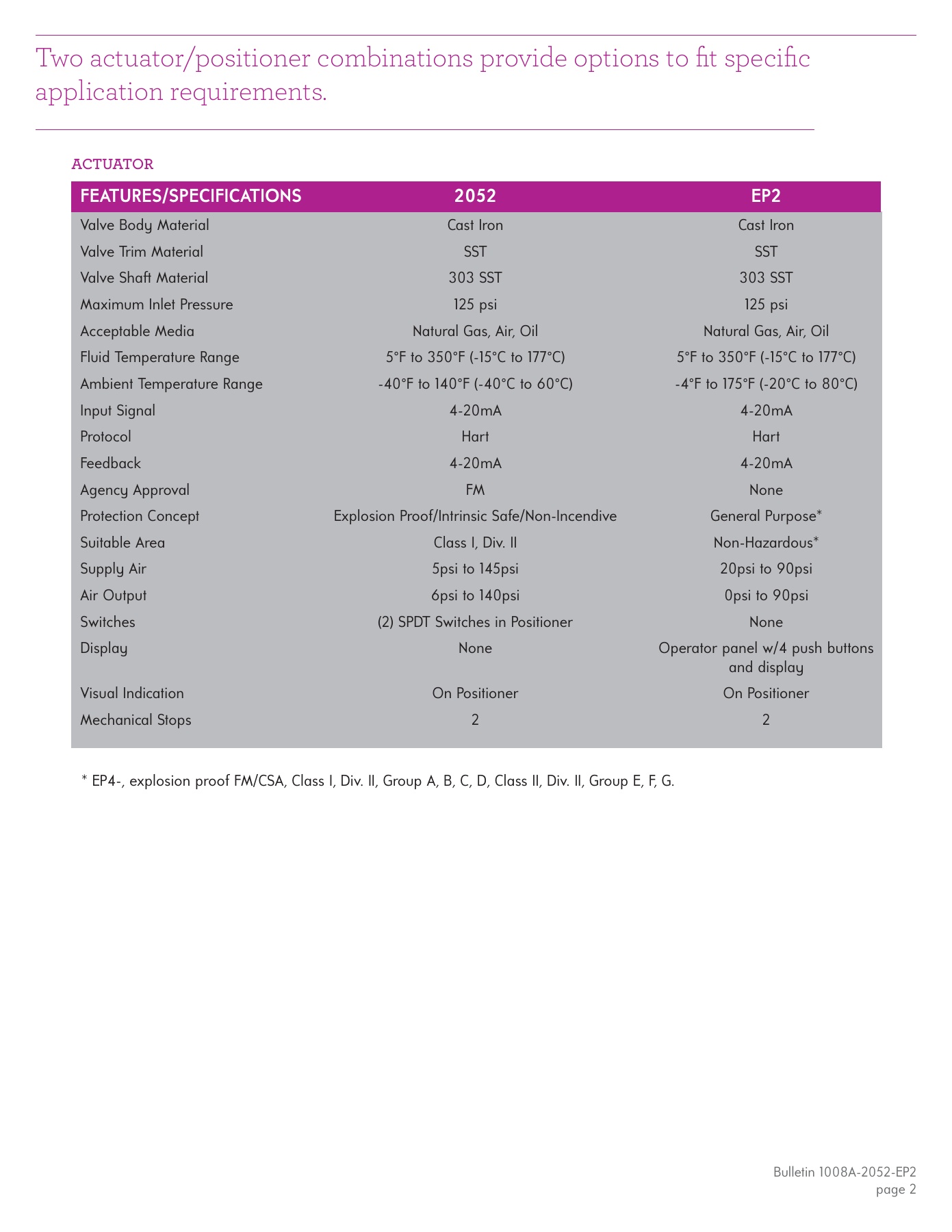

Two actuator/positioner combinations provide options to fi t specifi c
application requirements.
FEATURES/SPECIFICATIONS
2052 EP2
Valve Body Material
Cast Iron
Cast Iron
Valve Trim Material
SST
SST
Valve Shaft Material
303 SST
303 SST
Maximum Inlet Pressure
125 psi
125 psi
Acceptable Media
Natural Gas, Air, Oil
Natural Gas, Air, Oil
Fluid Temperature Range
5°F to 350°F (-15°C to 177°C)
5°F to 350°F (-15°C to 177°C)
Ambient Temperature Range
-40°F to 140°F (-40°C to 60°C)
-4°F to 175°F (-20°C to 80°C)
Input Signal
4-20mA
4-20mA
Protocol Hart
Hart
Feedback 4-20mA
4-20mA
Agency Approval
FM
None
Protection Concept
Explosion Proof/Intrinsic Safe/Non-Incendive
General Purpose*
Suitable Area
Class I, Div. II
Non-Hazardous*
Supply Air
5psi to 145psi
20psi to 90psi
Air Output
6psi to 140psi
0psi to 90psi
Switches
(2) SPDT Switches in Positioner
None
Display
None
Operator panel w/4 push buttons
and
display
Visual Indication
On Positioner
On Positioner
Mechanical Stops
2
2
Bulletin 1008A-2052-EP2
page 2
ACTUATOR
* EP4-, explosion proof FM/CSA, Class I, Div. II, Group A, B, C, D, Class II, Div. II, Group E, F, G.
