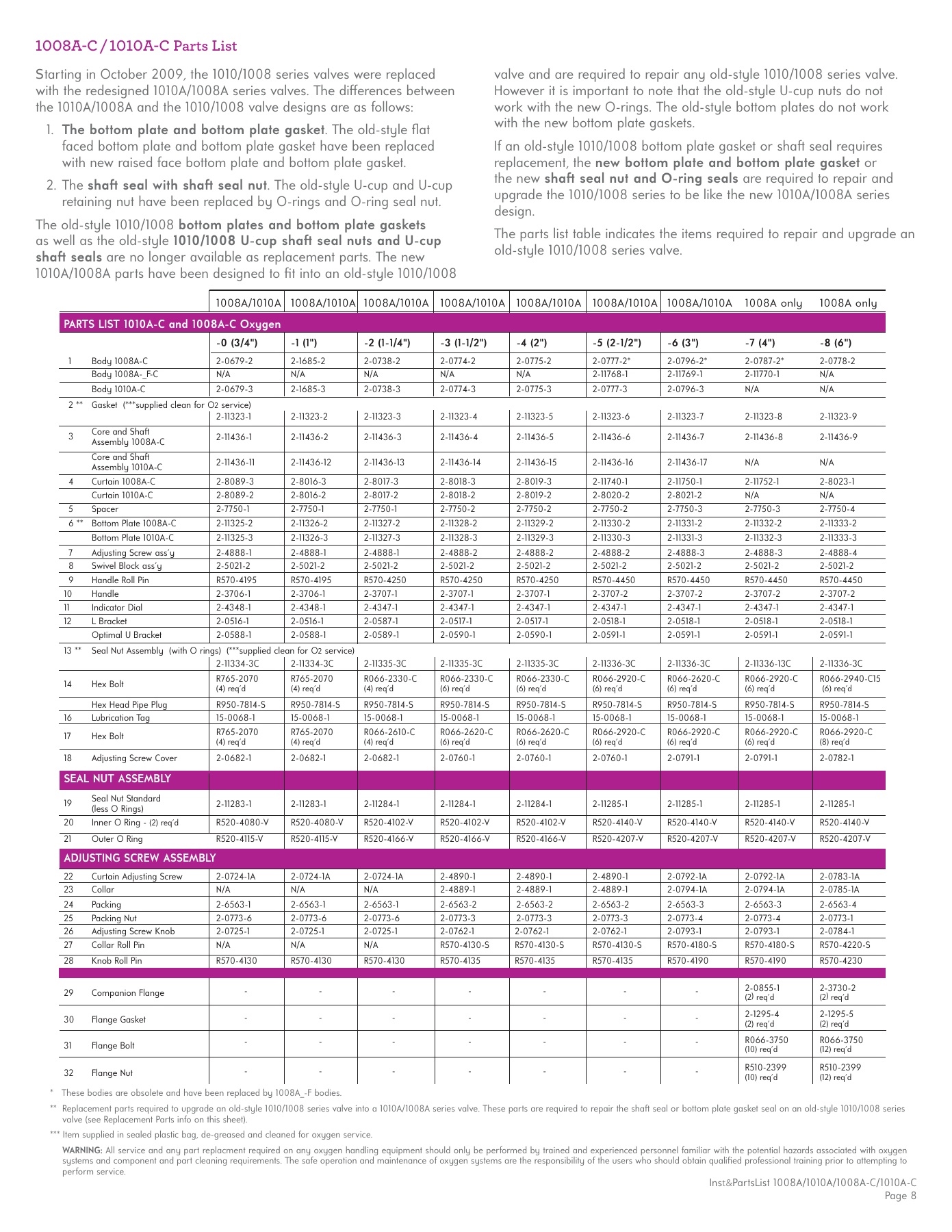

1008A-C/1010A-C Parts List

tarting in October 2009, the 1010/1008 series valves were replaced

with the redesigned 1010A/1008A series valves. The diff erences between
the 1010A/1008A and the 1010/1008 valve designs are as follows:

The bottom plate and bottom plate gasket

. The old-style fl at

faced bottom plate and bottom plate gasket have been replaced
with new raised face bottom plate and bottom plate gasket.

2. The

shaft seal with shaft seal nut

. The old-style U-cup and U-cup

retaining nut have been replaced by O-rings and O-ring seal nut.

The old-style 1010/1008

bottom plates and bottom plate gaskets

as well as the old-style

1010/1008 U-cup shaft seal nuts and U-cup

shaft seals

are no longer available as replacement parts. The new

1010A/1008A parts have been designed to fi t into an old-style 1010/1008

valve and are required to repair any old-style 1010/1008 series valve.
However it is important to note that the old-style U-cup nuts do not
work with the new O-rings. The old-style bottom plates do not work
with the new bottom plate gaskets.

If an old-style 1010/1008 bottom plate gasket or shaft seal requires
replacement, the

new bottom plate and bottom plate gasket

the new

shaft seal nut and O-ring seals

are required to repair and

upgrade the 1010/1008 series to be like the new 1010A/1008A series
design.

The parts list table indicates the items required to repair and upgrade an
old-style 1010/1008 series valve.

* These bodies are obsolete and have been replaced by 1008A_-F bodies.

** Replacement parts required to upgrade an old-style 1010/1008 series valve into a 1010A/1008A series valve. These parts are required to repair the shaft seal or bottom plate gasket seal on an old-style 1010/1008 series

valve (see Replacement Parts info on this sheet).

*** Item supplied in sealed plastic bag, de-greased and cleaned for oxygen service.

WARNING:

All service and any part replacment required on any oxygen handling equipment should only be performed by trained and experienced personnel familiar with the potential hazards associated with oxygen

systems and component and part cleaning requirements. The safe operation and maintenance of oxygen systems are the responsibility of the users who should obtain qualifi ed professional training prior to attempting to
perform service.

1008A/1010A 1008A/1010A 1008A/1010A 1008A/1010A 1008A/1010A 1008A/1010A 1008A/1010A 1008A

only 1008A

only

PARTS LIST 1010A-C and 1008A-C Oxygen

-0 (3/4")

-1 (1")

-2 (1-1/4")

-3 (1-1/2")

-4 (2")

-5 (2-1/2")

-6 (3")

-7 (4")

-8 (6")

Body 1008A-C

2-0679-2

2-1685-2

2-0738-2

2-0774-2

2-0775-2

2-0777-2*

2-0796-2*

2-0787-2*

2-0778-2

Body

1008A-_F-C N/A N/A N/A N/A N/A 2-11768-1

2-11769-1

2-11770-1

N/A

Body 1010A-C

2-0679-3

2-1685-3

2-0738-3

2-0774-3

2-0775-3

2-0777-3

2-0796-3

N/A

2 ** Gasket (***supplied clean for O

service)

2-11323-1 2-11323-2 2-11323-3 2-11323-4 2-11323-5 2-11323-6 2-11323-7 2-11323-8 2-11323-9

Core and Shaft

Assembly 1008A-C

2-11436-1 2-11436-2 2-11436-3 2-11436-4 2-11436-5 2-11436-6 2-11436-7 2-11436-8 2-11436-9

Core and Shaft

Assembly 1010A-C

2-11436-11 2-11436-12 2-11436-13 2-11436-14 2-11436-15 2-11436-16 2-11436-17 N/A

N/A

Curtain 1008A-C

2-8089-3

2-8016-3

2-8017-3

2-8018-3

2-8019-3

2-11740-1

2-11750-1

2-11752-1

2-8023-1

Curtain 1010A-C

2-8089-2

2-8016-2

2-8017-2

2-8018-2

2-8019-2

2-8020-2

2-8021-2

N/A

Spacer

2-7750-1 2-7750-1 2-7750-1 2-7750-2 2-7750-2 2-7750-2 2-7750-3 2-7750-3 2-7750-4

6 ** Bottom Plate 1008A-C

2-11325-2

2-11326-2

2-11327-2

2-11328-2

2-11329-2

2-11330-2

2-11331-2

2-11332-2

2-11333-2

Bottom Plate 1010A-C

2-11325-3

2-11326-3

2-11327-3

2-11328-3

2-11329-3

2-11330-3

2-11331-3

2-11332-3

2-11333-3

Adjusting Screw assy

2-4888-1

2-4888-2

2-4888-3

2-4888-4

Swivel

Block

assy

2-5021-2 2-5021-2 2-5021-2 2-5021-2 2-5021-2 2-5021-2 2-5021-2 2-5021-2 2-5021-2

Handle

Roll

R570-4195 R570-4195 R570-4250 R570-4250 R570-4250 R570-4450 R570-4450 R570-4450 R570-4450

Handle

2-3706-1 2-3706-1 2-3707-1 2-3707-1 2-3707-1 2-3707-2 2-3707-2 2-3707-2 2-3707-2

Indicator

Dial

2-4348-1 2-4348-1 2-4347-1 2-4347-1 2-4347-1 2-4347-1 2-4347-1 2-4347-1 2-4347-1

Bracket

2-0516-1 2-0516-1 2-0587-1 2-0517-1 2-0517-1 2-0518-1 2-0518-1 2-0518-1 2-0518-1

Optimal U Bracket

2-0588-1

2-0589-1

2-0590-1

2-0591-1

13 ** Seal Nut Assembly (with O rings) (***supplied clean for O

service)

2-11334-3C 2-11334-3C 2-11335-3C 2-11335-3C 2-11335-3C 2-11336-3C 2-11336-3C 2-11336-13C

2-11336-3C

14 Hex

Bolt

R765-2070 R765-2070 R066-2330-C R066-2330-C R066-2330-C R066-2920-C R066-2620-C R066-2920-C R066-2940-C15

(4) reqd

(6) reqd

Hex Head Pipe Plug

R950-7814-S

Lubrication

Tag

15-0068-1 15-0068-1 15-0068-1 15-0068-1 15-0068-1 15-0068-1 15-0068-1 15-0068-1 15-0068-1

Hex Bolt

R765-2070 R765-2070 R066-2610-C R066-2620-C R066-2620-C R066-2920-C R066-2920-C R066-2920-C R066-2920-C

(4) reqd

(6) reqd

(8) reqd

Adjusting Screw Cover

2-0682-1

2-0760-1

2-0791-1

2-0782-1

SEAL NUT ASSEMBLY

Seal Nut Standard

(less O Rings)

2-11283-1 2-11283-1 2-11284-1 2-11284-1 2-11284-1 2-11285-1 2-11285-1 2-11285-1 2-11285-1

Inner O Ring -

(2) reqd

R520-4080-V R520-4080-V

R520-4102-V R520-4102-V R520-4102-V R520-4140-V R520-4140-V R520-4140-V R520-4140-V

Outer

Ring

R520-4115-V R520-4115-V R520-4166-V R520-4166-V R520-4166-V R520-4207-V R520-4207-V R520-4207-V R520-4207-V

ADJUSTING SCREW ASSEMBLY

Curtain Adjusting Screw

2-0724-1A

2-4890-1

2-0792-1A

2-0783-1A

Collar

N/A

2-4889-1 2-4889-1 2-4889-1 2-0794-1A 2-0794-1A

2-0785-1A

Packing

2-6563-1 2-6563-1 2-6563-1 2-6563-2 2-6563-2 2-6563-2 2-6563-3 2-6563-3 2-6563-4

Packing

Nut

2-0773-6 2-0773-6 2-0773-6 2-0773-3 2-0773-3 2-0773-3 2-0773-4 2-0773-4 2-0773-1

Adjusting Screw Knob

2-0725-1

2-0762-1

2-0793-1

2-0784-1

Collar Roll Pin

N/A

R570-4130-S

R570-4180-S

R570-4220-S

Knob Roll Pin

R570-4130

R570-4135

R570-4190

R570-4230

29 Companion

Flange

2-0855-1 2-3730-2

(2) reqd

30 Flange

Gasket

- 2-1295-4

2-1295-5

(2) reqd

31 Flange

Bolt

- R066-3750

R066-3750

(10) reqd

(12) reqd

32 Flange

Nut

- R510-2399

R510-2399

(10) reqd

(12) reqd

Ins

PartsList 1008A/1010A/1008A-C/1010A-C

Page 8
