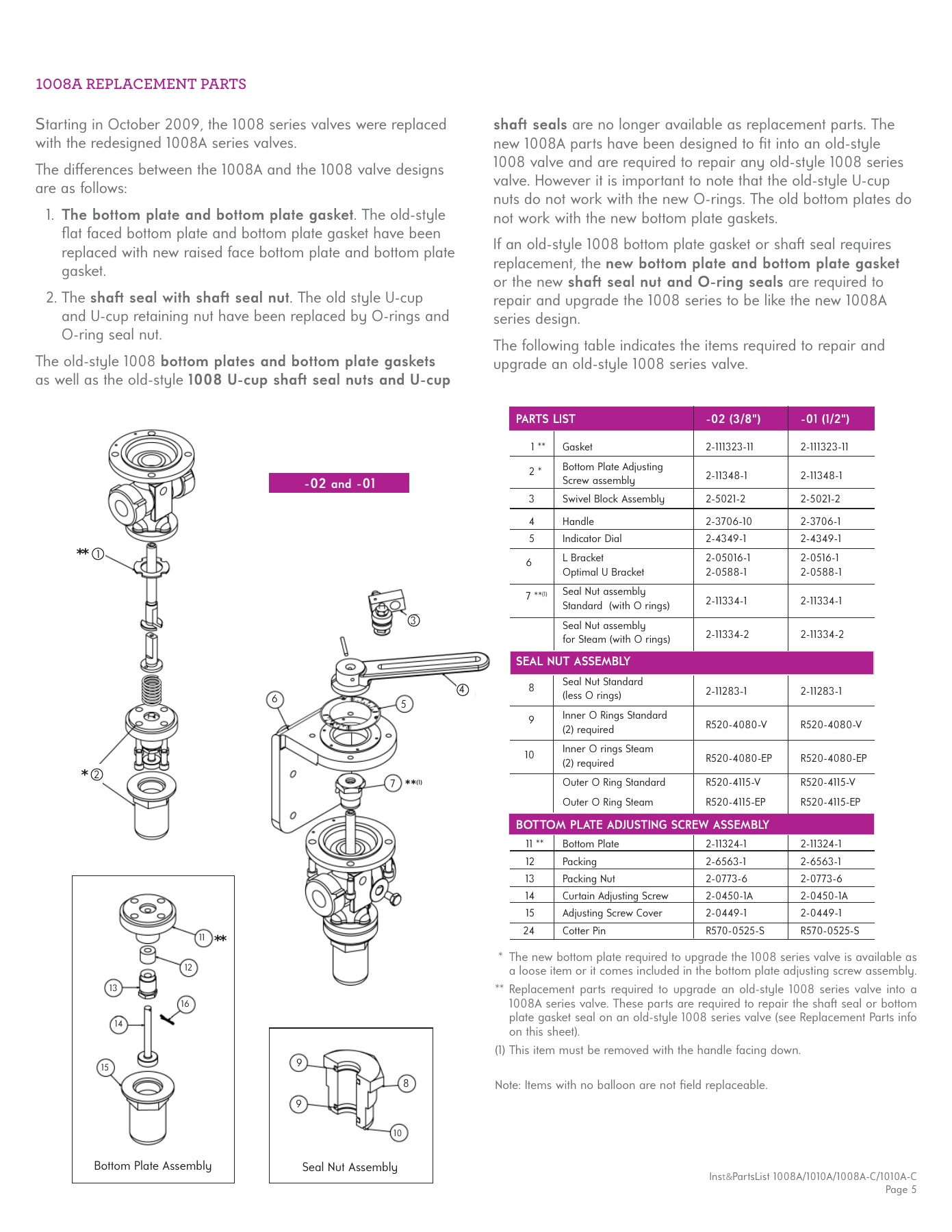

1008A REPLACEMENT PARTS



PARTS LIST

-02 (3/8")

-01 (1/2")



  1 **

Gasket

2-111323-11

2-111323-11



2 *

Bottom Plate Adjusting





Screw assembly

2-11348-1 2-11348-1

  3

Swivel Block Assembly

2-5021-2

2-5021-2

 4

Handle

2-3706-10

2-3706-1

 5

Indicator

Dial

2-4349-1

2-4349-1

   6

L Bracket

2-05016-1

2-0516-1





Optimal U Bracket

2-0588-1

2-0588-1

    7 **

(1)



Seal Nut assembly





Standard  (with O rings)

2-11334-1 2-11334-1





Seal Nut assembly





for Steam (with O rings)

2-11334-2 2-11334-2



SEAL NUT ASSEMBLY









8



Seal Nut Standard





(less O rings)

2-11283-1 2-11283-1

  9

Inner O Rings Standard

   (2)

required

R520-4080-V R520-4080-V

 10



Inner O rings Steam

   (2)

required

R520-4080-EP R520-4080-EP





Outer O Ring Standard

R520-4115-V

R520-4115-V





Outer O Ring Steam

R520-4115-EP

R520-4115-EP

 BOTTOM PLATE ADJUSTING SCREW ASSEMBLY





   11 **

Bottom Plate

2-11324-1

2-11324-1

 12

Packing

2-6563-1

2-6563-1

 13

Packing

Nut

2-0773-6

2-0773-6

  14

Curtain Adjusting Screw

2-0450-1A

2-0450-1A

  15

Adjusting Screw Cover

2-0449-1

2-0449-1

 24

Cotter Pin

R570-0525-S

R570-0525-S

S

tarting in October 2009, the 1008 series valves were replaced

with the redesigned 1008A series valves.



The diff erences between the 1008A and the 1008 valve designs
are as follows:

1.

The bottom plate and bottom plate gasket

. The old-style

fl at faced bottom plate and bottom plate gasket have been
replaced with new raised face bottom plate and bottom plate
gasket.

2. The

shaft  seal with shaft  seal nut

. The old style U-cup

and U-cup retaining nut have been replaced by O-rings and
O-ring seal nut.

The old-style 1008

bottom plates and bottom plate gaskets



as well as the old-style

1008 U-cup shaft  seal nuts and U-cup

shaft  seals

 are no longer available as replacement parts. The

new 1008A parts have been designed to fi t into an old-style
1008 valve and are required to repair any old-style 1008 series
valve. However it is important to note that the old-style U-cup
nuts do not work with the new O-rings. The old bottom plates do
not work with the new bottom plate gaskets.

If an old-style 1008 bottom plate gasket or shaft  seal requires
replacement, the

new bottom plate and bottom plate gasket



or the new

shaft  seal nut and O-ring seals

 are required to

repair and upgrade the 1008 series to be like the new 1008A
series design.

The following table indicates the items required to repair and
upgrade an old-style 1008 series valve.



*  The new bottom plate required to upgrade the 1008 series valve is available as

a loose item or it comes included in the bottom plate adjusting screw assembly.

** Replacement parts required to upgrade an old-style 1008 series valve into a

1008A series valve. These parts are required to repair the shaft  seal or bottom
plate gasket seal on an old-style 1008 series valve (see Replacement Parts info
on this sheet).

(1) This item must be removed with the handle facing down.

Note: Items with no balloon are not fi eld replaceable.

Bottom Plate Assembly

Seal Nut Assembly

**

(1)

**

-02

and

 -01

1

**

2

*

3

4

6

5

7

11

12

13

16

14

15

9

9

8

10

Ins

t&

PartsList 1008A/1010A/1008A-C/1010A-C

Page 5

Catalog Combustion 2021 - Page 1278
